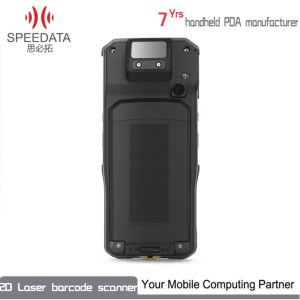

IP65 Rugged Handheld Mobile Terminal PDA with 1D / 2D barcode
scanner 1GB Memory
Cell Phone PDA Terminal Android Barcode Scanners 8GB Frash ROM IP65
Rugged Handheld Mobile Terminal PDA with 1GB Memory Capacity for
Express
KT40 is designed with an extremely cool and wonderful integrated
body frame. it also has a good quality
and performance with Aluminum-magnesium alloy firm protection in
aircraft class.
Using the latest Android 4.4.2 OS and 1.2MHz A7 quad-core
processor,
with 1GB RAM and 8GB ROM memory conbinations, that supports u an
enjoyable and smooth operating
experience.
2015 New Quad Core 1.3Ghz processorIP65 OEM by Foxconn rugged
handheld 1D/2D Scanner Industrial PDA terminal Manufacturer
Features
1. Aluminum magnesium alloy frame is made from aeronautical
material with strong protection and high quality.
2. Portable and handheld PDA for simple structure, small volume and
classical appearance with ultra-slim design (1.8 cm)
3. The creative Magnetic Absorption Charging technology with
4300mAh polymer-lithium battery, it's convenient and
impact-resistant.
Development Environment
Operating System | Android 4.4.2 |
SDK | Software Development Kit |
Language | C#, java |
Tool | Microsoft Visual Studio 2005 |
Fundamental Characteristics
CPU | ARM® Cortex-A7 MPCoreTM (LPDDR2 and LPDDR3) Quad-core 1.3Ghz |
Memory | 1GB DDR3 RAM + 8GB Frash ROM |
Storage | Micro SD/TF card max.32GB expansion |
Communications
WWLAN | GSM band 850/900/1800/1900MHz,
Class 12 GPRS,
EDGE UMTS 850/900/1900/2100MHz HSPA |
WiFi | 2.4Ghz 802.11 b/g/n |
Bluetooth | V2.1+EDR / 3.0+HS / V4.0 Low Energy(LE) |
GPS | Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN).
Support Full AGPS |
Physical Characteristics
Dimensions | 166 * 74 * 16mm (Thickest 30mm) |
Weight | ≧300g with battery (according config) |
Display | 4.5inch IPS 480 * 800 px with Multi-point touch capactive screen |
Expansion Slots | 1*Standard SIM apply GSM,GPRS,EDGE, 1*Micro SIM apply 3G |
Battery | rechargeable li-ion battery 4200mAh 3.7V |
500-hours standby time, Up to 6-hours calling time, 4-hours
charging time |
Camera | 8MP Camera |
Video | Support still image and video capture |
Audio | 3.5mm 4way plug |
Keypad | Front 23keys, Side 4keys |
Interfaces | 1*MicroSD/TF, 1*Audio Jack, 1*Micro USB, 1*Power Jack
USB Host/RS-232 interface (Customized) |
User Environment
Operating Temp. | -10 to 50℃ |
Humidity | 10%RH - 90%RH (Non-condensing) |
Protection class | IP65 |
Drop resistance level | 1.5M |
Data device Modules
RFID NFC readers
RFID NFC | RFID NFC(Compatible 13.56MHz ISO 14443A/ ISO15693) |
Barcode scanners
1D Laser scanner | Symbol SE955 (Optional 1) |
1D/2D CMOS laser scanner | Newland EM3095 -hardware decoding (Optional 1)
Symbol SE4500 (Optional 2) |
Other Options
Wireless Charging | Not ready |
Ring control barcode scanning | Not ready |
Beijing Speedata Technology Co., LTD was founded in 2008 and is listed with the stock code 832442.
1.Speedata produces Mobile computing handheld PDA terminals and industrial barcode scanners for a wide range of industries as a golden manufacturer with OEM/ODM services on Alibaba.
2.For the past 7 years, Speedata has been rapidly growing as a
high-tech enterprise of R&D, production and sales, and
furthermore, having extensive application experience in the IOT
field.
3.The head office is located in Beijing, with branch offices in
Shanghai, Shenzhen and Dalian, as well as India. There is a factory in both Beijing and Dalian.
4.We are also in successful cooperation with Foxconn. Whatever your needs, GIS, automatic identification technology or
mobile devices, our highly trained team will provide you with the
best solution.
Through establishing cooperation with software system integrators
in the IOT field, Speedata has built a complete management system including :
Logistics & Express/ transportation/electric meter readings/
Network community management/Storage & Distribution/ retail
chain/Geomatics & Surveying/product tracking/health &
pharmaceutical industry/mobile police service/ fixed-assets
management/Tobacco Logistics/ surveying and mapping/agriculture/
water conservation/animal tracking & research and petrochemical
inspection.
This list provides multi-applications and prospects among a myriad
of industries.
Speedata handheld terminal devices are adopted with flexible
configuration open platform and mainstream embedded Operating
Systems like Android and Windows CE/Mobile ; the portable data terminal integrated 1D/2D barcode scanner, LF/HF/UHF RFID reader, fingerprint reader, thermal printer, MSR, PSAM, 2.4G communication and IR meter
reading function modules etc. Unique and professional customized
service provides the best solution for our customers’ data
collecting business.
