200m/min Slitter Paper Products Manufacturing Machines Small Toilet Auto Rewind

XY-TQ-A-D High Speed Automatic Small Toilet

Paper Roll Kitchen Towel Paper Making Machine Production Line

Outline

This production line consists of Wall Type Automatic Rewinding Machine, Double Channel Log Saw and Semi-automatic Packing Machine. From jumbo roll paper into the finished rollers, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It's best choice for the producing hygienic paper products.

Video Link: https://youtu.be/LG5Bw0JlgeE

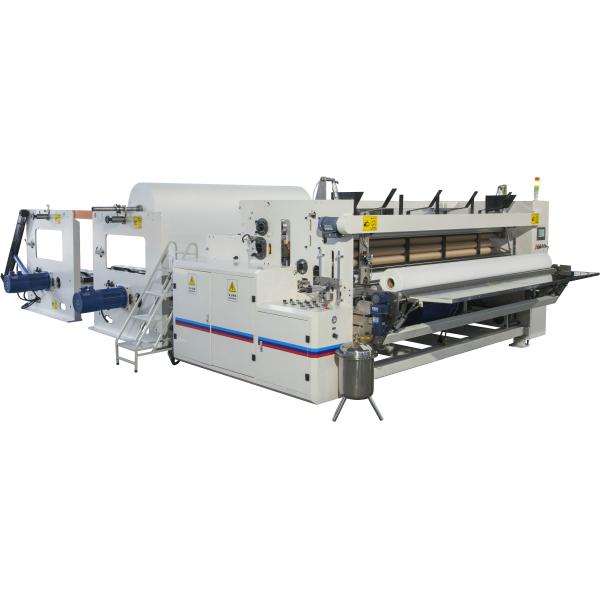

XY-TQ-B Full automatic toilet paper and kitchen towel machine
Automatic toilet paper rewinding machine is for toilet paper roll processing. Machine have core feeding unit, can do both
with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

The production process is: Unreeling - Embossing - Perforating- Lamination- Rewinding- Tail-gluing- Edge trimming---Automatic core loading.

Video Link: https://youtu.be/skfnj7zmwvY

Feature And Functions

1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy
to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.

Product Parameters

XY-AI-280 Full Automatic Double Channel Log Saw
XY-AI-280 Double Channel Log Saw Machine is used for cutting the toilet paper roller and kitchen towel paper roller, it's with high automation and efficient. Adopts advanced servo driving system, frequency conversion speed regulating, PLC control and touching screen operation.

Video Link: https://youtu.be/NyBwZpxK-a8

XY-AI-398A Semi automatic multi rolls toilet paper packing machine
This machine work with toilet paper rewinding machine, it is customized, can special made to meet different market requirements. It's easy to operate: Insert the prefabricated bag into output hole, press the jog switch, it will automatically put rolls into bag, meanwhile cutting and sealing.

Video Link: https://youtu.be/4La8KE7zwEw

Function and Features
1. Multi function: automatic conveying, single head operation, automatic feeding, automatic sealing, automatic countering.

2.Adopting the advanced PLC computer programming control and employing the liquid crystal text to display parameters, it is with simple set and water cooling control. Moreover, its temperature controlling is more precise so that heating wires and tapes with thermo stability can be protected more efficient. The machine use the servo motor to push the products to the bags, it causes to locating the products more accurately.

3. Packing and sealing are pretty and tidy. The machine can be operated with full-automation and semi-automation. The machine with conveyor can be connected with automatic toilet roll packing machine with conveyor. This allows the machine have high capacity and therefore to save the labor and reduce production cost.

4. Capacity: 8-12 bundling bag/min, 1 labor only to pack.

5. Suitable for core or coreless toilet roll. The machine cannot proofread color code automatically.

6. Comprehensive design, rigid frame, and imported major component, this allows our machine work steadily and efficiently, and therefore this makes our machine have long life.

Technical Parameters

Model	XY-AI-398A
Air supply	0.6Mpa
Power supply	4Kw 380V 50HZ
Speed	8-12 bundling bag/min
Single roll size	Diameter:Ø90-120mm Height:90-140mm
Bundling Size(L*W*H)	(360-650)*(180-240)*(90-140)mm
Machine size(L*W*H)	5000*1000*1500mm

After Sales Service

Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours.
For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance.
We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if need).
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.

Company Profile

Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.

Company Introduction:

Fujian Xinyun Machinery Development Co., Ltd is located in Quanzhou City, Fujian Province in China. It's a professional manufacturer of toilet paper machine, napkin paper machine, facial tissue machine, hand towel paper machine, pocket tissue machine, all kinds of tissue paper cutting machine and packing machine, complete production line etc. We have our own processing center to guarantee the quality of machine and quickly delivery,advanced technology, convenient operation, good in quality and cheap in price, products are exported to South America(like Chile, Argentina, Peru etc), Africa ( like Egypt, Nigeria , South Africa, etc ), Middle East(Like Saudi Arbia, Iran,Iraq, Kuwait and etc.), Europe (like Spain, Romania, Greece etc) and so on, praised by the majority of users.

Our Product Range:

We're glad to supply the solutions and new technical in paper machine field, these years we committed to the development of high-quality, high efficiency, energy saving, environmental protection new products, service in paper making machinery industry, is a collection of scientific research, production in one of technology enterprise. If you're interested in developing your own paper machine factory or you need to know how to start tissue paper business, welcome to contact us, we will recommend you suitable machines with reasonable price What's more, we will help customers to arrange shipment and send engineer to customer's factory to install machines and train workers. We are willing to work with customers at home and abroad to create brilliant. Fujian Xinyun Machinery Development Co., Ltd invites & welcomes customers to visit China and our company!
