110mm Dia Drinking Water Filling Machine 12000BPH SUS316L 200ml

    Buy cheap 110mm Dia Drinking Water Filling Machine 12000BPH SUS316L 200ml from wholesalers

    Buy cheap 110mm Dia Drinking Water Filling Machine 12000BPH SUS316L 200ml from wholesalers
    • Buy cheap 110mm Dia Drinking Water Filling Machine 12000BPH SUS316L 200ml from wholesalers
    • Buy cheap 110mm Dia Drinking Water Filling Machine 12000BPH SUS316L 200ml from wholesalers

    110mm Dia Drinking Water Filling Machine 12000BPH SUS316L 200ml

    Ask Lasest Price
    Brand Name : Aquatrin
    Model Number : CGF
    Certification : ISO CE
    Price : USD15000-60000 1Set
    Payment Terms : T/T
    Supply Ability : 10units per month
    Delivery Time : 45days
    • Product Details
    • Company Profile

    110mm Dia Drinking Water Filling Machine 12000BPH SUS316L 200ml

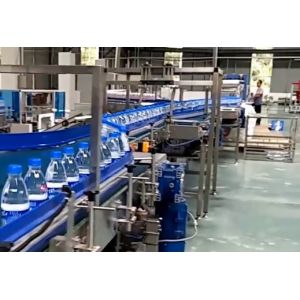

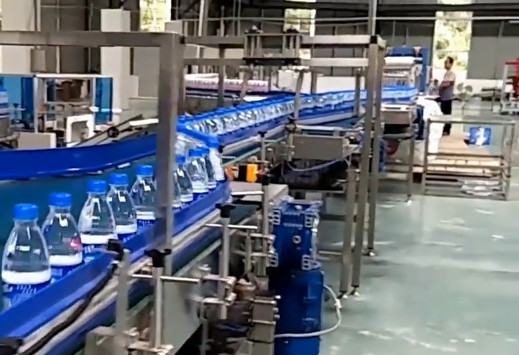

    water filling line

    Drinking Water Washing Filling Capping 3 in 1

    This Drink water bottle filling machine / equipment / production line used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery.Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
    WATER LINES FLOW CHART
    Washing parts of water filling machine
    1.Using unique design,avoid the traditional bottle on rubber clip to block the bottle threaded parts may be caused by the pollution.
    2.Washing pump is made of stainless steel.
    3. By high spray nozzle, blunt bottle of water jet angles, flush to the bottle of any part of the inner wall, rinse with water thoroughly and save flush bottle.
    4. Bottle clamp and flip agencies sliding sleeve adopts Germany igus corrosion resistant bearing without maintenance.

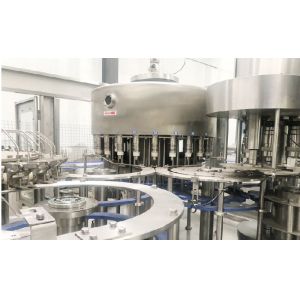

    Filling parts of water filling machine
    1.Filling method for gravity filling.
    2.Filling valve manufactured SUS 304/316L.
    3.High precision, high speed liquid filling.
    4.Filling move by the rack drive system through gear transmission.
    5.Hydraulic cylinder controlled by a float liquid level.
    6.Using the latest double guide pillar type bottle of lifting mechanism, avoid the bottle of elevating the old products must be through the mesa caused by leakage on the edge, at the same time, easy installation and maintenance.
    Capping parts of water filling machine
    1.Automatic check,no bottle no capping.
    2.Capping heads in stainless steel 304/316L.
    3.Capping heads stop working when lack of bottle.
    4.Fall guy guide sets out to prevent the cover through and cover on the body, at the same time equipped with a set of photoelectric switch, automatic stop when lighted cover rail without cover machine, can effectively avoid the occurrence of open bottle.
    5.High efficiency centrifugal principle.

    Main Features

    The machine adopts advanced SIEMENS programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectric inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.
    Product Paramenters
    Model
    Capacity
    Rinsing heads
    Filling heads
    Sealing heads
    Overall dimensions
    CGF14-12-5
    6000BPH
    14
    12
    5
    2400*1900*2800mm
    CGF16-16-5
    8000BPH
    16
    16
    5
    2500*1900*2200mm
    CGF18-18-6
    10000BPH
    18
    18
    6
    2800*2050*2200mm
    CGF24-24-8
    13000BPH
    24
    24
    8
    3100*2450*2800mm
    CGF32-32-10
    16000BPH
    32
    32
    10
    3700*2750*2900mm
    CGF40-40-10
    19000BPH
    40
    40
    10
    4300*3300*2900mm
    CGF50-50-12
    21000BPH
    50
    50
    12
    5200*3700*2900mm
    CGF60-60-15
    25000BPH
    60
    60
    15
    6300*4400*2900mm
