Complete Plant Line Pure Drinking Water / Spring Water Plant Price

Name: Complete Plant Line Pure Drinking Water Spring Water Plant Price
Brand: Aquatrin
Price: 15000 USD

Ask Lasest Price
Brand Name :	Aquatrin
Model Number :	CGF
Certification :	ISO CE
Price :	USD15000-60000 1Set
Payment Terms :	T/T
Supply Ability :	10units per month
Delivery Time :	45days

Add to Cart

Product Details
Company Profile

Complete Plant Line Pure Drinking Water / Spring Water Plant Price

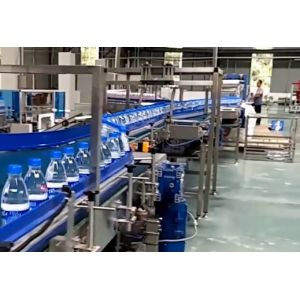

1.The mineral water production line use direct connection technology between air conveyor and in-feeding star-wheel to substitute in-feeding screw and conveyor to ease the process of bottle-size-changing.

2. Neck-hanging technology is applied in bottle transportation of the automatic water filling machine. Instead of traditional star-wheel, we use neck-hanging gripper to make bottle-size-changing easily , without equipment height adjustment ,only arch board and star-wheel such little nylon parts need to be changed.

3. Specially-designed rinsing grippers which are made of stainless steel are firm and endurable, with no contact to screw part of the bottle to prevent second pollution in this automatic water filling machine.

4. Rapid gravity filling valve with high flow makes filling faster with accurate liquid level and without any liquid loss.

5. Splint of star-wheel using twist descending way to simplify the process of bottle-size-changing.

Technical parameters:

Mode	CGF14-12-5	CGF16-16-6	CGF18-18-6	CGF24-24-8	CGF32-32-10	CGF40-40-12	CGF50-50-15	CGF60-60-15
Production capacity(B/H)	2000-3500	3500-5000	5000-7000	7000-12000	12000-15000	15000-20000	20000-24000	24000-30000
Suitable bottle shape	Circular or Square
Bottle diameter(mm)	Φ50-Φ95
Bottle height(mm)	150-310
Washing medium	Aseptic Water
Total power (kw)	3	3.5	4	5.5	7.5	11	15	20
Weight (kg)	2200	2800	3000	4500	6000	9000	15000	18000
Overall dimensions(mm)	205015502200	240017502200	255018502200	300021502200	420027002400	470032002400	650033502400	7200*365

Water Filling Machine

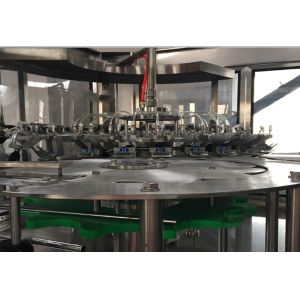

washing part

PET bottles infeed by combination of infeed grippers, equipped with bottle jam protection device, the machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck postion, avoiding bottle mouth thread comtamination caused by rubber gripper block of a traditional bottle clamp. This part is made of SUS304 stainless steel, the bottle clamp is hygienic and durable.

The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and aso saves rinsing water.
All sliding bushes of lifting device use anti-corrosion maintenance free bearing and the rinser is driven by driving system positioned inside machine frame via gear transmission.

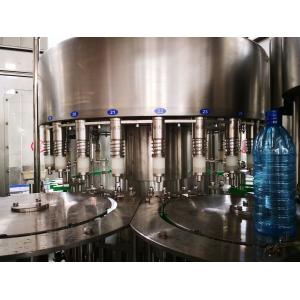

03 - Filling Parts.

- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after
filling
- All 304/316 stainless steel contact parts & liquid tank, fine
polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for
flushing

capping part

Capper should have highest precision, influence very much with stability and realiable of the filling monoboc. Our capper

features as follows:

Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
The capper is equipped with inlet bottle detection switch.
Centrifugal way of cap arranging is adopted to reduce damage of caps.
A cap inspection system is applied to control on-off of elevator.
