    Aluminum Nero IP66 Waterproof LED Street Light Bulb easy maintenance

    Ask Lasest Price
    Brand Name : FYTLED
    Model Number : T68B
    Certification : ENEC, CB, TUV, CE, RoHS, SAA, RCM
    Payment Terms : T/T, L/C
    Supply Ability : 5000PCS per month
    Delivery Time : 12-15 working days
    • Product Details
    • Company Profile

    Aluminum Nero IP66 Waterproof LED Street Light Bulb easy maintenance

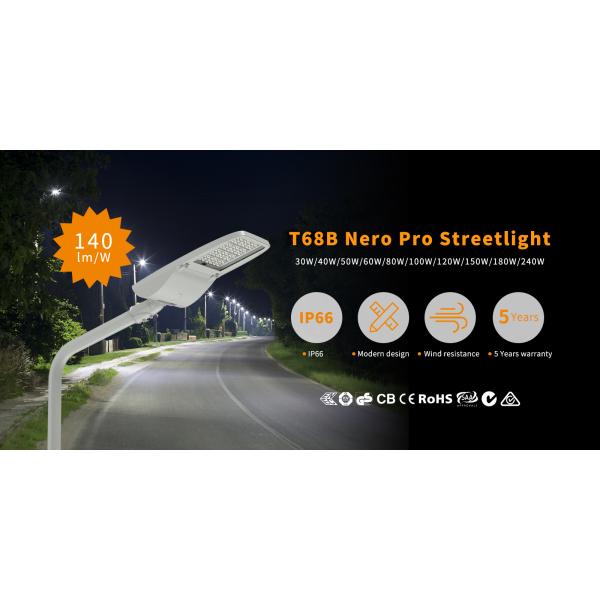

    IP66 ENEC Nero Pro streetlight 30W-240W tool-free access to maintenance

    The Nero Pro T68B street light is available from 30W to 240W with tool-free access design to the driver compartment for easy maintenance. High lumen efficiency helps to spare the energy consumption. The Nero Pro T68B street light offers common beam angles for double carriage ways and triple carriage ways. It is IP66 approved for outdoor applications.


    Features

    • Tool free access to the independent driver compartment(easy maintenance e.g. driver replacement)
    • ±15° adjustable installation angle for different light distribution demands(each 5° to maximum ±15°)
    • IP66 approved for outdoor lighting
    • Cost effective solution to afford various projects
    • 5 years warranty
    • lumen efficiency reaching max. 140lm/W

    Options
    • 10KV/20KV surge protection device(SPD)
    • Curcuit interrupter(When lamp is opened for maintenance, the power will be cut off automatically to ensure the safety of the technician)
    • Coating/painting brand "AkzoNobel"(for seashore project)
    • Class II luminare
    • 3pin, 5pin, 7pin NEMA base
    • Microwave motion sensor
    • Photocell daylight sensor
    • Photocontroller
    • 1-10V dimmable
    • DALI dimmable
    • Level meter
    Area of application
    • Road and street

    Basic Specifications

    ModelNominal Wattages (W)Nominal VoltageRated luminous efficacy(lm/w)Nominal luminous flux(lumen)Beam AngleLED QuantityCRI
    T68B-30W30WAC100-277V 50~60Hz140±104200±300T2-S
    T3-M
    12pcs 5W EMC5050>70
    T68B-40W40W5600±40012pcs 5W EMC5051
    T68B-50W50W7000±50012pcs 5W EMC5052
    T68B-60W60W8400±60024pcs 5W EMC5050
    T68B-80W80W11200±80024pcs 5W EMC5050
    T68B-100W100W14000±100036pcs 5W EMC5050
    T68B-120W120W16800±120048pcs 5W EMC5050
    T68B-150W150W21000±150048pcs 5W EMC5050
    T68B-180W180W25200±180080pcs 5W EMC5050
    T68B-240W240W33600±240080pcs 5W EMC5050

    Electrical dataPhotometrical data
    Operating frequency47-63HZAvailable light colorswarm white; natural white; cold white
    Type of currentAC100-277VAvailable color temperatures3000K; 4000K; 5000K; 6000K
    Power factor λ>0.9Color rendering index Ra>70
    Efficiency in %>92%Standard deviation of color<5
    matching
    Start time (0.2s / 0.5s / … )0.1SUGR (Unified Glare Rating)<28
    Warm-up time to 60 % (1.5s / 2s / … )0.5SAvailable beam anglesTYPE2-S TYPE3-M

    Standards & CertificationTemperatures & operating conditions
    Type of protectionIP66Heatsink temperature-20~+69℃
    Tested dielectric strength3.75KVacAmbient temperature-30~+50℃
    Safety featuresOpen circuit protection;Storage temperature-40~+80℃
    Short circuit protection ;
    Overvoltage protection
    CertificatesENEC, CB, CE, RoHS, SAA, RCM
    Energy efficiency classA+&A++

    LifespanFeatures/Capabilities and additional product data
    Rated nominal Lifetime5 yearsBase/Socket42 60 76
    Switching cycles100,000 timesDimmable1-10V dimmable, DALI dimmable
    Lumen maintenance at e.o.l.70%

    Packing Information
    ModelDimensionCTN SIZE(CM)QTY/CTNNet Weight/pcs(kg)Gross Weight/CTN(kg)
    T68B-30W/40W/50W530*165*125MM65*25*221PCS2.983.9
    T68B-60W/80W575*215*125MM69*29*221PCS5.126.25
    T68B-100W625*270*125MM74*34*221PCS7.88.85
    T68B-120W/150W625*270*125MM74*34*221PCS8.49.55
    T68B-180W680*320*125MM80*39*221PCS14.316.2
    T68B-240W680*320*125MM80*39*221PCS14.816.7


    FAQ

    1. Q: Where is your target market?

    A: Europe is our main market, followed by North America, Asia, Australia and South America have our customers. Our products have CE, Rohs, TUV, ENEC, UL, CUL, DLC, SAA and other certifications, I believe it can meet your needs.


    2.Q: What is your MOQ?

    A: We support purchasing samples to check the quality. When you buy samples, MOQ is 1pcs.


    3.Q: How long is the sample production time?

    A: About 4-7days. But if you want a special sample, it will need some times to make the mold.


    4.Q: What is the Payment?

    A: For new customers,usually we adopt the T/T, and we have 2 ways:
    1) T/T 100%

    2)30% advance deposit, the Balance should be paid off before shipment.
    As our cooperation deepens, we can discuss other payment terms


    5.Q:How long is the delivery time?

    A:About 10-14 days
