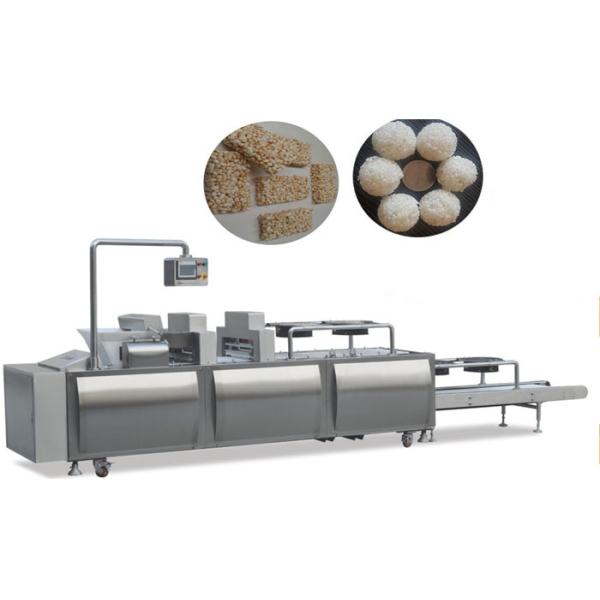

Granola peanuts sesame rice mixing Bar forming line SUS304 material
MK-65 Rice Bar Making Machinery can produce all kinds of shapes of
cereal bars with the raw material of rice, millet, wheat, highland
barley, fagopyrum tataricm Gaertn, maize, broomcorn, Chinese pearl
barley, buckwheat, etc.
Features
1.
| The shapes can be round, cylindrical, square, semi round,
triangular and blossom, etc. |
2.
| Mechanical pressing & rubbing, does not hurt nuts, without waste. |
| 3. | Mechanical driving, accuracy positioning, upper and nether moulds
tight fit, makes super cereal bar shaping. |
| 4. | Using high performance frequency inverter, easy adjust speed, high
efficiency, it can produce 24-hour continuously. |
| 5. | Moulds and hopper are both non-sticky processed. All the parts may
contacts food are all non-toxic material, oil and high temperature
resistance. |
| 6. | Cooling conveyer can be customized as demand. |
Technical Parameters for Cereal Bar Forming Machine
| Output | 5000-30000pcs/hr |
| Power | 2.5kw |
| Product max thickness | 2cm |
| Mould size | 640 x 126mm |
| Effecitive mould size | 540 x 126mm |
| Weight | 1200kg |
| Dimension | 5300 x 965 x 1850mm |
Full information for Each Equipment as below:
1.Sandwich Pot (200L)
Characters:
Has large heating area, high thermal efficiency, even heating,
liquid material boiling, time is short, easy to control the heating
temperature etc..
Technical parameters:
Voltage:380V
Power:15kw
Volume:200L
Inner diameter of the boil:840mm
Outline dimension:905*990*1470mm
2.Mixer
Power:1.1kw
Voltage:380V/50HZ
Outline dimension:700*500*1200mm
Mix capacity:15KG/time
3.Full automatic cereal bar forming machine
This machine are suitable for flatting and cutting the muesli
bar.Easy to operation.
Characters:
1.Frequency control,flatting and cutting for one time
With With multiple level structure, pressed flat, uniform thickness
2.With multiple flat structure,pressed flat,uniform thickness
3.Automatic cutting ,Time saving, labor saving, economical and
convenient
Technical parameter:
Power:4kw
Voltage:380V/50Hz
Outline dimension:11800*1200*1200mm
Capacity:300kg/h
Automatic cutting ,Time saving, labor saving, economical and
convenient If you need to change another width size, only change
the cutter shaft is ok
Commissioning & After-sales Service
1. We make accurate factory layout design according to customer’s
factory size; if the customer needed, we could make workshop design
with electricity power, water supply, gas power, materialstorage,
final storages, worker’s restroom, etc.
2. After delivering machines to client’s factory, we start to apply
for the Visa to client’s country
immediately; normally the vessel needs 20-60 days to the required
port, so we have enough time toget the Visa. While the machines
arrives your factory, our engineers are ready to start for the
commissioning service.
3. 1-2 of our engineers will go to your factory to install and
adjust the processing line to realize normal production at shortest
time.
4. Our engineers have responsibility to train and teach the workers
how to operate, clean, maintain and repair all the machines, until
the workers could well operate the processing line.
5. It normally costs 10 days for the commissioning service, and we
supply 1 year guarantee from the date of completion of
commissioning service.
6. The engineer’s round-trip flight tickets, accommodation and
daily salary USD 100 are on client’s account.
Machinery Show
