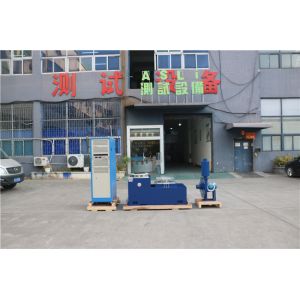

Vibration Test Table Electrodynamics Laboratory Vibration Shaker For 3 Axis Sine Testing

Application about Automatic bearing Vibration testing machine

High Frequency Vibration Tester adopted the 'double-magnetic circuit structure','self-generated skeleton action circles', 'Airborne Support' and 'roller bearings and linear guidance','trunnion isolation' advanced modern technology and special technology, can be completed in X, Y, Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, sawtooth wave) pulse and shock response spectrum test. It widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.

Vibration System( ES-6 ) with 3-axis electrodynamic vibration testing machine

Technical parameters with ista used vibration testing equipment

(1) Rated Force: sine force 3000N; random force 3000N; shock force 6000N;

(2) Frequency Range: 3Hz to 3500Hz, Fixed frequency, sweep back and forth, sine, random, shock

(3)Sweep-frequency Mode: linear, logarithmic, sweep back and forth, fixed frequency

(4)Sweep-frequency Times: 1 to 32767

(5)Sweep-frequency Time: fixed frequency/single 1-3600mins, sweep-frequency curves can be displayed.

(6)Max. Acceleration1000m/s² (non load)

(7)Max. Speed: 1.6m/s

(8)Max. Displacement:25mmp-p (non load), double peak

(9)Impact Displacement: 25mm

(10)Weight of Moving Coil: 3.5kg

(11)Vibration Directions: vertical & horizontal

(12)Vibration Wave: sine, random, shock

(13)Diameter of the Moving Coil: Φ150 mm

(14)Vibration System Dimension: W950XH800xD650 mm

(15)Vibration System weight: 750KG

Power

AC380V 50/60Hz 3ph5 Lines;

Install Requirement

(1)Users should prepare forklifts & shifting tools for moving the equipment as it is very heavy, also please be sure the door is big enough to let in the equipment

(2)The operating environment of the machine should be under room temperature and with good ventilation.

We strongly suggest to install air conditioner in the working area. The space distance of the machine’s

left/right/back side must be Min. 700mm, the front must be Min. 1500mm.

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 25 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.vibration test machine is our star products, and we had obtained the CE certification for this machine.
