Electric Heavy Loads Material Handling Equipment Customized

    Buy cheap Electric Heavy Loads Material Handling Equipment Customized from wholesalers

    Buy cheap Electric Heavy Loads Material Handling Equipment Customized from wholesalers
    • Buy cheap Electric Heavy Loads Material Handling Equipment Customized from wholesalers
    • Buy cheap Electric Heavy Loads Material Handling Equipment Customized from wholesalers
    • Buy cheap Electric Heavy Loads Material Handling Equipment Customized from wholesalers
    • Buy cheap Electric Heavy Loads Material Handling Equipment Customized from wholesalers

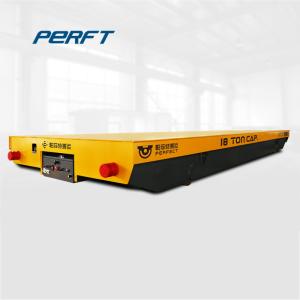

    Electric Heavy Loads Material Handling Equipment Customized

    Ask Lasest Price
    Brand Name : electric transfer transport cart on rail
    Model Number : electric transfer transport cart on rail
    Certification : CE ISO SGS
    Price : USD 2000~8000 set
    Supply Ability : 100 sets month
    Delivery Time : 20 work days after received balance payment
    • Product Details
    • Company Profile

    Electric Heavy Loads Material Handling Equipment Customized

    electric Heavy Loads Transportation for heavy material handling equipment


    Introductions


    Henan Perfect Handling Equipment Co., Ltd. is specializing in the design and manufacture of heavy material transport system to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Battery Operated Transport Trolley, Coil and pipes Carrier Equipment, Ladle Handling Equipment, Hydraulic Lift Table, Turntables and many other specialty items.Our line of Industrial Transfer Carts are designed and manufactured to accommodate the needs of a wide range of industries including Steel, Aluminum, Automotive, Heavy Manufacturing and others. These material handling equipment are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.


    Application


    Uses of heavy industrial transfer carts:
    For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.


    Technical Parameters
    Model2t20t50t100t150t
    Rated Load(t)22050100150
    Table Size(mm)Length(L)200040005500650010000
    Width(W)15002200250028003000
    Heigth(H)4505506508501200
    Wheel Base(mm)12002800420049007000
    Rail Inner Gauge(mm)12001435143520002000
    Wheel Diameter(mm)270350500600600
    Wheel Quantity44448
    Ground Clearance(mm)5050507575
    Running Speed(min)2520202018
    Motor Power(kw)0.82.55.51115
    Max Wheel Load(KN)14.477.7174343.8265.2
    Reference Weight(t)2.35.57.613.926
    Recommended Rail ModelP15P24P43QU100QU100

    Package of electric transfer transport cart
    Our electric transfer transport cart on rail not only have sold across the country, but also exported to US, Germany, Thailand, Netherlands, South Africa, Syria, Turkey, Nepal etc. The electric transfer transport cart on rail body is packed with tarp, and the wheel and parts of the Rail Electric Vehicle will be packed with wooden case. According the table size and quantity, the electric transfer transport cart on rail would be transported to clients by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.

    electric transfer transport cart on rail


    Why chose us?


    We have got CE, SGS, ISO, CO certificates about our products, and our products have been exported to more than 30 countries and regions.


    Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-1300 tons, our main products including BDG conductor rail equipment, BJT cable drum type, BHX safety sliding line type, BXC battery type, BTL towed cable type, BP non-power type, BQY train towed type, BWP trackless type and special type, such as turning cart, trackless cart, ladle car, hydraulic lifting car, ferry car, painting room car, blasting booth car, etc.
