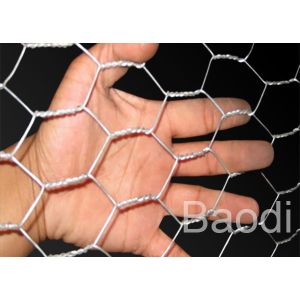

3' X 100' Roll Chicken Wire Mesh Fencing 1.5" Mesh Opening Zinc
Plated
Introduction of Chicken Wire Mesh Fencing
1. Material: low caron iron wire, mild steel wire |
| 2. Surface Treatment: Electro galvanized or hot dipped galvanized
(HDG), then plastic coated. |
3. Hole Pattern: Hexagonal hole shape |
| 4. Wire Gauge: 18 - 22 |
| 5. Mesh Opening: 1.5" |
| 6. Roll Size: 3' X 100' |
► Chicken Wire Mesh is also named poultry mesh or hexagonal wire
mesh.
► The mesh opening is available in 1/2" to 3". It's available in
various wire diameters 0.45mm to 1.4mm.
► It is used in garden for small bird protection, or as poultry or
small animals housing.
► Chicken wire mesh is mainly used in the garden for bird
protection. In which,
13mm hole is used to make fruit cages and sculpture, 25-50mm hole
for poultry enclosures,
garden borders and bird protection, 31mm-50mm hole for rabbit
protection.
Feature:
1. Wires resist movement
2. Extensive use
3. Uniform hexagonal pattern
4. Firm structure
5. Smooth surface
Fencing Chicken Wire Mesh Usage:
- Used to fence poultry livestock, such as chickens, rabbits.
- Used to build inexpensive cages for small animals, or to protect
plants and property from animals.
- Safety fences for zoos, keeping chickens, ducks and rabbits
- Machinery and equipment protection
- Highway guardrail and sports fences
- Fences for road green belt protection
Types of Chicken Wire Mesh:
| 1. Glvanized chicken wire mesh |
| 2. PVC coated green wire netting |
| 3. Stainless steel wire netting |
Weaving Methods:
- positive twisting
- reverse twisting
- double twisting
- weaving before galvanizing
- weaving after galvanizing
Quick Detail of Chicken Wire Mesh
Chicken Wire Mesh Fencing in straight twist
| In inch | Wire Gauge(SWG) | Wire Diameter | W XL | Weight(kg/roll) | Diameter/Roll(mm) |
| 1/2 | 22 | 0.71mm | 3'x100' | 15.00 | 150 |
| 1/2 | 23 | 0.62mm | 3'x100' | 11.50 | 150 |
| 1/2 | 24 | 0.56mm | 3'x100' | 09.30 | 140 |
| 1/2 | 25 | 0.51mm | 3'x100' | 07.50 | 130 |
| 5/8 | 22 | 0.71mm | 3'x100' | 13.00 | 150 |
| 5/8 | 23 | 0.62mm | 3'x100' | 10.00 | 140 |
| 5/8 | 24 | 0.56mm | 3'x100' | 08.10 | 130 |
| 5/8 | 25 | 0.51mm | 3'x100' | 06.70 | 120 |
| 3/4 | 21 | 0.81mm | 3'x100' | 14.80 | 170 |
| 3/4 | 22 | 0.71mm | 3'x100' | 11.00 | 160 |
| 3/4 | 23 | 0.62mm | 3'x100' | 08.70 | 150 |
| 3/4 | 24 | 0.56mm | 3'x100' | 07.10 | 140 |
| 3 | 19 | 1.01mm | 3'x100' | 06.00 | 170 |
| 3 | 20 | 0.91mm | 3'x100' | 05.00 | 160 |
Chicken Wire Mesh Fencing in reverse twist
| In inch | Wire Gauge(SWG) | Wire Diameter | W XL | Weight(kg/roll) | Diameter/Roll(mm) |
| 3/2 | 18 | 1.20 | 3'x100' | 17.00 | 200 |
| 3/2 | 19 | 1.01 | 3'x100' | 12.00 | 170 |
| 3/2 | 20 | 0.91 | 3'x100' | 09.70 | 160 |
| 3/2 | 21 | 0.81 | 3'x100' | 07.70 | 145 |
| 3/2 | 22 | 0.71 | 3'x100' | 06.00 | 140 |
| 2 | 18 | 1.20 | 3'x100' | 12.00 | 180 |
| 2 | 19 | 1.01 | 3'x100' | 08.50 | 170 |
| 2 | 20 | 0.91 | 3'x100' | 07.00 | 150 |
| 2 | 21 | 0.81 | 3'x100' | 05.50 | 145 |
| 2 | 22 | 0.71 | 3'x100' | 04.30 | 140 |
| 3 | 18 | 1.20 | 3'x100' | 08.80 | 170 |
