Durable Rubber Pads for Steel Tracks / Black Color Rail Base Part
ZHONGYUE have been supplying track support products to the rail
industry for many years.
Manufactured in avariety of natural and synthetic elastomers,
ZHONGYUE railpads are designed to withstand the most demanding
operating environments.
ZHONGYUE railpads offer the following benefits:
1. Dramatically Improved Impact
2. Attenuation Noise Suppression
3. Improved Passenger Comfort
4. Extended Track Life
5. Extended Ballast Life
ZHONGYUE in a joint initiative with a major world producer of rail
track fastening systems analysed and
developed a resilient pad concept to protect concrete rail sleepers
from damage caused by the dynamic
forces of passing trains. The result was the Patented Studded
railpad.
Over 45 Million of these rail pads are now used successfully
Worldwide, including the USA, Canada,
Australia, Norway, Sweden, Denmark, Belgium, France, Georgia,
Lithuania, Hong Kong, Japan, Korea,
Czech Republic, Uzbekistan, Syria, Singapore, Sudan, Estonia,
Finland and extensively within the UK.
The combination of studded design and specially formulated rubber
compound, gives SUYU patented
rail pads a unique high resilience and abrasion resistance.
Their superiority to those manufactured from other materials has
been proven by their ability to reduce
dynamic forces by up to 65%, which is a crucial consideration for
railway systems worldwide as they adopt
higher speeds and greater axle loads.
Material
Test Report of Rubber (EPDM)
Product | EPDM |
Specification | EP00179 |
No. | Item | Test Method | Required Value | Test Value |
1 | Shore Hardness | D-2240 | 60±5 | 64 |
2 | Tensile Strength(Mpa) | D-412 | ＞1.25 | 14.4 |
3 | Elongation at Break(%) | D-412 | ＞280 | 288 |
4 | Permanent Compression Set
(%) | D-395 | 28 | 28 |
5 | Tear Strength(KN/M) | D-624 | / | 43 |
6 | Operating Temperature |
|
| -30C-100C |
HDPE Properties
No. | Items | Unit | Technical Requirements | Actual Data |
1 | Density | g/㎝3 | 0.95-0.98 | 0.95 |
2 | Tensile | Mpa | ≥19 | 19 |
3 | Elongation | % | >80 | 150 |
4 | Melting Point | ℃ | 170-190 | 190 |
5 | Insulation Resistance | Ω | ≥1×1010 | 3.5×1010 |
6 | Hardness | A | ≥98 | 98(A) |
Product Photos
Similarity
Working room
Application
Quotation necessity ( the more, the better )

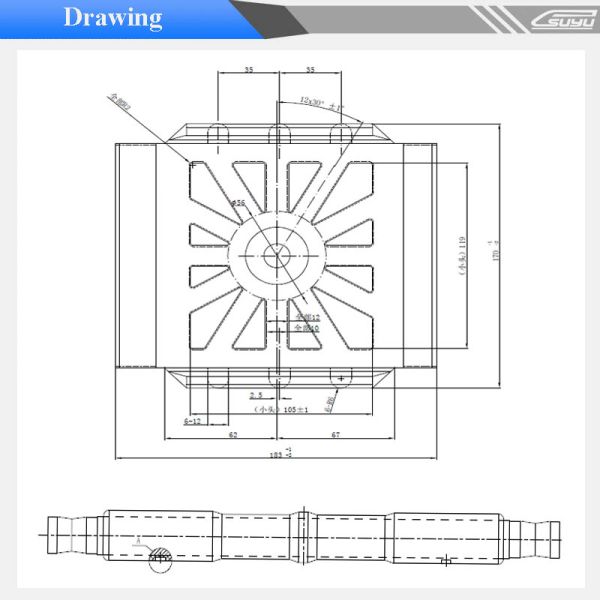

- Drawing with full size
- Material
- Order quantity
Sale Rang
- Rail fastening system
- Dog spike; Screw spike
- Bolt set
- Elastic clamp
- Rail anchor
- Rail shoulder
- Fish plate
- Tie plate
- Plastic
- Rubber parts
- Brake shoe
- Steel rail
- New wood sleeper
If you have any other models of rail/ rail fastener, welcome to
contact me.
