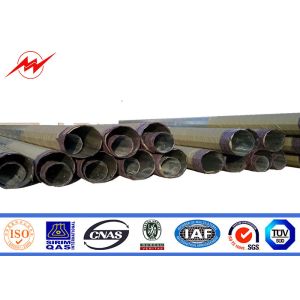

    33 Kv Tower Electric Galvanized Tubular Steel Pole 10-220kv Transmission Power Line

    Ask Lasest Price
    Brand Name : MilkyWay
    Model Number : Steel Tubular Pole
    Certification : ISO9001/BV/
    Price : Negotiation
    Payment Terms : T/T, L/C at sight
    Supply Ability : 300pcs per day
    Delivery Time : 20 working days after received your payment
    • Product Details
    • Company Profile

    33 Kv Tower Electric Galvanized Tubular Steel Pole 10-220kv Transmission Power Line

    33kv tower electric galvanized 10-220kv transmission power line steel tubular pol


    Steel
    The material is in accordance with NF EN 10025
    Standard and NF EN 10149 Standard,it has the following property.
    -Yield Strength=355N/mm2
    -Toughness remains the same under 20 degrees below zero.
    -Galvanization is in accordance with NFA35503 Standard Class 1.


    Manufacture Tolerance
    -Component Length:-25mm to 75mm
    -Straightness:2mm/m
    -Twisting degree:1°per 3 meters length
    -Ovalisation:Maximum is 3%
    -The average diameter:+/-0.5%
    -Slip length:+/-150mm


    Specification:


    Suit forElectricity distribution
    ShapeConoid ,Multi-pyramidal,Columniform,polygonal or conical
    MaterialUsually Q345B/A572,minimum yield strength>=345n/mm2
    Q235B/A36,minimum yield strength>=235n/mm2
    As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
    SS490, to ST52-
    Torlance of the dimenstion+- 2%
    Power10 KV ~550 KV
    Safety FactorSafety factor for conducting wine : 8
    Safety factor for grounding wine : 8
    Design Load in Kg300~ 1000 Kg appliced to 50cm from the to pole
    MarksNane palte through rivert or glue ,engrave ,emboss as per customer requirement
    Surface treatmentHot dip galvanized Following ASTM A 123,
    color polyester power or any other standard by client required
    Joint of PolesInsert mode,innerflange mode,face to face joint mode
    Design of poleAgainst earthquake of 8 grade
    Wind Speed160 Km/Hour . 30 m /s
    Minimum yield strength355 mpa
    Minimum ultimate tensile strength490 mpa
    Max ultimate tensile strength620 mpa
    StandardISO 9001
    Length of per sectionWithin 14m once forming without slip joint
    WeldingWe has past flaw testing.Internal and external double welding makes
    the welding beautiful in shape
    Welding Standard :AWS ( American Welding Society ) D 1.1
    Thickness1 mm to 30 mm

    Welding
    We have past flaw testing. Internal and external double welding makes the welding beautiful in shape
    Welding Standard :AWS ( American Welding Society ) D 1.1


    1.Q: Can you do OEM for me?

    A: We accept all OEM orders,just contact us and give me your design,we will offer you a reasonable price ASAP.


    2. Q: Can you do design for me?

    A: We have experienced designers,According to your requirement, we can ass your company logo,website,phone number or your ideas on paper box.Just give me your ideas,let us do it for you.


    3. Q: When can I get the quotation

    A: We usually quote you within 24 hours after we get your inquiry.If you are very urgent to get the quotation,please call us or tell us in mail,so that we could regard your inquiry priority.


    4. Q: How about the delivery date?

    A: For normal items delivery time is 25-35 days


    5. Q: Which payment way is workable?

    A: T/T,L/C at sight etc.

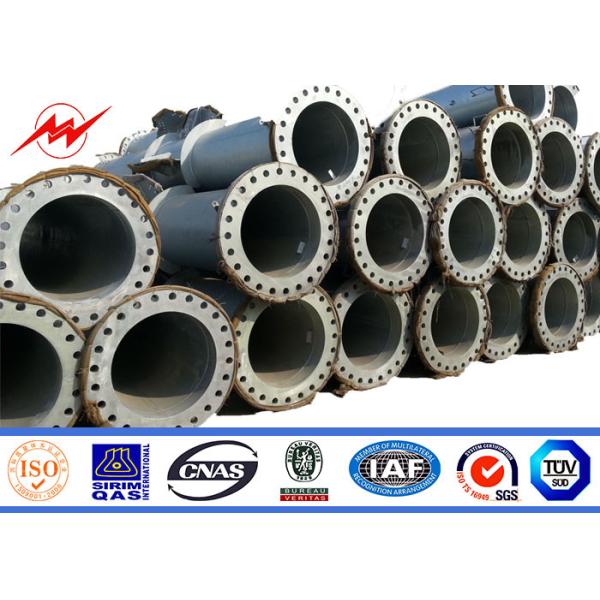

    Quality 33 Kv Tower Electric Galvanized Tubular Steel Pole 10-220kv Transmission Power Line for sale
