    Single Side Lighting 35M HDG High Mast Park Light Pole with 6 Lamps

    Ask Lasest Price
    Brand Name : MilkyWay
    Model Number : High Mast Pole
    Certification : ISO9001/BV/
    Price : Negotiation
    Payment Terms : T/T, L/C at sight
    Supply Ability : 300pcs per day
    Delivery Time : 20 working days after received your payment
    • Product Details
    • Company Profile

    Single Side Lighting 35M HDG High Mast Park Light Pole with 6 Lamps

    Single Side Lighting 35M HDG High Mast Pole with 6 Lamps for Airport Lighting


    Specifications:

    HeightFrom 20 m to 50 m
    Suit for

    Airport ,seaport,plaza,stadium ,square,highway,
    street way etc

    ShapeConoid ,Multi-pyramidal,Columniform,polygonal or conical
    Material

    Usually Q345B/A572,minimum yield strength>=345n/mm2
    Q235B/A36,minimum yield strength>=235n/mm2
    As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
    SS490, to ST52-

    Torlance of the dimenstion+- 2%
    Power400 W- 5000 W
    Light panel

    Various figure of slection ,material with hot dip galvanization steel
    frame ,stainless steel ,special aluminum plate

    Light ExtensionUp to 30 000 m2
    Lamp &Luminaire

    Projector generally to be applied with safety grade IP65
    Luminaire with high pressure sodium lamp of long lift and
    high lighting efficiency ,or metal halide lamp with high CRI

    Lifting system

    Lifter fixed in the inner of the pole with lifting speed of 3~5
    meter per minute Euqiped e;ectromagnetism brake and break –proof
    device,manual opeation applied under power cut

    Electric appliance control device

    Electric appliance box to be be the holde of the pole ,lifting operation
    could be 5 meter away from the pole through wire
    Time control and light control could be equipped to realize full-load
    lighting mode and part lighitng mode

    Surface treatment

    Hot dip galvanized Following ASTM A 123,
    color polyester power or any other standard by client required.

    Joint of PolesInsert mode,innerflange mode,face to face joint mode
    Design of poleAgainst earthquake of 8 grade
    Wind Speed160 Km/Hour
    Minimum yield strength355 mpa
    Minimum ultimate tensile strength490 mpa
    Max ultimate tensile strength620 mpa
    StandardISO 9001
    Length of per sectionWithin 14m once forming without slip joint
    Welding

    We has past flaw testing.Internal and external double welding makes
    the welding beautiful in shape
    Welding Standard :AWS ( American Welding Society ) D 1.1

    Thickness1 mm to 30 mm
    Production Process

    Rew material test → Cuttingj →Molding or bending →
    Welidng (longitudinal )→Dimension verify →Flange welding
    →Hole drilling →Calibration → Deburr→Galvanization or
    powder coating ,painting →Recalibration →Thread →Packages

    Packages

    Our poles as normal cover by Mat or straw bale at the top and bottom ,
    anyway also can following by client required , each 40HC or OT can
    loading how many pcs will calculation base on the client actually
    specification and data.

    Style

    Aerial clog could be installed complied with clients desire to carry
    camera or industrial antenna



    Production Flow:
    The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages




    Galvanization
    Standard:NFA91121
    Average thickness of the galvanization:Not less than 86μm.
    Manufacture Tolerance
    -Component Length:-25mm to 75mm
    -Straightness:2mm/m
    -Twisting degree:1°per 3 meters length
    -Ovalisation:Maximum is 3%
    -The average diameter:+/-0.5%
    -Slip length:+/-150mm

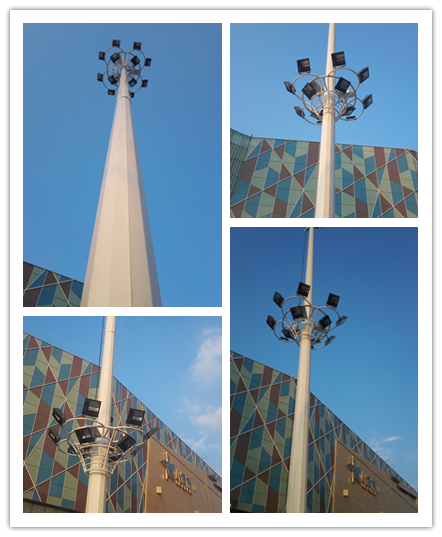

    More Photos:
