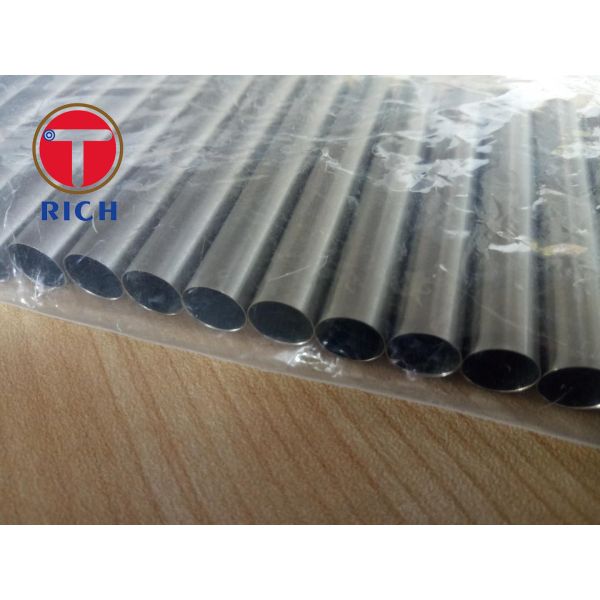

EN10216-5 Cold Finished Seamless Stainless Steel Tube For Pressure Purpose

EN10216-5 Seamless Stainless Cold Finished Steel Tube for Pressure Purpose

TORICH is a mature supplier for producing steel tube, we have more than 20 years in steel tube producing and export experience. We have many standards like SA269, SA213, EN10216-5, EN10216-1, SA312,etc for stainelss steel tube.

Dimension of stainless steel tube:

Size range: O.D.: 4.0-520mm

W.T.:1-50mm

L: according to customer requirement . max 5.8m for 20GP, max 11.8m for 40HQ

Manufacture by EN 10216-5 standard stainless steel tube:

The tubes are made by seamless prodiction.

The tubeing can be hot finished or cold finished

Process:

Cutting, chamfering, drilling

Delivery Condition:

Mechanical Tests Requirement:

Flaring Test (Seamless Tubes)

Flange Test (Welded Tubes)

Hardness Test

Hydrastatic or Nondestructive Electric Test

Appearance Condition:

The tube shall be free from external and intenal surface defects that can be detected by visual examination.

The external and intenal surface finish of the tubes shall be typical of the manufacturing process and where applicable, the heat treatment employed. Normally the finsh and surface condition shall be such that any surface imperfections requiring dressing can be identified.

It shall be permissible to dress, only by grinding or machining, surface imperfection provided that after doing so, the wll thickness in the dressed area is not less than the specified minimum wall thickness. All dressed areas shall blend smoothly into the contour of the tube.

Surface inperfections which encroach on the specified minimum wall thickenss shall be considerated defects abd tubes containing these shall be deemed not to conform to this part of EN 10216.

Pictures in production:

Advantage:

*Good abilities of stress corrosion, all kinds of localized corrosion,antioxidant corrosion(including high temperature oxidation resistance).

*Low density

*Good thermal conductivity: It is 30%-50% higher than Austenite. Small coefficient of thermal expansion: It is 30%-40% less than Austenite.

*Big elastic modulus

*Good processing properties

*Easily bending, stamping, curling, pinin, cold forging and machining.

*Excellent deep drawability

QUALITY CONTROL
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.

100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.

Who We are ?

-------A professional steel pipes materials inventor, manufacturer and solution provider
Torich International Limited is a professional manufacturer and exporter of steel pipes materials. It is an international marketing and sales company specialized in steel tubes, which holds the factories of Seamless Steel Tubes with Carbon and Alloy Steel Grade, Welded Precision Steel Tubes,DOM Steel Tubes, Seamless & Welded Stainless Steel Tubes with Nickel and Alloy Steel Grade.
Our factory was established since 1997, with the name of TORICH INTERNATIONAL LIMITED. The factories’ technicians are of great engineering experience in steel pipe industry for more than 20 years, which are in great command of production technology for Cold Drawing and Cold Rolling. So we have strong technician team and manufacturing capability.

What products we do?

------- Invent and produce various Precision Steel Pipes

Our steel pipes cover the following ranges:
Seamless Precision Steel Pipes

Bearing Steel Tubes
Welded Precision Steel Pipes, with DOM production
Seamless Heat Exchanger Steel Pipe
Seamless Boiler Steel Pipes

Honed Tubes

Hydraulic Cylinder Steel Tubes

Hydraulic Telescopic Cylinder Tubes
Seamless Structural Steel Pipes
Seamless Mechanical Steel Pipes
Seamless Alloy Steel Tubes & Pipes
Seamless Stainless Steel tubes
Welded Stainless Steel Tubes
Seamless Stainless Steel Tubes & Pipes
Welded Stainless Steel Tubes & Pipes
Seamless Carbon Steel Tubes & Pipes
Nickel Alloy Steel Tubes & Pipes

What TORICH do:
1. Producing Steel Tubes
2. Selling both on Domestic and International Market
3. Precisely Targeting Customers’ Requirement- Sourcing the right factory for right products for Customers

Products Application:
Oil Cylinders
Air Cylinder,
Automotive Cylinder Liners
Boilers, Pressure Vessels
Shell & Heat Exchangers
Jack Lifting
Telescopic Systems
Pneumatic Cylinders
Agricultural Machineries

Size range is:
O.D. 4-350mm,
W.T. 0.5-30mm,
Length: according to customer’s requirement and agreement


Steel Grade:
Carbon Steel Grade:
ST35.8, ST37.0, ST44, ST52;
E155, E195, E215, E235, E275, E355;
195GH, P235GH, P265GH, P195TR1, P195TR2, P235TR1, P235TR2, P265TR1, P265TR2;
SAE1010, SAE1020, SAE1026, SAE1035, SAE1045;

Carbon steel tube: SA178, A179, A192, A210, SA213, SA214, etc.
Alloy Steel Grade:
T2, T5, T9, T11, T12, T17, T21, T22, T91,T92, 15Mo3,16Mo3, 13CrMo44;
SAE4130, SAE4140, 40Cr, 40Cr4, 10CrMo910, 12CrMo910, 11CrMo910,
25CrMo4, 35CrMo, 35CrMo4, 42CrMo4, 34CrMo4, 20MnV, 20MnV6,20CrMn;
Carbon steel tube: A179,A192,A210,DIN17175,etc.

Bearing Steel Grades:
GCr15 52100 suj2 suj3 100Cr6 SKF3S SKF3S 20CrNiMo 8620H 4118H;

Nickel Alloy Grade:
N02200/2201, N04400, N06600, N06601, N06625, N06852, N06219, N06690, N08800/8810/8811, N08825, N08028, N08535, N08904, N08925, N08926, N010276, N06022, etc.

Austenitic/Super Austenitic Stainless Steel Grade:
304/304L, 316/316L, 314, 321, 347H, 316Ti, 316LMod, 317L/N, 310S, 253MA, 330, 904L, S31254, XM-19, etc.

Ferrite/Martensite Stainless Steel Grade:
TP410, TP405, TP420, TP430, TP430Ti, TP403, TP409, TP444, TP439, TP446, etc.

Duplex/Super Duplex Stainless Steel Grade:
S31803, S32304, S31500, S32550, S32750, S32760, etc.
Corporate Culture:
We focus on Quality First, Quality Traceability, and Quality Stability!
We focus on Customer First, People First, and Quality-Oriented!
Success:
First factory started in 1997, in the name of Torich , now covers 50000 square meters of factory building, with more than 100employees, and over 45 million RBM assets.
In 2008, we started the company of Torich International Limited for international business and marketing.
Welcome partners from all over the world for long term cooperation!
