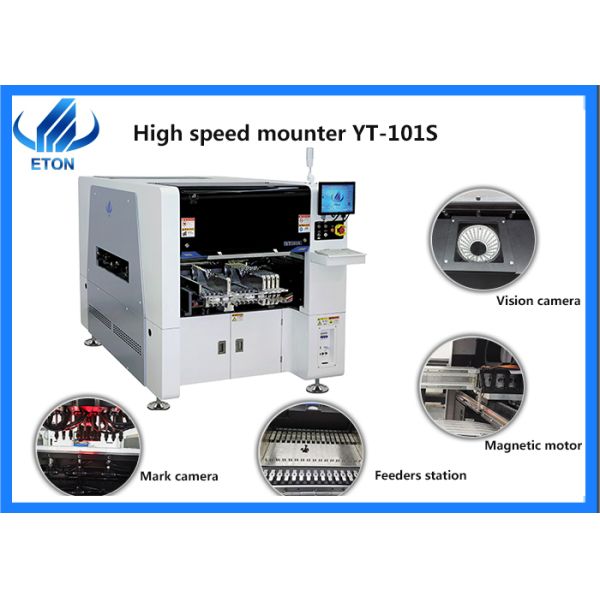

0201 LED chip 1700 kg SMT CE CCC SIRA pick and place machine
Machine main features
- Adopt High speed multi modular head, apply to ultra small chip
0201~40*40 mm large chip, wide component range;
- Brand new flight vision camera: Improve recognition performance,
size up to 40*40 mm, apply to BGA or CSP etc;
- Vacuum sensing device: Each placement head with independent
detection function, which improves the stability of the equipment
and the reliability of the product;
- Ultra high speed capability: Adopt high-end magnetic linear motor,
servo system and multi function modular head, the capacity
increased by 25% compared with traditional machine, optimum speed
reach 40000 CPH;
- Brand new self-developed high precision placement head;
- High-speed precision head flight vision camera capture the image of
placement accordingly, improve placement performance;
- The placement head adopt independent vacuum detection, improve
placement performance;
- Off-line programming, save time of changeover cycle;
- Software AI intelligent learning function and automatic
optimization function.
Machine main parameter
| Model | YT-101S |
| PCB size | Max size: 500*350 mm Min size: 50*50 mm |
| PCB thickness | 0.5-4.5 mm |
| PCB clamping | Cylinder clamping, track width adjustable |
| Software | R&D independently |
| Production management MES system | Customized (Option) |
| Off-line programming | Available |
| Camera | Head flight vision recognition component Vision alignment + Mark correction |
| Repeat precision | ±0.02 mm |
| Mounting height | ≦20 mm |
| Optimal speed | 40000 CPH |
| Component range | Min 0201~40*40 mm packages and IC etc. |
| Position mode | Optical |
| No.of heads | 10 pcs |
| Feeding way | Intelligent double head feeder |
Certificates
As an experienced manufacturer in SMT machine, we obtained a number
of intellectual property technologies, including 9 invention
patents, 112 practical patents, 12 software copyrights, with our
won R&D department for production and inspection. And also
earned the oversea certificates as CE, CCC, SIRA,
etc.
Service
Maintenance period 1 year
One year warranty during warranty any parts that need to be
repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON,
so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in
different cities every year, at the same time, we will visit local
clients and support our service and collect feedback on customer
suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And
share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also
have site in Egypt, Turkey that can provide service timely with our
engineers.
According to your needs, dedicated senior engineer will come to
your factory for free install and training you how to operate the
machine.
Shipping and Delivery
We usually transport the goods to the port in containers and then
ship them to the destination. For the transportation of machines,
land transportation and air transportation are also possible.
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost
of shipping which is easy for clients to accept the arrival time of
the goods.
FAQ
Q.Can I pay by L/C.
A.The procedure of L/C payment is complicated, which will waste a
lot of time on payment. For more, you need to wait longer to get
the machine, which will delay your production plan and delay the
opportunity.
Q. What is your machines quality?
A. As an experienced manufacturer in SMT machine, we obtained a
number of intellectual property technologies, including 9 invention
patents, 112 practical patents, 12 software copyrights, with our
won R&D department for production and inspection. And awarded
as “China high-tech enterprise”, “Shenzhen TOP brand” we ensure our
high quality of our machine as an excellent manufacturer in China.
Q. What kind of machine you have?
A. We are the high speed SMT pick and place machine manufacturer,
and also we build our brand to more efficient and convenient
machine for our customers. We have multifunctional type, honor
series, value series with high precision and high productivity.
