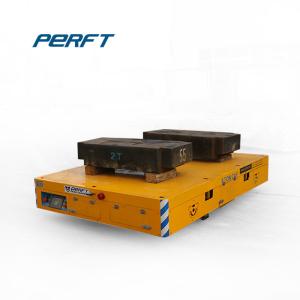

    Heavy Load Conductor Rail Powered Platform Transfer Cart

    Ask Lasest Price
    Brand Name : PERFECT
    Model Number : PERFECT-BDG
    Certification : CE, SGS, ISO
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 750 Sets Per Year
    Delivery Time : 45 Days After Receiving The Prepayment
    • Product Details
    • Company Profile

    Heavy Load Conductor Rail Powered Platform Transfer Cart

    Plateform Heavy load Remote controlConductor Rail Powered Die Transfer Cart


    Product Descriptions

    This BDGZ Series platform track carrier is powered by the rails. This BDGZ Series platform track carrier is used for heavy duty load,high using frequency and meet full automation demand.It has been widely applied in these fields, such as construction, steel plant, shipyard, chemical industry,etc. BDGZ Series platform track carrier has these features such as safety,flexibility,high using frequency,long using time,long service life,no limitation of running distance.The rails need to be insulated in erection,and the transformer shall be incresed to raise the voltage if the running distance is beyond 80m.

    Details

    • 1.The platform track carrier is Anti-high temperature, Anti-high explosion;
    • 2.The platform track carrier is powered by low voltage electricity from the railway;
    • 3.With lifting holes, platform track carrier is convenient to shipment;
    • 4.The platform track carrier has a feature of stable start, big starting power, long lifetime;
    • 5.The platform track carrier can run on the C-form track or S-form track;
    • 6.Running distance of platform track carrier is unlimited;
    • 7.Safe and convenient operation is available for platform track carrier ;
    • 8.High using frequency for platform track carrier .
    Technical Parameters
    ModelBDGZ-2tBDGZ-16tBDGZ-30tBDGZ-50tBDGZ-63t
    Rated Load(t)216305063
    Table Size(mm)Length(L)20004000450055005600
    Width(W)15002000220025002500
    Heigth(H)450500600650750
    Wheel Base(mm)12002800320042004300
    Rail Inner Gauge(mm)12001435143514351435
    Wheel Diameter(mm)270350400500600
    Wheel Quantity44444
    Ground Clearance(mm)5050505075
    Running Speed(min)0-250-200-200-200-20
    Motor Power(kw)123.556.3
    Transformer Power(KVA)36.8101020
    Transformer Quanity11111
    Running Distance(m)7070705050
    Max Wheel Load(KN)14.464.5110.4174221.4
    Reference Weight(t)2.85.56.8810.8
    Recommended Rail ModelP15P24P38QU43QU50

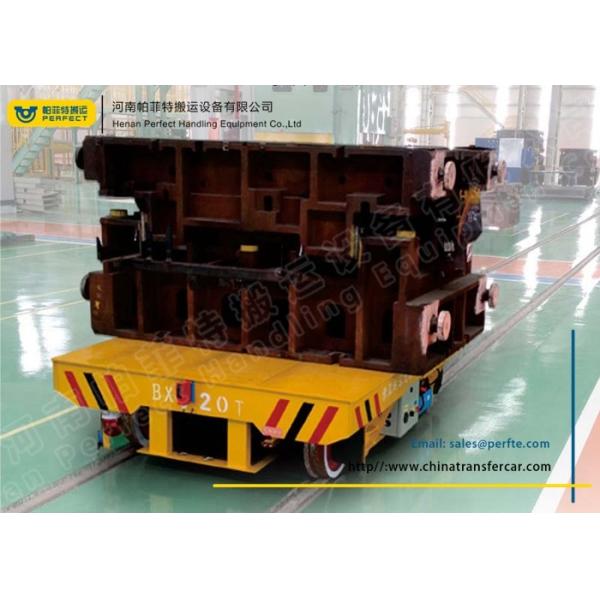

    Detailed Image Of platform track carrier

    Track Carrier


    Where we can use for


    Certifications

    Track Carrier


    Our Services
    • Our commitment: The load bearing safety factor of the platform track carrier is no less than 120%.
    • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
    • 16 hours engineering service and 24 hours internet service for our customers.
    • During the warranty period, if our platform track carrier can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
    • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
    Company Information

    Based on modern plant and advanced production equipment, we can produce all kinds of platform track carrier from 1-1300 tons, our main products including BDG series platform track carrier, BJT cable drum series platform track carrier , BHX safety sliding line series platform track carrier , BXC battery series platform track carrier , BTL towed cable series platform track carrier , BP non-power series platform track carrier , BQY train towed series platform track carrier , BWP trackless series platform track carrier and special platform track carrier , such as turning, trackless, ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
