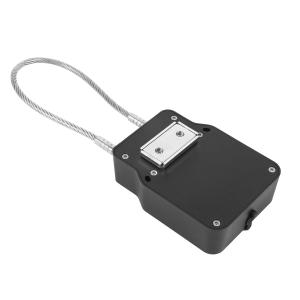

Jointech JT709A Smart Cargo Truck Container Tracking Navigation
Electronic Seal
1. Introduction:
JT709A is designed for container cargo tracking, can be tracked in real
time, and unlocked by authorized RFID card/bluetooth on site or remotely by mobile app, SMS or software; flexible lock cable length, live tamper-proof alerts, etc.
JT709A is an industrial-grade electronic lock approved by market
with high stability and welcomed to serve as a smart lock widely
used for container, trailer, open truck and oil tanker to monitor
and protect these logistics equipment and cargo loaded.
JT709A adopts the technologies of GPS/LBS/BEIDO, 2G/3G/4G,
RFID/BLE/LORA, Micro-electric control, low power consumption
control and combines them into an ideal electronic lock for mobile
assets including logistics equipment.
2. Benefits:
▲ Increase Cargo Traceability;
▲ Improve Customs Clearance Efficiency
▲ Loss prevention with live tamper alarms
▲ Authorized unlocking for customs supervision
▲ Electronic reporting for management
3. Features:
▲ Positioning and tracking
▲ 2G and 4G cellular communications technology.
▲ 3 axis accelerometer for movement detection.
▲ Status monitoring (open lock, close lock, Lock rope cut)
▲ Event trigger (vibration trigger, card trigger, alarm trigger)
▲ Smart control: System and APP remote online unlocking
▲ Authorized RFID card unlocking
▲ Bluetooth offline unlocking
▲ Event alarms:
Lock rope cut alarm
Low battery alarm
Open cover alarm
Wrong password alarm
Unauthorized RFID card alarm
Enter & Exit geofence alarm, etc.
4. Specification:
| Items | Specifications |
| Dimension( L x W x H ) | 110mm*82mm*35mm |
| Lock rope length | 300mm (can be customized) |
| Lock rope material | 304 stainless steel |
| Lock rope diameter | Lock rope diameter 3.5mm, outer diameter of rubber 5mm |
| Host weight | About 390g (including lock rope) |
| Shell material | Nylon fiber |
| Built-in battery | 4500mAH, 3.7V rechargeable lithium battery |
| Charging port | DC2.0 connector, 1000mA charging current |
| Operating temperature | -20℃ - +60℃ |
| storage temperature | -40℃ ~+ 80℃ |
| Relative humidity | 5%~95% |
| Waterproof and dust proof grade | IP67 |
| Blind area data cache | 2000 pieces of data |
| Average working current | (60 sec data updating interval) 2G: 34.6 mA 4GG: 57.6 mA |
| Average dormant current | 2G: Turn off SMS wakeup:1.106mA 4GG: Turn off SMS wakeup:1.2mA Turn on SMS wakeup : 4.6 mA |
GNSS/Cellular Module antenna | Built-in |
| GNSS Module | Ublox-MAX-7Q or 8Q Cold start positioning time:29 seconds Hot start positioning time:1 second Warm start positioning time:28 seconds |
| Cellular module communication frequency band | 2G module | GSM/EDGE 850/900/1800/1900Mhz |
| 4G European version | TDD-LTE B38/B40/B41 FDD-LTE B1/B3/B5/B7/B8/B20 WCDMA/HSDPA/HSPA+ B1/B5/B8 GSM/GPRS/EDGE 900/1800 MHz |
| 4G full Frequency band(4GG) | 4G LTE Frequency band: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19 /B20/B25/B26/B28/B34/B38/B39/B40/B41/B66 UMTS/HSPA+: B1/2/B4/B5/B6/B8/B19 GSM/GPRS/EDGE: 850/900/1800/1900MHz |
| SIM card | Micro-SIM card |
| Bluetooth | Support Bluetooth5.0 Bluetooth frequency:2.4GHz ±30KHz Bluetooth communication distance:2-10 meter Bluetooth antenna signal strength:＞4 dBm |
