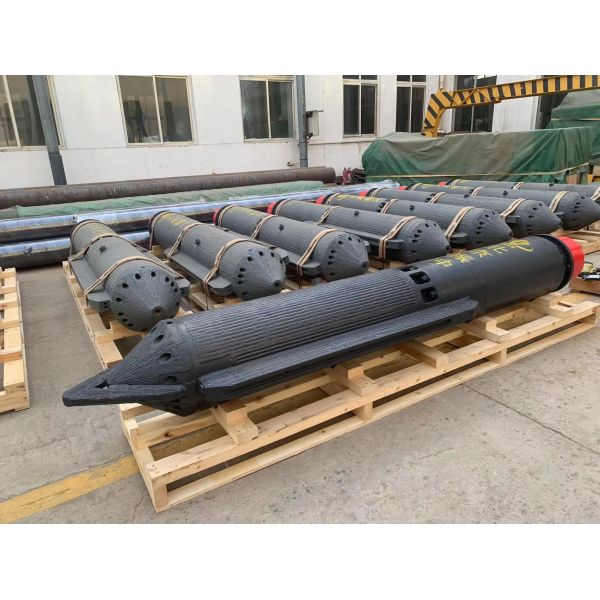

75kW vibroflot equipment for foundation treatment deep vibro ground
improvement device
| Vibroflot Spec. |
| Type | BJV75E-426 |
| Power/kW | 75 |
| Rotation speed/rpm | 1450 |
| Amplitude (at Tip)/mm | 16 |
| Centrifugal force/kN | 180 |
| Weight /kg | 2018 |
| Diameter/mm | 426 |
| Length/mm | 2783 |
| Diameter of the work pile/mm | (800-1200) |
The deep vibro techniques
It present a very versatile ground improvement method that can be
adjusted to a wide variety of ground conditions and foundation
requirements. Its execution is comparatively fast even if large
volumnes of soil are to be improved and subsequent structural works
can follow very quickly.The soil improvement enables the contractor
to utilise standard shallow footings which,in turn,leads to
additional savings.
Another advantage is the environmental friendliness of vibro
techniques,as natural and in situ materials are used. In addition,
only a comparatively small quantity of soil is removed during the
process.
Advantages |vibroflotation (VF)
Cost effectiveness – one of the most cost-effective technologies of
strengthening the soil, particularly effective in a situation of
deep situated non–cohesive soils;
Comprehensive improvement – Improving the geotechnical parameters
of the entire volume of compacted soils.
Control of subsidence – the use of VF technology leads to a
reduction in the total subsidence and minimize differential
subsidences, which greatly contributes to a secure structure
foundations;
Performance – one of the few soil strengthening technologies used
for layers of considerable thickness, up to 40m depth, compacted in
the entire volume of the strengthened soil;
Hydro–technical effectiveness – the technology is often used in
hydraulic engineering constructions – like the port floors,
strengthening the embankments – it is the only effective method to
improve soil conditions.
Beijing vibroflotation engineer machinery co.,ltd(BVEM)
BVEM focus on vibroflotation market and formed a business platform
with vibroflotation technique as core, on which there are three
main business including the manufacturing and integration of
vibroflotation equipment, sales and service for vibroflotation
equipment and foundation improvement construction undertaking. BVEM
is the largest manufacturer of electrical vibroflot in Asia and one
of the authors of Chinese vibroflot manufacturing code.
BVEM has a total 23000 square meters of coverage area, including NC
machining workshop, electrical assembly workshop, storage
warehouse, testing site, and full functional departments is
composed of production, R&D, marketing , after-sales service
and construction.
