Lemo 3S M18 Connector FFA Coaxial 50 Ohm Male And Female Connectors
FFA.3S.250
Lemo 3S M18 Coaxial Connector Description:
Lemo 3S M18 Connector are used in audio/video applications, Machine industry, medical
applications, research instrumentation as well as test and
measurement environments. The self-latching connectors are with
stepped inserts for alignment (of multipole version).
Main features:
-Security of the push-pull self-latching system;
-Multipole types 2 to 10 contacts;
-Solder or print contacts(straight or elbow);
-High packing density for space savings;
-Polarisation by stepped insert(half-moon) fitted with male and
female contacts;
-360°screening for full EMC shielding.
Lemo 3S M18 Coaxial Connector Technical Datasheet:
| Shell Style/Model | FFA*: Straight plug, cable collet |
| Keying | Circular, male |
| Housing Material | Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel
plated brass latch sleeve and mid pieces |
| Configuration | 3S.250 : 1 Coax (50 Ohm) |
| Rated Current | 26 Amps |
| Contact Type | Coaxial 50 Ohm (Solder) |
| Impedance | 50 Ohm |
| Vtest | 3000 V (AC), 4200 V (DC) |

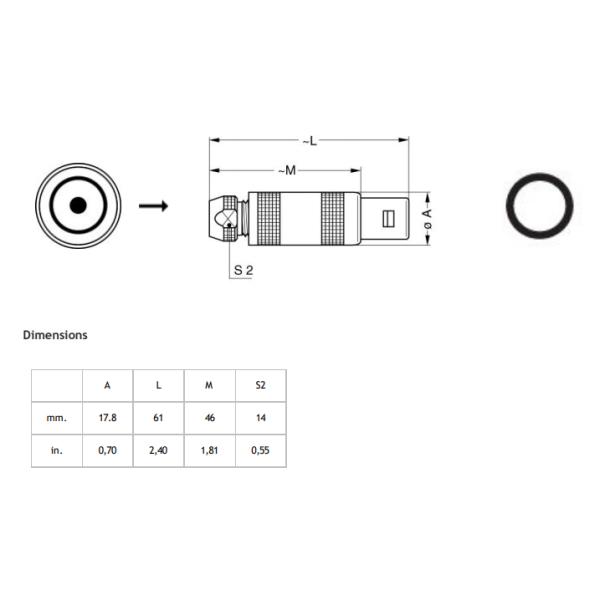

Lemo 3S M18 Coaxial Connector Size and Drawing:
FAQ:
How to choose connector you want?
(kindly tell us lemo connector model number or connector size and
pins number you want)
How to pay us?
(We accept paypal,TT,westunion etc payment terms)
How we ship goods?
(By DHL,FEDEX,UPS etc pr you can choose your own express)
If i have a male or female lemo connector,could i use EBUDDY
connector instead?
(Yes, our connectors are totally compatible with lemo connector)
How about delivery time of Ebuddy?
(Usually 3-5 days after received payment)
