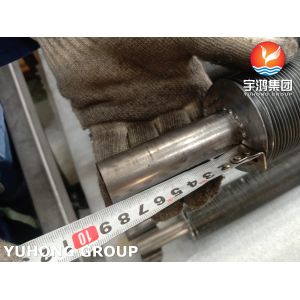

ASME SB163 Monel400/2.4360 Nickel Copper Alloy Steel Fin Tube For Heat Exchanger

FINNED TUBE, ASTM SB163 UNS N04400 MONEL 400 NICKEL ALLOY TUBE FOR HEATING

Monel 400 is a nickel-copper alloy (about 67% Ni – 23% Cu) that is resistant to sea water and steam at high temperatures as well as to salt and caustic solutions. Alloy 400 is a solid solution alloy that can only be hardened by cold working. This nickel alloy exhibits characteristics like good corrosion resistance, good weldability and high strength.

YUHONG GROUP deal with Stainless/Duplex/ Nickel steel seamless pipe and tube already more than 10 years, every year sell more than 80000 tons of Stainless/Duplex/ Nickel steel seamless pipe and tube. Our client already cover more than 45 countries. Our stainless steel seamless pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc. ANSI B16.10: B16.19 SCH 5S, SCH 10S, SCH 20, SCH 30, SCH 40S, SCH 60, SCH80S, XS, SCH 100, SCH 120, SCH160, XXS.

Monel 400 is available in many forms like wire , Round bar, Forged bar , hex bar , Flat bar , Circles , Ring , Tube , seamless Pipe , Welded / ERW Pipe , Sheet , Plate , Coil , Flanges , fasteners , Socket weld Fittings , ferrule fittings , Buttweld fittings Like cap , elbow , tee. UNS N04400 is available in various forms like Monel 400 wire , Monel 400 Round bar, Monel 400 Forged bar , Monel 400 hex bar , Monel 400 Flat bar , Monel 400 Circles , Monel 400 Ring , Monel 400 Tube , Monel 400 seamless Pipe , Monel 400 Welded / ERW Pipe , Monel 400 Sheet , Monel 400 Plate , Monel 400 Coil , Monel 400 Flanges , Monel 400 fasteners , Monel 400 Socket weld Fittings , Monel 400 ferrule fittings , Monel 400 Buttweld fittings Like cap , elbow , tee , Reducer.

UNS N04400 is available in various forms like cap, elbow, erw pipes, fasteners, fittings, flange, plate, reducer, round bar, seamless pipes, sheet, tee and tube.

Chemical Analysis of ALLOY 400 (UNS N04400)
Monel 400®, Nickelvac® 400, Nicorros® 400

Specifications

For a given tube or size, the required heat transfer can be obtained by specifying the appropriate fin length and fin thickness and/or the number of fin tubes per meter length.

HFW Solid Finned Tube

This welded steel finned tube configuration can be used for any practically heat exchanger application, and is particularly suited to high temperature and high pressure applications. The important features of this configuration are efficient, effective bond of fin to tube under all conditions of temperature and pressure, and ability to withstand high fin-side temperatures.

A continuous helical fin is attached to the base tube by high frequency electric resistance welding in order to give an efficient and thermally reliable bond.

Technical Details/Base Tube Details

Tube Diameter : 20 mm OD Min to 219 mm OD Max.

Tube Thickness : Minimum 2 mm up to 16mm

Tube Material : Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, duplex Steel, Super Duplex Steel, Inconel, High Chrome High Nickle & Incolloy, CK 20 material and some other material.

Fin Details

Fins Thickness : Min. 0.8 mm to Max. 4 mm

Fins Height : Min 0.25” (6.35 mm) To Max.1.5” (38 mm)

Fin Density : Min 43 Fins Per Meter To Max. 287 Fins Per Meter

Material : Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, Duplex Steel and Incolloy.

For a rapid quotation, plz send with following requirement:

Number of pieces,

base tube: Diameter, thickness, length and material specification.

Fins: material specification, type (solid or serrated), height, thickness, spacing, finned length and unfinned sections. Weld prep details if required.

Delivery period required.
