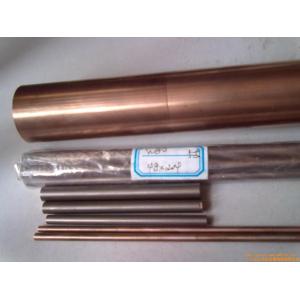

Cu25W75 Dia 1-80mm Tungsten Copper Rod Bar on Sale

    Buy cheap Cu25W75 Dia 1-80mm Tungsten Copper Rod Bar on Sale from wholesalers

    Buy cheap Cu25W75 Dia 1-80mm Tungsten Copper Rod Bar on Sale from wholesalers
    • Buy cheap Cu25W75 Dia 1-80mm Tungsten Copper Rod Bar on Sale from wholesalers
    • Buy cheap Cu25W75 Dia 1-80mm Tungsten Copper Rod Bar on Sale from wholesalers
    • Buy cheap Cu25W75 Dia 1-80mm Tungsten Copper Rod Bar on Sale from wholesalers
    • Buy cheap Cu25W75 Dia 1-80mm Tungsten Copper Rod Bar on Sale from wholesalers

    Cu25W75 Dia 1-80mm Tungsten Copper Rod Bar on Sale

    Ask Lasest Price
    Brand Name : Sanhui
    Model Number : W75Cu25
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : D/A, D/P, T/T, Western Union
    Supply Ability : 1000 kgs per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Cu25W75 Dia 1-80mm Tungsten Copper Rod Bar on Sale

    Tungsten Copper Alloy/Copper Tungsten/CuW /WCu Rod


    Tungsten copper alloy production:

    Our tungsten copper alloy is produced by vacuum infiltration method with excellent performance and stable quality. Because the melting points of tungsten and copper are very different, it can not be produced by traditional melting and casting method. Our process route is powder preparation - pressing - sintering - infiltration - machining. Our company selects high-purity tungsten powder and copper powder, mixes them evenly and puts them into the granulation equipment to complete the preparation of the powder. The professional customized vacuum sintering furnace ensures that there are no holes in the tungsten copper alloy.


    Tungsten Copper alloy Properties:

    Tungsten-copper alloy features good heat and electrical conductive, high temperature resistance strength and ductility.


    Tungsten copper alloy applications:
    Tungsten copper alloy is widely used to manufacture switch contact for high-voltage electrical appliances, rocket nozzle throat liner and sternpost rudder, and other high temperature components and parts. In addition, it also can be used to make electrode for spark processing, high temperature mold and other high heat and electrical conductive parts.


    Tungsten Copper Alloy types,chemical compositions and main properties:


    Typechemical composition of copper tungsten alloy(%)resistivity(cm)tensile strength(kg/mm2)hardnessdensity(g/cm3)
    WCu
    F6002E60balance<=3.26*10-6>=130>=160>=12.70
    70<=3.80*10-6>=200>=13.80
    80<=4.00*10-6>=220>=15.00

    Brand and NO.Chemical components%Physical properties

    Cu

    Total impurities


    W

    Density

    (g/cm³)

    Hardness

    HB

    Resistivity

    (µΩ·cm) ≤

    Conductivity

    IACS%≥

    Bending strength

    Mpa≥

    CuW(50)50±2.00.5Bal.11.851153.254
    CuW(55)45±2.00.5Bal.12.301253.549
    CuW(60)40±2.00.5Bal.12.751403.747
    CuW(65)35±2.00.5Bal.13.301553.944
    CuW(70)30±2.00.5Bal.13.801754.142790
    CuW(75)25±2.00.5Bal.14.501954.538885
    CuW(80)20±2.00.5Bal.15.152205.034980
    CuW(85)15±2.00.5Bal.15.902405.7301080
    CuW(90)10±2.00.5Bal.16.752606.5271160

    We also offer tungsten copper alloy rings, plates, etc..
