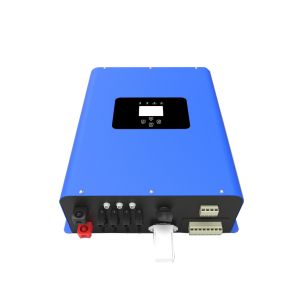

Mppt 3kw Solar Hybrid Inverter 200-1000v Home Energy System

    Buy cheap Mppt 3kw Solar Hybrid Inverter 200-1000v Home Energy System from wholesalers

    Buy cheap Mppt 3kw Solar Hybrid Inverter 200-1000v Home Energy System from wholesalers
    • Buy cheap Mppt 3kw Solar Hybrid Inverter 200-1000v Home Energy System from wholesalers

    Mppt 3kw Solar Hybrid Inverter 200-1000v Home Energy System

    Ask Lasest Price
    Brand Name : Qiyuan
    Model Number : GC3K-24BG
    Price : USD/CNY, Unit
    Payment Terms : L/C, T/T
    Supply Ability : 500 set per month
    Delivery Time : 1-2 months
    Certification : CE, IEC
    • Product Details
    • Company Profile

    Mppt 3kw Solar Hybrid Inverter 200-1000v Home Energy System

    Product Features

    • Adopt advanced technology MPPT tracking;
    • Support lithium battery activation awakening function;
    • Temperature, overload, over voltage, over current, short circuit protection function;
    • Support two-way DC soft start function;
    • Support, overload, short circuit to restart function;
    • Wide voltage input, 90 ~ 280 vac input;
    • Automatic disconnection with charger when fully charged;
    • Compatible with lithium battery and lead acid battery;
    • Inverter with lithium battery integration design, reduce the difficulty of the installation,
    • WiFi function;
    • Supports connection with generator, with parallel function;
    • Anti-corrosion treatment, high protection grade;
    Input (PV)
    Max. PV Input Power4.6KW6KW7KW
    Max. PV Input Voltage500V
    Start Voltage120V
    MPP Voltage Range125V~500V
    Rated MPPT Voltage Range360V
    Max. Input Current per MPPT14A
    No. of MPPT/String2/1
    Output (AC)
    Max. Output Current13A17.4A21.7A
    Rated Power3kVA4kVA5kVA
    Rated output voltage230V, L + N + PE
    Operating Voltage Range180V~280V
    Rated Frequency50Hz/60Hz
    Power Factor1
    THDi< 3%
    Output (EPS)
    Rated Power3kVA4kVA5kVA
    Rated Voltage230V
    Rated Current13A17.4A21.7A
    Rated Frequency50Hz/60Hz
    Automatic Switching Time<20ms
    Overload Capability120%, 30S / 150%, 10S
    THDU<2%
    Battery
    Battery Voltage Range40-58V
    Max. Charging Voltage58V
    Charge/Discharge Current95A/62.2A95A/83.3A95A/104.2A
    Battery typeLithium
    CommunicationCAN/RS485
    Efficiency
    Max. DC Efficiency98.2%
    European Efficiency97.2%
    MPPT Efficiency99.9%
    Battery Charge/Discharge Efficiency95.5%
    Communication
    DisplayLCD, touch screen
    CommunicationRS485/CAN/DRM, Optional: Wifi/LAN
    Standard
    CertificatesCE
    General Data
    Dimensions (W x H x D )550 x 7515x 200 mm
    Weight26kG
    Operation Temperature-25℃~+60℃
    Colling MethodForced air cooling
    Protection LevelIP65/NEMA 3R
    Noise<35dB
    Max. Operation Altitude5000M (derate above 2000M)
    Relative Humidity0~95%
    Power Consumption<3W

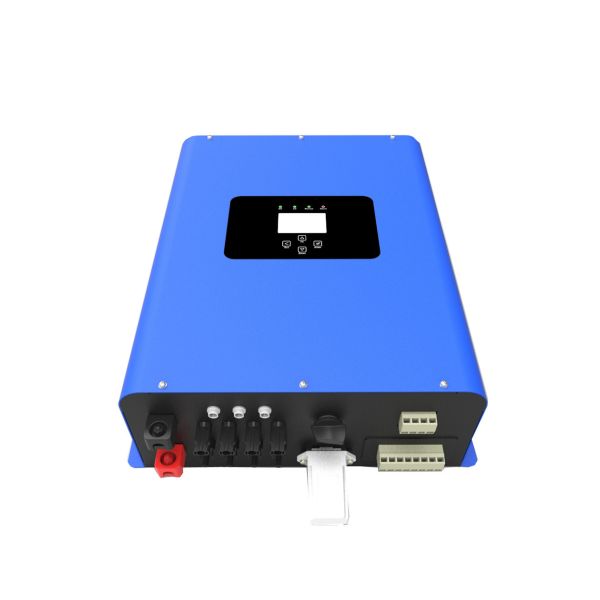

    Quality Mppt 3kw Solar Hybrid Inverter 200-1000v Home Energy System for sale
