Electrical Control System
The spray booth is a device that provides a special environment for
painting operations. The artificial environment created in the
spray booth can meet the requirements of the painting operation on
the temperature, humidity, illumination, and cleanliness of the
environment; create a relatively comfortable and safe environment
for operators. Working environment: It can handle the paint mist
generated by the painting operation and protect the sprayed objects
from secondary pollution. The spray booth is composed of a dynamic
and static pressure chamber, a spraying operation room, a paint
mist treatment, and an exhaust system. The spray booth is used to
capture paint mist The methods can be divided into dry spray booth
and wet spray booth.
The wet Venturi spray booth is a classic structure spray booth that
has been widely used in the painting industry. Our company's wet
spray booth adopts a modular structure, which can be quickly
fabricated and installed. It has a good indoor operating
environment, an efficient paint mist collection rate, and a fully
automatic slag collection system.
Electrical Control System
Pic1

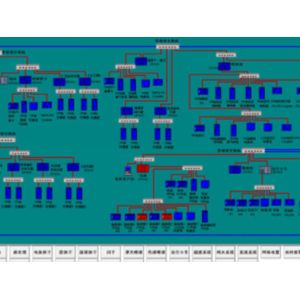

Internet Topology Diagram
Pic2
Energy Sources Metering System
Pic3

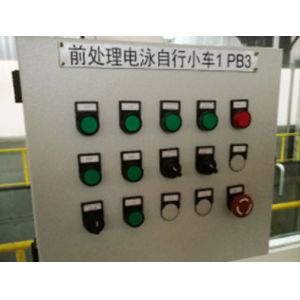

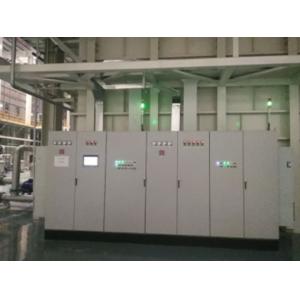

Control Cabinet
Pic4
Pic5
The intelligent, green and high-end modern painting production line
can fully realize the processes of body electrophoresis, primer,
and topcoat spraying, fully realizing intelligent production.
Smart spraying
The production process of Kinte automobile coating production line
adopts a three-coat, three-dry coating system, that is, three coats
of primer, middle coat and top coat; the primer is cathodic
electrophoretic primer, and the middle coat and top coat are
applied by robots. The combination of automatic spraying and manual
spraying ensures that the product coating has good appearance,
physical and chemical properties.
The paint film performance testing equipment is advanced and
complete. Such as color difference meter, multi-angle gloss meter,
orange peel meter, etc. are all German BYK brands. With the
scientific cooperation of various equipment, the annual output of
80,000 units can be guaranteed while meeting the quality
requirements.
