PV System PCB On Board Design SPD Device With Thermal Response

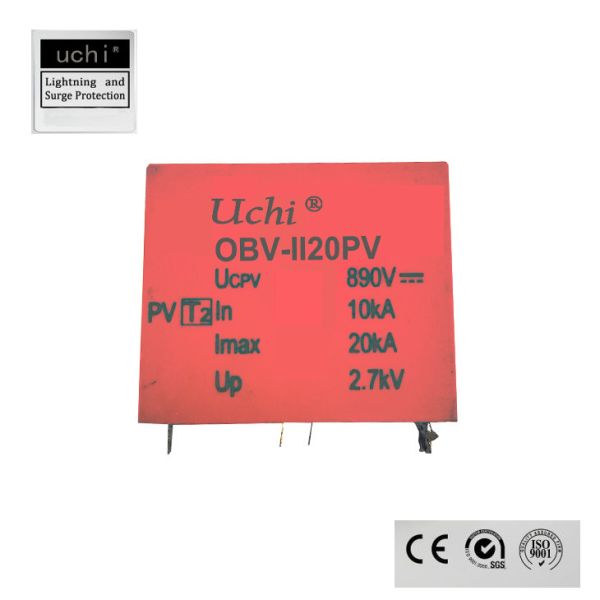

PCB On Board Design Surge Protection Device For PV System With Thermal Response​

Product Application:

This kind of surge protection modules which are heavy MOV based devices and are constructed with Prosurge thermal protection and arc extinguishing technology, can be easily integrated in or mounted on PCBs. They are the best choice for global customers to develop PV SPD at minimum cost.

SPD Module Features
1. Type 2 SPD for PV/ photovoltaic system.
2. Rating: (1)Max. permitted DC voltage(Vpvdc): 85V -890Vdc; (2)Surge capacity(8/20 μs): 20kA;
3. Quick thermal response and perfect circuit cutoff function due to special thermal disconnector design with arc extinguishing device
4. Wide operating temperature range and high reliability.
5. High surge current capability and low leakage current.
6. Provide a number of ways to use on PCB, such as permanent soldering or pluggable.

SPD Module Ratings
Max. permitted DC voltage (Vpvdc): 85V~890Vdc
Surge capacity (8/20μs): 20kA

Product Features:

1. Prevent low voltage equipment from overvoltage interference, according to GB18802.1-2011, IEC61643-11 standard T2 surge protector
2. PCB on board design, easy to install
3. Onboard surge protector is used as a secondary power protector
4. 20kA onboard surge protector with high lightning discharge capability and response time only ns
5. Double thermal tripping device, provide reliable protection, and signal reminder function
6. When a fault occurs, the detection window changes from green to red
7. Onboard lightning protection device saves material and installation cost
8. Can be customized for higher voltage level of single pole
9. No power consumption, high reliability, long life
10. Small space, can be vertical, horizontal PCB board lightning protection device
