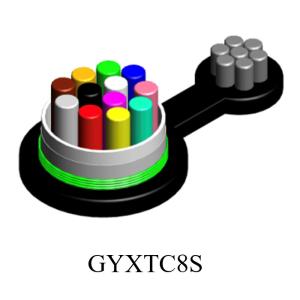

    GYXTC8S Outdoor Single Mode 2 4 8 12 24 Core Armoured Figure 8 Aerial Optical Fiber Cable

    Ask Lasest Price
    Brand Name : AITONG
    Model Number : GYXTC8S
    Certification : ISO9001
    Price : Negotiate
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 100KM/DAY
    Delivery Time : 5-8 Days
    • Product Details
    • Company Profile

    GYXTC8S Outdoor Single Mode 2 4 8 12 24 Core Armoured Figure 8 Aerial Optical Fiber Cable


    GYXTC8S Outdoor Single Mode 2 4 8 12 24 Core Armoured Figure 8 Aerial Optical Fiber Cable

    Description

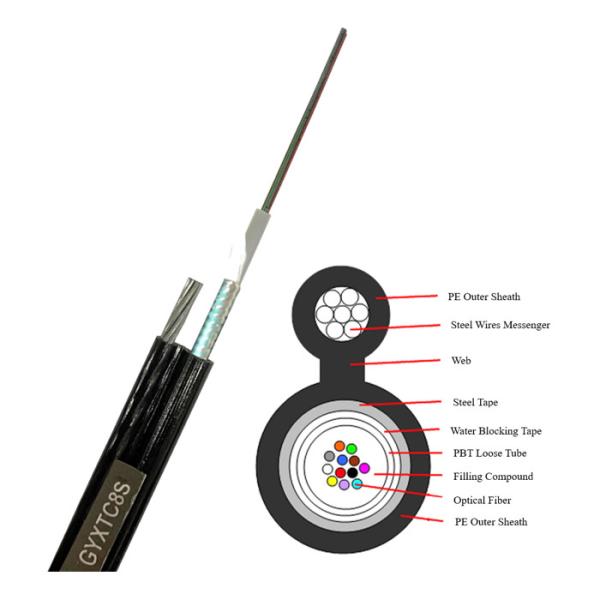

    The structure of GYXTC8S optical cable is that 250μm optical fiber is sheathed in a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. A layer of plastic-coated aluminum tape (APL) is added to the sheath outside the cable core in the form of longitudinal wrapping, and finally a polyethylene sheath is squeezed together with the steel strand to make the cross section of the "8" shape.

    Product Standards
    GYXTC8S optical cable complies with YD/T1155-2011 and IEC60794-1 standards.

    Features

    1. Filling with water-blocking ointment step by step, full-section water-blocking of optical cable unit
    2. Stable fiber excess length control
    3. After the cable is formed, the additional attenuation of the optical fiber is less than 0.02dB/Km, and the dispersion value does not change
    4. Excellent environmental performance, applicable temperature range can reach -40℃~+70℃

    Technical data

    Cable Type
    Fiber Count
    Cable Diameter mm
    Cable Weight kg/km
    Tensile Strength
    Crush Resistance
    Bending Radius
    Long/Short Term
    Long/Short Term
    Static/Dynamic
    N
    N/100mm
    mm
    GYXTC8S
    2-12
    7.1*10.9
    166
    2000/6000
    300/1000
    10D/20D
    GYXTC8S
    14-24
    9.3*14.6
    217
    2000/6000
    300/1000
    10D/20D


    Details

    Fiber Core

    1. Corning/YOFC/FiberHome/Fujikura Fiber Core Options


    2. Single Mode/Muli Mode Options


    3. 12 different Colors Option, can do as your request

    Armored

    PSP/APL Armored,.Plastic coated steel strip Increase the mechanical strength of the GYXTC8S cable

    Improve corrosion resistance

    7*1.0mm Steel for Overhead, Aerial


    PE Outer Jacket Material

    High Quality New PE Material

    1. Smooth appearance

    2.Flame retardant

    3.Corrosion protection

    4.Long service life



    Application


    Packing





































    Quality GYXTC8S Outdoor Single Mode 2 4 8 12 24 Core Armoured Figure 8 Aerial Optical Fiber Cable for sale
