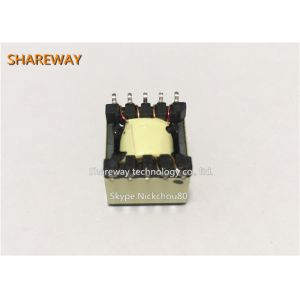

    H93TX1 Reinforced Insulation Transformer For IT900 PIM908 Power Line Communications

    Ask Lasest Price
    Brand Name : Shareway
    Model Number : H93TX1
    Certification : CE UL RoHS ISO9001:2008
    Price : Supportive
    Payment Terms : TT,Paypal
    Supply Ability : 300K.PCS/Month
    Delivery Time : Stock or 3 weeks
    • Product Details
    • Company Profile

    H93TX1 Reinforced Insulation Transformer For IT900 PIM908 Power Line Communications

    H93TX1 Reinforced Insulation transformer for IT900 PIM908 Power Line Communications application


    Electrical specification of the H93TX1 Reinforced Insulation transformer for IT900 PIM908 Power Line Communications application

    ParameterPins under testTest conditionsSTD Tolerance
    Breakdown Voltage1:8Vac 3600Vrms 2s
    Inductance8-510kHz 0.1V>= 0.6mH
    Leakage Inductance8-5 with (1-3,2-4 shorted)1MHz 0.1V<= 1.0uH
    Interwinding Capacitance1-8 with (2-3 shorted)10kHz 0.1V<= 40pF
    DCR1-4 with (2-3 shorted)@ 25℃0.32 ohm Max
    DCR8-5@ 25℃0.40 ohm Max

    HOW TO ORDER
    1. Please send me your datasheet or part number you need.
    2. We will offer the replacement quotation for your reference
    3. The free samples are available for your approval.
    4. After sample testing, we will step into the mass order.
    5. The Proforma Invoice will send for your confirmation
    6. After the goods are finished, we send the goods to you and tell you the tracking number.
    7. We will track your goods until you receive the goods.

    Remarks:
    1. Sample orders are available.
    2. Price is negotiable for orders of large quantities.
    3. Customized orders (OEM/ODM orders) are available.
    4. Contact us for the available flavors list. International Certifications:
    1. ISO9001:2008
    2. UL
    3. Reach
    4. RoHs
