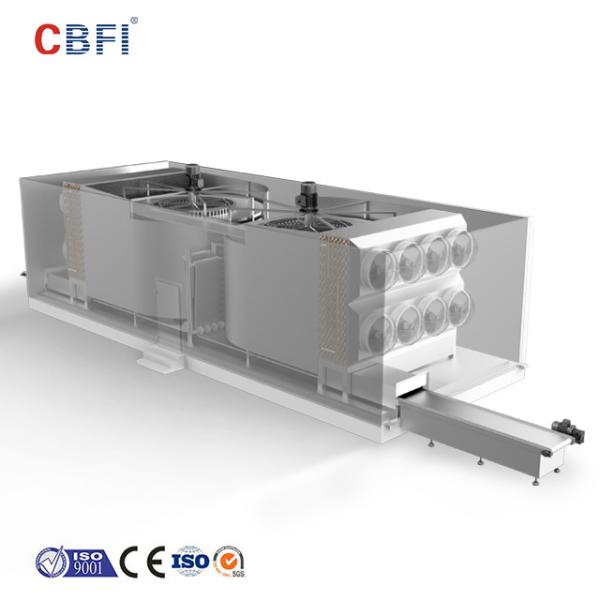

Economical double Spiral Freezer Industrial Seafood Shrimp Fish Iqf Spiral Tunnel Quick Freezer

Economical Spiral Freezer/Industrial Seafood Shrimp Fish Iqf Spiral Tunnel Quick Freezer

Quick freezing, the pre-processed food is placed in a low-temperature quick-freezing device, quickly frozen, and the core temperature of the food is reduced from -1 °C to -5 °C within 30 minutes through the maximum ice crystal formation zone, and the ice crystal diameter formed is less than 100 μm. The core temperature of the quick-frozen food must reach -18°C or less.

Product details

Refrigerant supply method

Provide hygienic evaporator, using advanced liquid supply method, heat exchange efficiency is more than 20% higher than traditional forms

Annular duct design

Symmetrical, smooth annular air duct design enhances heat transfer effect.

Stainless steel mesh belt

It can be equipped with freezer professional stainless steel mesh belt, plastic mesh belt and other conveyor devices.

Stable and reliable quality

The warehouse body adopts the library plate manufactured by the fully imported library plate production line, and the quality is stable and reliable.

Intelligent control system

Equipped with intelligent control system, equipped with automatic detection and alarm light device, convenient for operation and maintenance.

Features

1. High-strength mesh belt made of imported special equipment, SUS304 food-grade stainless steel, conveyor belt with flange on both sides.

2. The loose library body greatly facilitates cleaning, maintenance and overhaul.

3. The internal components fully meet the hygienic requirements for export food (HACCP) processing.

4. Long-life design, assembled internal structure (different from welded structure), easy to maintain and maintain.

5. Reliable transmission control made of all stainless steel materials, advanced technology of European BBY company.

6. The symmetrical and smooth annular air duct design inside the equipment, the inlet and outlet do not run cold.

7. High efficiency evaporator (efficiency is 25% higher than ordinary evaporator), super large fins with air turbulence structure, produced by the latest stamping process.

8. The stainless steel material of the library floor is made of an integral 3mm thick bottom surface, which will never leak without any risk of freezing and cracking the bottom plate.

9. The main electrical control components are produced by the French Schneider Electric Company.

10. Equipped with European standard waterproof stainless steel control cabinet.

11. The secondary conveyor tension reducer adopts SEW brand products, which has high efficiency and long life.

12. With hundreds of production experience of this type of equipment, very familiar with the requirements for freezing various products.

Program technical parameters

Guangzhou Icesource Co., Ltd. (trademark CBFI), a pioneer in the large-scale freon refrigeration and ice making equipment industry, a large ice plant and cold storage engineering solution service provider, is an innovative and entrepreneurial high-tech enterprise that integrates research, design, manufacture, sales, and after-sales service of a large-scale edible ice making equipment, large-scale industrial ice making equipment, high-end commercial ice maker, complete ice making system and small and large cold storage project. The main products are various kinds of ice making machine(direct-cooling block ice machine, block ice machine, tube ice machine, cube ice machine, flake ice machine, plate ice machine, pure ice machine and fully automated ice plant). Products are widely used in food, fishery, retail, fruits and vegetables, aquatic products, chemicals, medical, construction, minerals and other fields for cooling, storage and preservation.

Introduction to CBFI Company

Certifications

Enteprise Honor

Our partners

Packing process

Our Factory

CBFI Quality Management Department

CBFI Quality Management Department is an important control method for processing quality. It equipped with the most advanced inspection equipments The professional control devices,it can provide accurate reference data to choose the most suitable material and accessories, which also effectively control parts quality. Besides, it also provides digital information for engineers and quality controller to determine feasibility for spare parts after processing.

This is the working processing of quality control.

Chooing steady quality supplier. After purchasing raw material, duing testing if it is proved well, then we will arrange these eligible matrial that come into warehouse.

When the machine finish fixing and come into testing working conditon. Every worker will be responsible for their equipment. They will give out fact testing date and results.After proving testing date is accord with delivery standard. Then CBFI Quality Management Department will allow these equipment that go to packing department and waiting for cleaning and packing.

Before delivery, CBFI Quality Management Department should check all mark and packing conditon. If it is prove it is accord with exporting standard and customer's requirement. Then they will allow these equipment come into fininshed product area.

Of course CBFI Quality Management Department have the right to make sample testing for every production step to make sure product quality.

CBFI means Customer Benefits From Icesource. We will take care of product quality.
