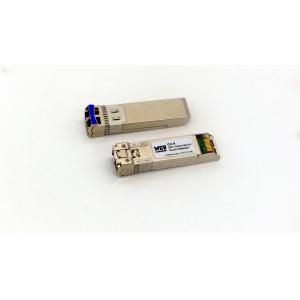

1000BASE-LX 1310NM 10KM SFP DDM Transceiver For Optical Links

1000BASE-LX 1310NM 10KM SFP DDM Transceiver For Optical Links

1000BASE-LX SFP 1310NM 10KM DDM Transceiver

Application

Gigabit Ethernet Switches and Routers

Fiber Channel Switch Infrastructure

Ethernet/SDH/OTN Sonet

Other Optical Links

Features

• Operating Data Rate up to 1.25Gbps
• 10km with 9/125 μm SMF
• Single 3.3V Power Supply and TTL Logic Interface
• Hot-Pluggable SFP Footprint Duplex LC Connector Interface

• Class 1 FDA and IEC60825-1 Laser Safety Compliant

• Built-in digital diagnostic functions, including optical power monitoring

• Compliant with MSA SFP Specification

• Compliant with SFF-8472

Description:

The SFP Transceiver OP-1G-LX-31 series single-mode transceivers are small form factor pluggable modules for bi-directional serial optical data communications such as Gigabit Ethernet 1000BASE-LX and Fiber Channel 1x SM-LC-L FC-PI. It is with the SFP 20-pin connector to allow hot plug capability. This module is designed for single-mode fiber and operates at a nominal wavelength of 1310nm.
