    4'' High Pressure Hose Crimper Hydraulic Hose Crimping Machine Mining

    Ask Lasest Price
    Brand Name : MENSION
    Model Number : MS-S102
    Certification : CE RoHS
    Price : Contact Us
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Sets Per Month
    Delivery Time : 2 - 7 Working Days
    • Product Details
    • Company Profile

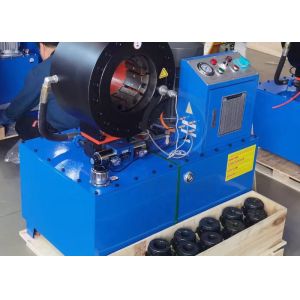

    4'' High Pressure Hose Crimper Hydraulic Hose Crimping Machine Mining


    CRIMPING MACHINE MS - S102 FOR HYDRAULIC HOSE


    DESCRIPTION


    MS-S102 hose swage machine is a 4'' high pressure hose crimper which is with crimping range for hose from size 1/4'' to size 4'' one to six layers braided with high pressure. It offers with standard 16 normal dies and 1 adapter die sets. Max opening without dies can be up to 187mm. Usally, this hose crimping machine can be used in Mining machinery repair and maintenance industry.


    MAIN ADVANTAGES


    1. Fast delivery time;

    2. Advanced oil cylinder;

    3. High speed;

    4. Large production.


    TECHNICAL DATA


    Model

    MS-S102 Crimping Machine for Hose

    Crimping Range

    14 - 187 (mm)

    Crimping Force

    1500 (T)

    Hose Size

    1/4 - 4 (inch) 6 Layers

    Max. Opening

    30 (mm)

    Die Sets

    16 + 1

    Die Set Type

    51 + 102

    System Pressure

    31.5 (Mpa)

    Accuracy

    0.05 (mm)

    Control

    MS

    Standard Voltage

    220 (V) / 380 (V)

    Motor Power

    4 (KW)

    Length

    850 (mm)

    Width

    530 (mm)

    Height

    980 (mm)

    Weight

    500 (KG)



    51 HOSE CRIMPER DIE SETS


    Die No.

    Crimping Range

    Length

    6*

    6 - 8 mm

    35

    8*

    8 - 10 mm

    35

    10*

    10 - 12 mm

    35

    12*

    12 - 15 mm

    35

    15

    15 - 19 mm

    60

    19

    19 - 23 mm

    60

    23

    23 - 26 mm

    60

    26

    26 - 31 mm

    60

    31

    31 - 36 mm

    70

    36

    36 - 41 mm

    70

    41

    41 - 47 mm

    70

    47

    47 - 55 mm

    80

    55

    55 - 63 mm

    80

    63

    63 - 75 mm

    80

    75

    75 - 87 mm

    100
    8787 - 100 mm120
    100100 - 115 mm120
    115115 - 130 mm120
    130130 - 147 mm120

    NOTE


    - * for non standard die sets;

    - Customized die sets are available;

    - Special voltage 110V, 208V, 240V, 415V are availbale;


    OPTIONAL


    - Quick Change Tool

    - UC control;
