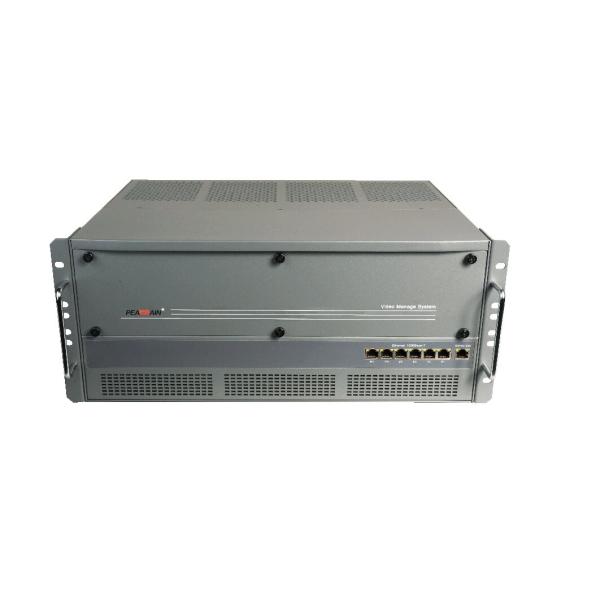

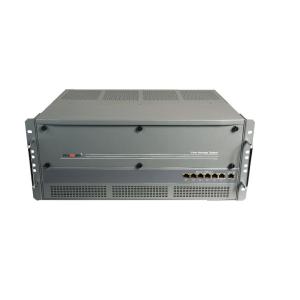

PM60MC3-00-32H IP Video matrix switcher, Decoder with 32ch hdmi
output @ 64ch split per hdmi output, Video wall controller,
H265/264 IP decoding, Video over IP, Video split, splicing, cruise,
PIP, etc. video wall management.
Description:
PM60MC3-00-32H ip video matrix switcher is latest decoding matrix
and decoder, can decode stream of H265/264 & RTSP,it is also a
Video Wall Controller system with modular chassis, could have up to
32ch HDMI output by one chassis.
Every modular could decode 2ch 4K or 8ch 1080p, perfect video wall
management, including split, splicing, PIP, Plan, Cruise, etc.
simple operation like analog system.
Netclient software could configure video soureces including RTSP,
ONVIF,etc., with video preview, PTZ control panel, etc. for
operataions on PC.
standalone keyboard is opitional, very similar like analog
operation like 〔1〕〔CAM〕+〔1〕〔MON〕.
Functions:
● Support for network media, H265/264, RTSP data input
● Support computer keyboard & Mouse direct input, U Flash storage.
● Modular chassis with 16 slots to have up to 32ch HDMI output.
● Optional to have input modular of HDMI @ 4K resolution
● Support audio input and output.
● It can decode 8K video.
● Each Video Output can identify optimum resolution automatically,
or allow the user to change the output resolution manually.
● every modular can decode 2ch at 4K@30hz or 8ch at 1080p.
● Support video-splitting output, up to 8x8 splitting
● Support monitor splicing by any size ,splitting, windowing,
zooming in & out
● Support Cruise, Plan, split, splicing, etc. display mode, Plan
configuration and management
● Optimize video, it can make video stream smooth and improve
network jammed .
● Furnish with Net client All-in-one software, Allows the user to
graphically configure the Video wall and discover the IP cameras
present on the local area network.
Specifications
| Model | PM60MC3H/00-32H |
| Physical |
| output | Up to 32ch HDMI by one chassis |
| input | Optional physical input of HDMI, HD SDI, BNC, etc. |
| HDMI output resolution | 1024×768P@60Hz,1280×720P@60Hz, 1366×768P@60Hz, 1920×1080P@30Hz,
3840×2160@30Hz |
| Video |
| Video decoding | H.265,H.264 |
| Video stream resolution | 4K,1080P,1080I,720P,D1 |
| Decoding capability | One modular can decode 25ch 4K or100ch 1080p or 200ch 720p or 400ch
D1. |
| Splicing | 32 by one chassis, maximum 64 by 2 chassis cascading, it can splice
the monitors connected on HDMI output. user-defined splicing. |
| Splitting | 1/4/6/8/9/16/25/64, and user-defined splitting |
| Windowing and Cruise | support, it can set windowing on monitors to have maximum 128
layers' windowing. |
| OSD display | it can display OSD info. including window number, channel number,
label, etc. |
| Audio |
| encoding and decoding standard | support G.711, G.726, ADPCM |
| Audio enable/mute | it can turn on all audio and it can set one channel by quick
operation. |
| input | support audio embedded in HDMI input or individual input. |
| Maintenance |
| Basic applications | multiple user log in and log out, maximum 72 users on-line at same
time. operation permission definition; Supports video switching and
controlling. |
| Support Segmentation display mode management. |
| Automatic inspection, setting and call. Supports rollback playing. |
| System management and configuration | PENET protocol available, once integration,the third party can
manage this decoder, configuration upload and reload, operation
permission setting and management |
| Maintenance | system log available. |
| Fault detection and report. |
| support online updating. |
| Port and connectors |
| Ethernet | 6ch, 1000Mbps adaptive RJ45 port,1 master and 5 slave |
| Audio input | No physical input of audio |
| Audio output | 32ch, one modular with 1 audio output of Ф3.5 socket |
| RS232 | 1 |
| Other functions |
| Second development | support, SDK available |
| Time synchronization | internal RTC, it support automatic time sync. for multiple device. |
| offers PENET protocol, it can synchronize time of time server. |
| Alarm input | support network alarm info. access. |
| Alarm process | support automatic or manual alarm process. |
| Monitor control | offers control port of monitor to control the monitors. |
| Stream self-adaptive | Support stream self-adaptive function, it can close this function,
it can automatically choose main/sub stream to output to monitors. |
| Stream media forwarding | embedded Stream media forwarding, one camera takes steam one time. |
| smooth playing function | support smooth playing function, it can automatically adjust and
optimize stream stuck or pause caused by network transmission. |
| Decoding delay | 150ms maximum |
| Power supply | AC100V～230V. optional to have second power supply modular for stand by. |
| Power consumption | 190W |
| Working temperature | 0～50℃ |
| Working humidity | 10%～90%； |
| Dimension | 480.0mm(W)×360.0mm(D)×190.0mm(H) |
| Weight | 12KG |
