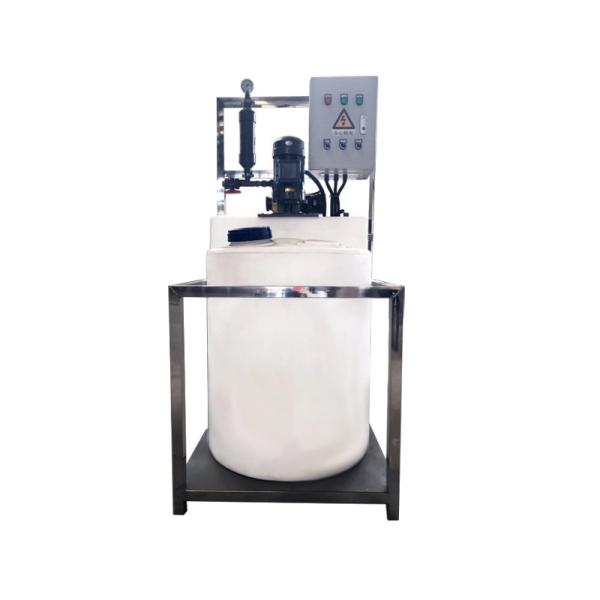

High Efficiency Anti-Corrosion Automatic Chemical Dosing System
The dosing device is configured in the mixing tank according to the
required reagent concentration, and is put into the solution tank
after being stirred evenly by the agitator, and the prepared
solution is delivered to the dosing point or the system by the
metering pump. The complete set of dosing device has the
characteristics of compact structure, simple safety and easy
operation. The dosing device can also carry out targeted design,
configure necessary components and realize automatic remote control
and other functions according to the requirements of different
process flows of users.
Classification
Dosing device is also called dosing system and dosing equipment.
The dosing device is a complete set of devices that inject chemical
solution into various systems according to the process flow. The
device can be divided into three categories according to the
application situation.
1. Oilfield dosing device. It is mainly used to inject flocculants,
scale inhibitors, corrosion inhibitors, demulsifiers and other
chemicals into the wellhead and other systems on the platform
during oil production.
2. Boiler dosing device. It can be used for adding ammonia and
hydrazine to boiler feed water, condensate water, shutdown
protection, and phosphate to steam boiler, mainly for power plants
and power stations.
3. Water treatment dosing device. In the process of water
treatment, add chemicals to tap water, waste water and sewage. It
is mainly used for water supply and drainage treatment,
environmental protection and other technological processes. Such as
waterworks, hotels, restaurants, swimming pools, sewage treatment
plants, etc.
Main Features
A. Centralized design, small floor area, simple structure and
stable performance;
B. Accurate measurement, convenient adjustment, good economy, easy
installation and maintenance;
C. The pump is installed by suction, which is not easy to block,
has a long trouble-free operation time and low operating cost;
D. Excellent corrosion resistance and long service life.
E. Solution tank material: PE, GRP, carbon steel rubber lining, 304
stainless steel, 316 stainless steel;
F. Mixer material; 304 stainless steel, 316 stainless steel;
G. Material of overflow part of metering pump: PP, PVC, PVDE,
SS316;
Parameters
| Type | QJY-500 | QJY-1000 | QJY-1500 | QJY-2000 | QJY-3000 |
| production abilityQ(L/h) | 500 | 1000 | 1500 | 2000 | 3000 |
| Size | 900x1500x1650 | 1000 x 1625 x1750 | 1000 x 2440x1800 | 1220 x 2440 x180C | 1220x3200x2000 |
|
| Powder Dosing PowerNi(KW) | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 |
| blender | Blade diameterG(mm) | 250 | 250 | 250 | 250 | 250 |
| Vertical spindle speed(i/min) | 96 | 96 | 96 | 96 | 96 |
| PowerN2(KW) | 0.55 x 2 | 0.55x2 | 0.55 x 2 | 0.55x2 | 0.55x2 |
| Dosing screw pump | Flow Q2(mV h) | 1 | 1 | 1.5~2.0 | 1.5-2.0 | 3.0~ 5.0 |
| Lifth(m) | 20 | 20 | 20 | 20 | 20 |
| Power N3(KW) | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 |
| Water Inlet Dia(mm) | 20 | 20 | 25 | 25 | 32 |
| Water outlet Dia(mm) | 20 | 20 | 25 | 25 | 32 |
| Installation | B | 900 | 1000 | 1000 | 1220 | 1220 |
| L | 1500 | 1625 | 2440 | 2440 | 3200 |
| H | 1650 | 1750 | 1800 | 1800 | 2000 |
| Hi | 800 | 1050 | 1050 | 1050 | 1350 |

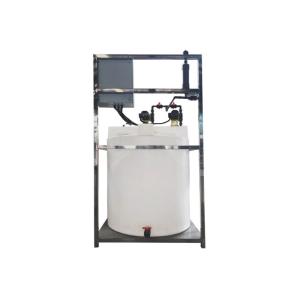

Real Picture
Company Profile
Jiangsu Longdai Environmental Protection Group Co., Ltd. is an
environmental protection equipment
manufacturer with 11 years of experience. It has provided a large
number of sophisticated
environmental protection equipment at home and abroad, established
three branches in China, and cooperated with many universities to
build Longdai R&D center. There are 4 middle doctors, 10
masters, and 25 senior engineers.
Main business: "Petrochemical Wastewater Treatment, Urban and Rural
Wastewater Treatment,
Waste Gas Collection and Treatment, Industrial Wastewater
Treatment, etc."
Main equipment: "Integrated treatment equipment, grille
decontamination machine, sand water
separator, mud scraper, air flotation device, dosing device, sludge
thickener, rotary drum micro filter, conveyor, etc."
The technical team participates in technical exchange meetings
every year, exchanges experience with professionals, continuously
improves technical competitiveness, and provides customers with the
clearest and most practical design solutions.
The processing team controls the manufacturing details of each
equipment, and manufactures
the most sophisticated and reliable equipment for customers.
The company has passed ISO9001-2008 international standard quality
system certification.
We look forward to contacting you, please give us a chance. I hope
we can trust each other for
mutual benefit and win-win results.
FAQ
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or
directly contact us by the clicking the “contact” icon. We Can
Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental
protection equipment ,professional for Sludge screw press
dewatering
Machine ,Which Is Very Close To Shanghai With Only Less Than 3
Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different
Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000
Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time
Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience.
We Cooperate Over 800 Customers in China And Overseas. We Export
Nearly 60 Countries All Over The World. And We Have More Than
60+Patents, CE,ISO 9001,SGS Certificates.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field
Maintenance Repair Service
