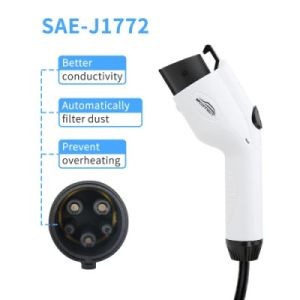

7kw 3.5kw 16A 32A SAE J1772 Type 1 Indicator Light Portable Car
Chargers EV Charger
This car charger is mainly designed for home use, which is lighter
and safer. Available in 16A and 32A, three different designs:with
indicator light , with LCD screen , adjustable current ;
We accept customized color and customized packing , as well as OEM
with your brand
| Product Name | SAE J1772 Model 2 Charger |
| Length | 5m or customized length |
| Electrical Performance: | |
| Rated current | 16A/32A |
| Operation Volatge | 110V/250V |
| Insulation resistance | more than 500M Ohm(DC500V) |
| Contact resistance | 0.5m Ohm max |
| Terminal temperature rise | less than 50K |
| Withstand voltage | 1500V |
| Mechanical Properties: | |
| Mechanical life | no-load plug in/out more than 10000 times |
| Coupled insertion force | 45N~100N |
| Impact of external force | can afford 1M drop |
| Environmental Performance | |
| Operating Temperature | -30~+50ºC |
| Applied Materials | |
| Case material | thermoplastic, flame retardant grade UL94 V-0 |
| Termminal | Copper alloy , silver plating |
| Control box function | leakage protection;
overvoltage under-voltage protection;
over load protection;
lightning protection;
ground protection;
over-temperature protection; |
| Features | Easy: Charge at home, at work, or anywhere with the socket. No
installation is required, just an intuitive pairing process. Plug
and charge, wherever you are;
Safe: Protecting Earthing detection;
Designed for electric cars using the SAEJ1772 standard, this car
charger offers a maximum charging speed of 3.6 kW per hour. The
precision engineering of the internal circuit board allows
automatic detection and correction of any problems during charging,
including any issues with minimal, unstable, or excessive voltage,
current, frequency, earth leakage, and temperature even during
lightning and electrical storms. |
Sichuan Hongshunjin Co., Ltd. was established in March 2020. Located in the beautiful Suzhou,
close to Shanghai, the factory covers an area of 28,000 square
meters.
We are a high-tech production enterprise integrating R&D,
design, production, sales and service. The main products are: new
energy vehicle charging product series (gun/seat/mode 2/wiring
harness/control unit), auto molds and injection molding products.
The company has strong R&D and design strength, sophisticated
production technology, and excellent after-sales service. At the
same time, it cooperates with authoritative institutions such as
Hefei University of Technology to continuously innovate and create
excellence, continuously introduce new products, continuously apply
new technologies, and strive for excellence, always climbing the
commanding heights of the industry.
In November 2020, it passed the ISO9001 quality management system
certification, and in December 2020, it passed the CQC
certification, and the IATF16949 automotive product quality system
is under application.
The company has a total of 38 intellectual property applications,
11 of which have been authorized/registered, including 4 invention
patents, 8 design patents, 1 integrated circuit, and 2 trademarks
The company has become the designated supplier (secondary) of
passenger cars such as SAIC, JAC, Chery, etc., and directly
supplies WM Motor, and also closely cooperates with State Grid (Xu
Ji).
