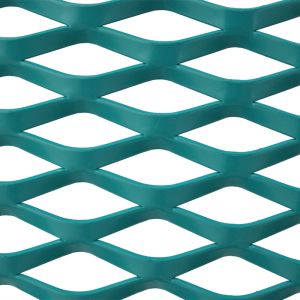

A1060 Facade Decoration Powder Coating Aluminum Expanded Mesh Cladding
General Production Information
Production introduction
Facade cladding is extremely important both for functional and for
aesthetical reasons. Vertical external cladding is a filter, a
physical bordering, it's a way the building mingles with the
environment and it influences the perception we get from the
building. Depending on the geographic area, the use, the climate,
the design and the budget we can choose from several types of
facade cladding. Metal panels, holed and ashlared sheets and metal
mesh to make complete facades.
As one of the important facade technical elements in high-rise
buildings, expanded aluminum mesh cladding is widely used because
of its simple structure, soundproofing, fireproof and easy
instrallation. Ares metal is a professional steel mesh manufacturer
with 33 years of OEM history. Mainly provide the panel part for the
Facade cladding. The panel of the aluminum mesh cladding is mainly
welding composed of steel mesh and frame.
Ares metal can provide surface treatments such as painting,
anodizing and fluorocarbon coating. Our expanded aluminum is
produced from aluminum sheet or coil that is simultaneously slit.
Material: Aluminum 1060
Material characteristics:
1060 aluminum is a 1000-series aluminum alloy: it is considered
commercially pure, and is formulated for primary forming into
wrought products. 1060 is the Aluminum Association (AA) designation
for this material. In European standards, it will be given as EN
AW-1060. A91060 is the UNS number. Additionally, the Echemical
designation is Al99,6.It can have the lowest tensile strength among
the 1000-series alloys in the database.
Surface Treatment: Powder Coating
Powder coating is a dry finishing process in which free-flowing,
thermoplastic or thermoset powder material, rather than a liquid
suspension, is applied to a surface, melted, and then allowed to
dry and harden into a protective coating. Typically, the powder is
applied via electrostatic spray deposition (ESD) to an electrically
grounded metal substrate. Once the powder coating is completely
applied to a part, it is then heat cured in an oven until the
powder melts and flows together. Powder coatings can also be
applied by dipping preheated parts into powder material within a
fluidized bed. The powder melts and fuses with the part’s heated
surface upon contact. In either case, as the part dries and cools,
the cured powder forms a smooth, hard finish.
Compared to conventional liquid coating methods, powder coating
offers several advantages. These include:
- More durable coatings
- Capabilities for thicker and specialty finishes
- Less environmental impact
- More efficient curing and drying processes
- Greater material utilization
Specification
| Thickness | Strand Width | Hole Size |
| 2.0 mm | 5.0 mm | 25 × 50 mm |
| 2.5 mm | 5.0 mm | 30 × 60 mm |
| 3.0 mm | 5.0 - 10.0 mm | 40 × 80 mm |
| 2.0 - 3.0 mm | 5.0 - 15.0 mm | 50 × 100 mm |
| 3.0 mm | 20.0 - 30.0 mm | 90 × 200 mm |
| 3.0 mm | 20.0 - 30.0 mm | 100 × 250 mm |
Our advantages:
- We have the capability to customize any size or opening style to
meet your specific needs.
- We have a mature R&D team to upgrade our technology.
- We have 33 years of production management experience, and a
complete manufacturing chain.
