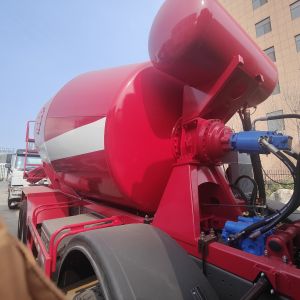

LHD 8X4 SINOTRUK HOWO Concrete Mixer Truck 371HP

    Buy cheap LHD 8X4 SINOTRUK HOWO Concrete Mixer Truck 371HP from wholesalers

    Buy cheap LHD 8X4 SINOTRUK HOWO Concrete Mixer Truck 371HP from wholesalers
    • Buy cheap LHD 8X4 SINOTRUK HOWO Concrete Mixer Truck 371HP from wholesalers
    • Buy cheap LHD 8X4 SINOTRUK HOWO Concrete Mixer Truck 371HP from wholesalers
    • Buy cheap LHD 8X4 SINOTRUK HOWO Concrete Mixer Truck 371HP from wholesalers
    • Buy cheap LHD 8X4 SINOTRUK HOWO Concrete Mixer Truck 371HP from wholesalers

    LHD 8X4 SINOTRUK HOWO Concrete Mixer Truck 371HP

    Ask Lasest Price
    Brand Name : SINOTRUK
    Model Number : ZZ1317N3667B1
    Certification : ISO/3C/BV/IFA/SGS
    Price : negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2,000units per month
    Delivery Time : 25 working days after received your advance payment
    • Product Details
    • Company Profile

    LHD 8X4 SINOTRUK HOWO Concrete Mixer Truck 371HP

    SINOTRUK HOWO 371HP CONCRETE MIXER TRUCK


    Description:

    SINOTRUK HOWO 371HP CONCRETE MIXER TRUCK ZZ1317N3667B1
    The concrete mixer series products are produced with German patented technology.
    The material requirements, production process and acceptance standards of the products all adopt the technology provided by German standards.
    This product adopts imported reducer, motor and hydraulic pump. The power output is transmitted from the secondary chassis to the hydraulic pump through the shaft power. The hydraulic energy generated by the hydraulic pump is transmitted to the hydraulic motor through the oil pipe. The hydraulic motor converts the hydraulic energy into kinetic energy and then reduces and increases the twist to the mixing tank through the reducer. This is achieved by adjusting the angle of the servo controller (double acting variable) of the hydraulic pump
    By controlling the rotation and rotation speed of the mixing drum, the concrete feeding, mixing and discharging operations are realized.


    Specification:


    Sinotruk Howo 14CBM 371HP 8X4 LHD ZZ1317N3261W
    ModelZZ1317N3667B1
    Drive Type8×4
    Engine
    WD615.47 , 371HP( Euro II)
    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
    Displacement : 9.726L
    CabinHW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
    TransmissionHW19710(10 forwards & 2 reverses)
    Front Axle1×HF9 ( 9 Tons)
    Driving AxleHC16, 16Tons
    SteeringZF8118 hydraulic steering with power assistance.
    Clutch

    Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

    air assistance

    Rim/ Tire315/80R22.5
    Wheel base1800+3200+1350(mm)
    Overall dimension10207×2496×3115(mm)
    Tank body Capacity14CBM
    The curb weight12650(Kg)
    Gross weight25000
    Max. speed102km/h
    ColorWhite, red, green, golden and so on.



    Applications:


    It is applicable to infrastructure construction businesses such as mixing and transition concrete, construction site, road repair, etc

    Competitive Advantage:

    1) The product has advanced technology, complete functions, excellent performance, reliable quality and convenient operation

    2) The body structure is optimized, the special mold is made, the appearance is beautiful, the concrete is mixed, the discharge is uniform, and the residual rate is low.

    3) Imported hydraulic pump, hydraulic motor and reducer.

    4) High strength steel plate is adopted, with long service life.

    5) The overall structure is optimized, the center of gravity is low, and the operation efficiency is high.

    6) The product range is wide, and the tank capacity is 6-18 cubic meters.

    7) Select a variety of auxiliary devices.

    8) Match all concrete mixer chassis.

    9) Based on strong technical support and top technology, the truck is of high quality and more reliable
