Multi-functional School vending machines and recycle bottle with
Remote Control System
Brief Introduction :

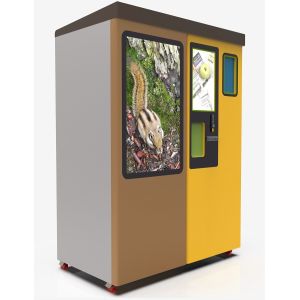

RVM-3107 Reverse Vending machine (RVM) is a multi-functional
vending machines and recycle plastic bottle, metal can.
One machine integrate multiple function, reduce the operation fees,
increase the return. with the remote control management software
easily to manage the Vending machines and business operation.
RVM-3107 (RVM) are commodity-driven business models container
collection solution for plastic bottle,metal can, equipped with
compressor; offer various reward option- coupon, digital deposit. with printing module support print coupon,receipts and vouchers.
Beside recycle function, RVM-3107 RVM build in vend systems,
support vend vary items from small to large such as snacks, drinks
and chocolate, headphone, shopping bag, gift, others. User can
order and pay via POS, QR code, E-wallet.
Optional with cooling function, size option of touch screen from
21" to 65" .
Parameters:
| Model# | RVM-3107 | Description: | Large Smart RVM+ VM |
| Size (mm) | 1950H*2400L*1050D | Container | Plastic bottle, metal can |
| Compactor | yes | Sorted | yes |
Special features
| 1. UV sterilization 2. RVM with 4 protections 3. Over flow alarms 4. Thermal printer | Storage capacity: | 800pcs plastic bottle 600pcs metal cans |
| Voltage/ Frequency | AC110V, 230v, 50/60HZ 0.5A /10A | Output: | Max: 350W Idle status: 150w |
| recognition system | Bar code matching Configuration scanner Weight sensor | Reward | Coupon Donation Redeem gift |
| Operated | APP, QR code Coin/ debit/ credit card | Touch screen | 42” |
| Process speed | 20pcs | Working Temp Humidity Noise | -10℃ to +45℃ <95%, <60db |
| Vend solution | a.Spring rods b.Conveyor belt | Storage capacity | Max load 50-90 SKU, 1000-1600pcs |
| Suitable for | Semi-Outdoor | Network Solution | LAN,GPRS, 3G, 4G |
| Operate software | a. Standard in English b. Customized c. Manual operate | Remote control software | a. Standard b. Customized c. Standalone |
| G.W: | 350KGS | waterproof | IP54 |
Quick Detail:
1. 32" touch screen
2. Material types: plastic bottle, metal can
3. with compactor
4. Productivity: 20 pcs per min
5. Storage Capacity up to 800 pcs plastic bottle, 600pcs metal can
6. Reward systems: Digital Deposit, Coupon,Donation
7. Automation: Barcode, material and weight sensors
8. support vend vary products from small to large
9. Max load 50-90 SKU,1000-1600 pack depend on the size of package
10. payment option debit card, credit card, QR code
11. Container size:150ml - Max 1.5litres
12. Over flow alarms
13. anti-clamping hand protection (door)
14. Non-conforming image identification Reject
15. No-conforming weight identification Reject.
16. 4 protections-OVP,SCP, RVP, RCD
More Designs
Building Circular Economy, Improve tge Recycle Industry Chain
Management Platform
a . Introduction and samples
b. Management Center
Circle 8000 Remote management Systems
