Flow Direction Reversible Rubber Lobe Pump For Agriculture And
Biogas
Product Overview
Accuvon Rubber Rotary Lobe pump are super self-priming. This
positive displacement is similar to a gear pump, but the lobes
don't touch each other and turn independently. Lobe pumps are
utilized for transfer liquid of various viscosity and air/water
mixture.
The feature a robust design (in between bearing support), that
enable operation operation at high pressure and low vibration.
Intermediate isolation chamber, ensure the gearbox are isolated
from medium, even if there a leak.
Built-in gear reducer is optional, for space saving.
Material: Cast iron/Cast steel/Stainless steel and various polymer.
Specifications:
| Description | Rubber lobe pumps |
| Rotor | Rubber rotor |
| Seal | Double mechanical seal |
| Axial and radial casing protection | High-strength steel , resistant to wear |
| Drive | Electric motor |
| Material of pump | Carbon steel |
| Pressure | 0-1.2 mpa |
| Flow | 4-246 m³/h |
| Power | 11-55 / KW |
| Work efficiency | Up to 85% |
| Rate of flow | 6.828 l/rev |
| Self - priming | Up to 9.5m vertical / 30m horizontal |
| Medium | High-corrosive / high-viscous |
| Custom printing | Acceptable |
Parameter of AF 150
| Drive | Weight | Dimensions |
| KW | KG | L / mm | H / mm |
| 7.5 | 518 | 1703 | 548 |
| 11 | 562 | 1763 | 604 |
| 15 | 615 | 1808 | 604 |
| 18.5 | 638 | 1953 | 654 |
| 22 | 726 | 2003 | 654 |
| 30 | 759 | 2011 | 694 |
Design 1 | Short , straight pipe connectors with connection flange
and gasket , in mm / inches approx.
| AF 150 | DN 100 mm | DN 125 mm | DN 150 mm | DN 200 mm | DN 250 mm |
Features:
Gas-liquid two-phase seal technology: it adopts the special
mechanical seal developed by famous domestic mechanical seal
experts, with unique sealing surface structure, sufficient
lubrication, no air resistance, and sufficient cooling medium
convection, which can effectively prevent dry grinding, high
temperature, cracking and failure of sealing surface, and ensure
the normal operation of pump unit. No clogging, strong passability:
ordinary plastic bags, woven bags, sand, mud, hair and other sundry
will not affect the use of the pump.
Structure:
The whole body uses the stainless steel materials, equipping with
common or anti-explosion electric motor. It's suitable for
conveying liquid materials in various places and makes sure the
production procedure in accordance with GMP quality standard
Advantages:
Compact construction,high performance in a compact design,taking
less area than normal screw pump does (2/3~1/4 of which only)
Convenient Maintenance in Place ,reduce the time of maintenance and
downtime.No need to disassemble the piping or lift machine..
Replacement of wear parts in the blink of an eye, in-situ by
service personnel.
Smooth pumping action.
Large bucket geometry and short passage through the pump provide a
smooth transfer of the pumped fluid.
Can be used for delivery mixing gas,liquid,particle , big
lumps,fiber, hair, and never be blocked.
Pump works in unrestricted reversible.
High capacity of self-priming,maximum at 9.5 meters.
With a Has a separated sealing cavity,keeping wet, which makes
short time running idle available when lacking medium.
Suitable for transfer different medium, casing and rotor can be
customized according to client’s request.

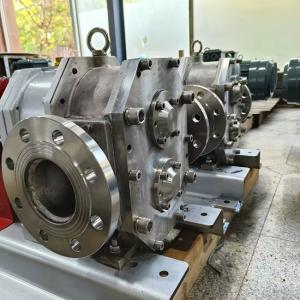

Quality inspection photos
