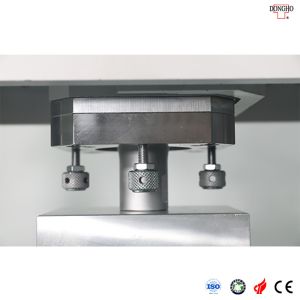

15kHz 5000W*2 Ultrasonic Plastic Machines For Welding With Time
Energy Welding Method
5000W*2 Ultrasonic Plastic Machines For Welding 15kHz With Time
Energy Welding Method
15kHz IALB series ultrasonic welding machine can be used for large
thermoplastic materials for plastic processing welding, iALB
welding machine frame is very durable, with an intelligent
ultrasonic generator modular design, easy to use, in the fast
operation, stable welding, reliable quality, trustworthy. The iALB
series is available in two welding modes: time and energy.
Different welding modes enable the use of ultrasonic to optimize
the welding process of the workpiece, thus improving industrial
efficiency.
Technical parameters:
| Model | iALB S1550 |
| Frequency accuracy | 14.70~15.20KHz |
| Power | 5000W*2 |
| Triggering Method | Time |
| Welding Method | Time/Energy |
| Max working Stroke(mm) | Φ100*100mm±1mm |
| Max Welding Time | 5s |
| Voltage(V) | AC220V±5% 50/60Hz |
| Air pressure | ≥0.05Mpa ≤0.65Mpa |
| Cooling system | 12x12 cooling fan |
| Operating air method | Standard |
| Dimension(L*W*H)mm | 1200*1150*1950mm |
| Weight(kg) | 405kg |
| Hardware | |
| Output interface | 7" color touch screen |
| Control System | iQS operating system |
| Motion control system | Pneumatic control |
| Frequency(kHz) | 15KHz |
| Power(W) | 5000W *2 |
| Frequency adjustment | IGBT Automatic frequency chasing |
| Z axis adjustment | ±0.02mm accuracy |
| cylinder stroke (mm) | 100mm±1mm |
| Air pressure control | pressure regulating valve |
| Max. air pressure(mpa) | 1mpa |
| Max Welding time(S) | 5S |
| Cooling system | 12x12 cooling fan |
| Generator alert | Frequency Error/Over current/Power overload/Over temperature |
| Relative humidity | 30% - 95%, condensate free |
| Operation temperature | +5℃ - +55℃ |
| Air source | Compressed air must be clean, dry, and free of lubricant |
| Voltage(V) | AC220V±5% 50/60Hz |
| Dimension (L*W*H)mm | 1200*1150*1950mm |
| Weight(kg) | 405KG |
Features:
1. The 6th iQS operating system;
2. 100% data amplitude setting;
3. With auto-tuning frequency tracking function;
4. Safe,easy-to-use sensing switch of new touch mode;
5. Welding parameters record and QA quality control;
Quality Control:
1. After the customer confirms the demand, we will strictly control
each link of the product production;
2. At the same time, as the company sales team will follow up every
link of the order for our customers;
3. We have a QC team, All of our products will have 100% QC
inspection before delivery.
4. “Sustainable and permanent operation" is our vision and goal,
and we will provide continuous services for new and old customers
for the long run.
Our Services:
1. Response within 24 hours! All the contacts and emails will be
nicely responded to within 30 minutes;
2. From the perspective of customers to help customers analyze and
choose suitable products for customers;
3. All after-sales service information will get feedback within 24
hours;
4. On-line technical training and online service are available;
