    TICON TCon Pcb Multilayer Rigid Flex Pcb Board Electronics 1.1mm Thickness

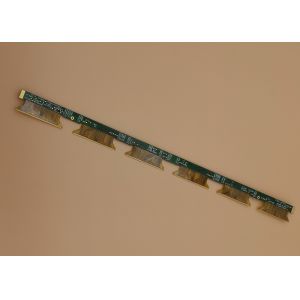

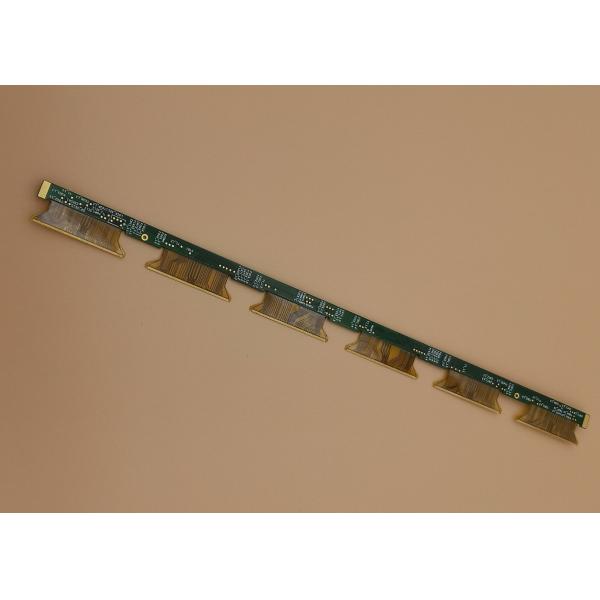

    12Layer Rigid-flex HDI PCBA for Tcon LCM / Soft gold finger


    Rigid-Flex PCB Advantages:

    Rigid-Flex designs offer the advantages of both rigid and flex circuits. The following are some benefits they provide for consumers and manufacturers.

    Mechanical Stability:The rigid-flex designs are composed of multiple layers of flexible substrates attached to one or more rigid boards, offering both stability and flexibility for installation in hard-to-reach places.

    Dynamism:The boards offer high precision, repeatability, and greater flexibility with packaging designs.

    Connection Reliability: The greater stability and polarity of these boards ensure safe and secure connections with other electrical components.


    1.Generation of T-con


    The gold finger material Polymide is thin and flexible. Other areas material CCL FR4.


    2 . Specifications:


    Name12Layer Rigid-flex HDI pcb for Tcon LCM / Soft gold finger
    Layers12
    Quality GradeIPC 6012 Class 2,IPC 6012 Class 3
    MaterialPolymide + FR4
    Min Track/Spacing75um/100um
    Drilling Size100um
    Solder MaskGreen
    SilkscreenWhite
    Surface FinishImmersion gold
    Finished Copper1/3OZ
    Production time10-21 working days
    Lead time2-3 days

    Quality GradeStandard IPC 2MaterialDuPont PI, Domestic Shengyi PI
    Number of Layers1 - 8layersBoard SizeMin 6*6mm, Max 406*610mm
    Order Quantity1pc - 10000+pcsBoard Thickness0.1mm - 0.8mm
    Build Time2days - 5weeksCopper Weight (Finished)0.5oz - 2.0oz
    Min Tracing/Spacing3mil/3milSilkscreen SidesAs per the file
    Solder Mask SidesAs per the fileSilkscreen ColorWhite, Black, Yellow
    Solder Mask ColorGreen, White, Blue, Black, Red, YellowSurface Finish

    HASL - Hot air solder leveling

    Lead - free HASL - RoHS

    ENIG - RoHS

    Immersion Tin - RoHS

    OSP - RoHS

    Solder-stop coating---Soldermask oilGreen, White, Blue, Black, Red, Yellow
    Solder-stop coating---CoverlayPI and PET film
    Min Annular Ring4mil
    Min Drilling Hole Diameter8mil
    Min. hole size---Drilling (PTH)0.2milOther Techniques

    Peelable solder mask

    Gold fingers

    Stiffener (only for PI/FR4 substrate)

    Min. hole size---Punching (NPTH)0.5mil
    Tolerance of dimension±0.05mm
