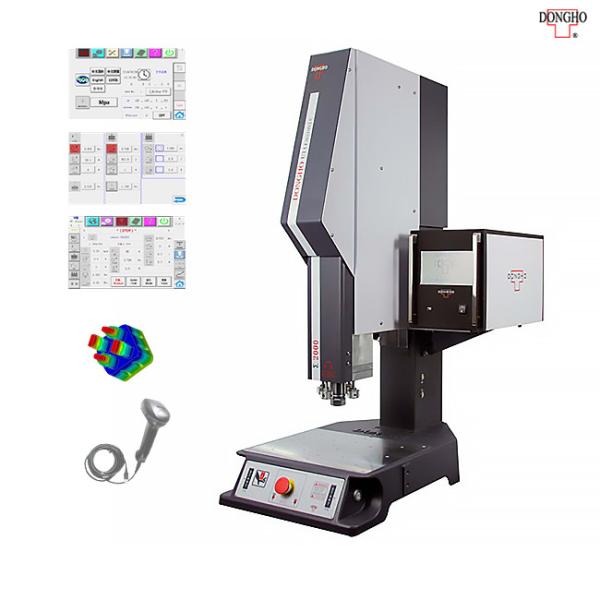

Advanced 40KHz Ultrasonic Digital Plastic Welding Machine For PCB
PP PE Materials
Description:
iBA series ultrasonic welding machine is equipped with an ultrasonic digital generator and controller.
The digital ultrasonic generator has welding parameter storage,
quality QA diagnostic control, gap compensation function, and full
data automatic tuning function. UTC220 high-speed control,
real-time data application for improved trajectory accuracy, MES
system. iBA series ultrasonic welding machine is equipped with the
sixth generation IQS operating system, Ethernet connection,
multi-level password protection, and hierarchical authorization,
more controllable operation. Data support industry 4.0
applications.
Compared with the GW series, iBA is equipped with Dongho verified
Proportion Valve technology, a new electronic pressure measuring
tool, and a variety of welding modes. Supports four scanning guns
to collect mold and workpiece bar codes, data traceability, and
security requirements.
Technical parameters:
| Model | iBA-A2025e | iBA-A2030e | iBA-A3015e | iBA-A3512e | iBA-A4008e |
| Specification |
| Frequency | 20KHz | 20KHz | 30KHz | 35KHz | 40KHz |
| Power | 2500W | 3000W | 1500W | 1200W | 800W |
| Triggering Method | Time, Pressure, Power |
| Welding Method | Welding time/Welding energy/Peak power/Grounding detect |
| Air pressure control | proportional valve |
| Operating air method | Standard/multi-stage |
| Amplitude control | Single-stage amplitude/stepping amplitude |
| Pre-press vibration | 1) OFF, 2) pre-vibration time |
| Welding stacking function | Time/Energy/Pressure |
| Max Working Stroke(mm) | Φ63*80mm±1mm | Φ50*80mm±1mm | Φ40*80mm±1mm |
| Max Welding Time | 5 seconds |
| Voltage(V) | AC220V±5% 50/60Hz |
| Accessory expansion (optional) | Noise insulation shield/ Automatic film winding device/ Auxiliary fixture *2/ Safety curtain for protection |
| Dimension(L*W*H)mm | 500*750*1100mm | 470*720*950mm |
| Weight(kg) | 106kg | 75kg |
Features:
* 6th generation iQS operation system
* PropControl (Proportion Valve Technology)
* New type electronic pressure-measuring device
* Built-in scanning gun for data tracing
* Welding parameters saving in USB, QA quality diagnosis, and
control
* UTC220 high-speed control for enhancement of track precision
plastic material suitable for ultrasonic welding:
Many plastics of different materials can be ultrasonic welded, but
some plastics of the same material can not be ultrasonic welded.
It’s better to choose a larger power, the larger amplitude of the
ultrasonic welding equipment for materials which is more difficult
to weld according to the characteristics of the material and the
specific structure of the product. There are some products that
need to choose a higher frequency of the machine to achieve
welding. Specific needs professional technical personnel to judge.
If you have any concerns, feel free to contact us.
