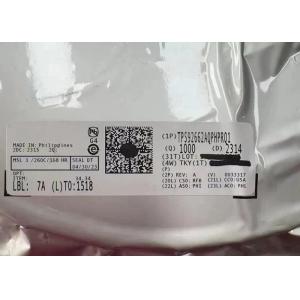

TPS92662AQPHPRQ1 High Brightness LED Matrix Manager With EMI Mitigation Techniques

    Buy cheap TPS92662AQPHPRQ1 High Brightness LED Matrix Manager With EMI Mitigation Techniques from wholesalers

    Buy cheap TPS92662AQPHPRQ1 High Brightness LED Matrix Manager With EMI Mitigation Techniques from wholesalers
    • Buy cheap TPS92662AQPHPRQ1 High Brightness LED Matrix Manager With EMI Mitigation Techniques from wholesalers

    TPS92662AQPHPRQ1 High Brightness LED Matrix Manager With EMI Mitigation Techniques

    Ask Lasest Price
    Brand Name : Original Factory
    Model Number : TPS92662AQPHPRQ1
    Certification : Lead free / RoHS Compliant
    Price : Contact for Sample
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    TPS92662AQPHPRQ1 High Brightness LED Matrix Manager With EMI Mitigation Techniques

    TPS92662AQPHPRQ1 High Brightness LED Matrix Manager With EMI Mitigation Techniques


    Product Description Of TPS92662AQPHPRQ1

    TPS92662AQPHPRQ1 LED matrix manager deviceenables fully dynamic adaptive lighting solutions byproviding individual pixel-level LED control. Thedevice includes four sub-strings of three series-connected integrated switches for bypassingindividual LEDs. The individual sub-strings allow thedevice to accept either single or multiple currentsources.


    Specification Of TPS92662AQPHPRQ1

    Part Number

    TPS92662AQPHPRQ1

    12 Output

    4.5 V

    60 V

    - 40 C

    + 125 C

    Input Voltage:

    4.5 V to 60 V


    Features Of TPS92662AQPHPRQ1

    • Input voltage range: 4.5 V to 60 V

    • 12 Integrated bypass switches

    • Multi-drop UART communication interface– Compatible with TPS92662-Q1 andTPS92663-Q1 devices– Compatible with CAN physical layer

    • Eight-bit ADC with two MUXed inputs

    • Programmable crystal oscillator driver and clockbuffer strength– Improved radiated and conducted EMIperformance

    • External EEPROM I2C interface

    • Programmable 10-bit PWM dimming

    • LED open and short detection and protection

    • Supports multi-LMM synchronization for morethan 12-LED string via time division multiplexing


    Applications Of TPS92662AQPHPRQ1

    • Automotive headlight systems

    • ADB or glare-free high beam

    • Sequential turn/animated daytime running lights
