48VQFN Automobile Chips DS90UB954TRGZRQ1 Dual 1.5Gbps FPD Link III Deserializer Hub

    Buy cheap 48VQFN Automobile Chips DS90UB954TRGZRQ1 Dual 1.5Gbps FPD Link III Deserializer Hub from wholesalers

    Buy cheap 48VQFN Automobile Chips DS90UB954TRGZRQ1 Dual 1.5Gbps FPD Link III Deserializer Hub from wholesalers
    • Buy cheap 48VQFN Automobile Chips DS90UB954TRGZRQ1 Dual 1.5Gbps FPD Link III Deserializer Hub from wholesalers

    48VQFN Automobile Chips DS90UB954TRGZRQ1 Dual 1.5Gbps FPD Link III Deserializer Hub

    Ask Lasest Price
    Brand Name : Original Factory
    Model Number : DS90UB954TRGZRQ1
    Certification : Lead free / RoHS Compliant
    Price : Contact for Sample
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    48VQFN Automobile Chips DS90UB954TRGZRQ1 Dual 1.5Gbps FPD Link III Deserializer Hub

    48VQFN Automobile Chips DS90UB954TRGZRQ1 Dual 1.5Gbps FPD Link III Deserializer Hub​


    Product Description Of DS90UB954TRGZRQ1

    DS90UB954TRGZRQ1 is a versatile dual deserializer hub capable of receiving serialized sensor data from one or two independent sources through an FPDLink III interface.
    DS90UB954TRGZRQ1 receives data from imagers, supporting 2MP/60fps and 4MP/30fps cameras as well as satellite RADAR and other sensors such as ToF and LIDAR. Data is received and aggregated into a MIPI CSI-2 compliant output for interconnect to a downstream processor.


    Specification Of DS90UB954TRGZRQ1

    Part NumberDS90UB954TRGZRQ1
    Function
    Deserializer
    Data Rate
    1.5Gbps
    Input Type
    FPD-Link III, LVDS
    Output Type
    CSI-2, MIPI
    Number of Inputs
    2
    Voltage - Supply
    1.71V ~ 1.89V
    Operating Temperature
    -40°C ~ 105°C
    Mounting Type
    Surface Mount
    Package / Case
    48-VFQFN Exposed Pad
    Supplier Device Package
    48-VQFN (7x7)

    Features Of DS90UB954TRGZRQ1

    • Dual deserializer hub aggregates one or two active sensors over FPD-Link III interface
    • Power-Over-Coax (PoC) compatible transceiver
    • MIPI DPHY Version 1.2 / CSI-2 Version 1 .3 compliant
    • 2x2 Output replication mode
    • Ultra-low data and control path latency
    • Supports single-ended coaxial or Shielded Twisted-Pair (STP) cable
    • Adaptive receive equalization
    • I2C with fast-mode plus up to 1 Mbps
    • Flexible GPIOs for camera synchronization and diagnostics

    Applications Of DS90UB954TRGZRQ1

    • Automotive ADAS
    • Rear View Cameras (RVC)
    • Surround View Systems (SVS)
    • Camera Monitor Systems (CMS)
    • Forward Vision Cameras (FC)
    • Driver Monitoring Systems (DMS)

    Typical Application Schematic Of DS90UB954TRGZRQ1

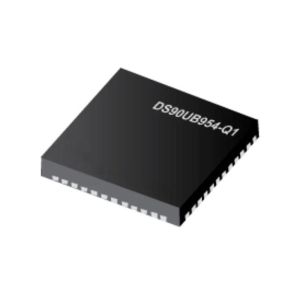

    Product Photo Of DS90UB954TRGZRQ1
