Horizontal Hopper Well Drilling Jet Mud Mixer Explosion Proof

APSLH Mud Mixing Hopper Unit With Venturi Nozzle For Drilling Mud Process is highly recognized and applied by customers

General information of mud mixing hopper unit

The mud mixing hopper unit is also referred to Jet mud mixer or mixing hopper pump. Since it's a combination of the hopper and centrifugal pump. The hopper can be the venturi hopper or the whirl hopper. This lead is about mixing the pump with the venturi hopper.

Specification of APSLH150-50 mud mixing hopper unit

Drilling a jet mud mixer is a piece of equipment used together with a solids control system together. It can meet the requirements of drilling fluid weighting and mixing for the solids control system of 1,500 m to 7,000 m drilling. This equipment is a single jet mixer combined with a 45 kW (or 55 kW) sand pump and a jet mud hopper or a double jet mixer of two pumps and two hoppers. It features safe performance and convenient transportation.

APSLH series mud hoppers are welcomed by clients for a good price and high performance. Nowadays APSLH series jet mud mixer is widely used in these industries: Trenchless HDD & Tunnelling, Drilling Waste Management, Oil and Gas Drilling, Water Drilling, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Separation, Bored Piling.

The model number means jet mud mixer of AIPU and the outlet is 6'', while the venturi nozzle is 2''. This model mixer fit centrifugal pump APSB8X6 and pump driven by motor 75HP. The flow rate is up to 1200gpm. If no special requirements the pump and motor will be configured as the standard ones. But nowadays, more and more users need the higher flow rate mixer since the deeper well is drilled. Such as the ZJ90 rig. So the pump and hopper can be adjusted accordingly

On the AIPU mud mixing pump, the centrifugal pump is mechanical sealed and rather reliable. There is a high-quality butterfly valve on pump pipelines. This will help to control mud flow rate and the compounding better during operation. The pressure is 0.2~0.4Mpa

More detailed information on the APSLH series mud mixing hopper unit

The jet mud mixer can be widely used in drilling mud systems. Including the oil and gas drilling, the HDD mud recycling, the civil construction drilling mud process. As we know, during drilling there is mud lost and to maintain the mud property we need such equipment to prepare sufficient quality fluids

Besides the APSLH150-50, there are other models of jet mixing pumps. The difference including pump size, motor power, and hopper size, the pipeline, and fittings.

Furthermore, we also provide different configurations on hopper, pipe, and pump connection.

Features of APSLH series mud mixing hopper unit

The mature design and excellent performance. Powerful agitation and mixing during whole mud system circulation. Reliable performance and durable quality cost less on operation and maintenance. Flexible on the configuration of the pump and hopper. Cost-effective solution for various users.

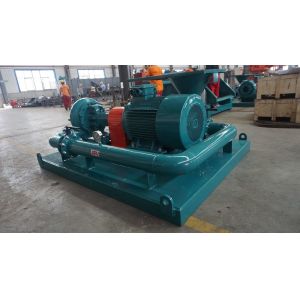

Mud Mixer Main Parts

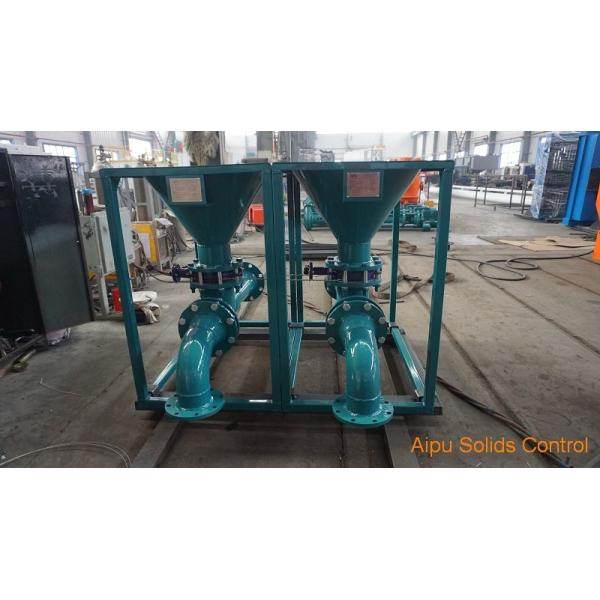

1. Venturi mud mixing hopper installed to help chemicals easily being agitated into water or drilling mud. The mixing hopper makes the mixing application easy and continuously.

2. Mixing pump will transfer drilling mud or water to mix chemicals gradually. The pump is a mechanical seal and interchangeable with Mission Magnum.

3. Electrical control panels installed beside mixing pump to control the motor with delta starter. The delta starter is will be installed for motor 30kw and above, the motor below 30kw can be a delta starter with extra cost.

4. Pipeline arrangement between mixing pump and mixing hopper with butterfly valve. Special pipeline arrangements can be done as per request.

5. A public skid to hold all above equipment for steady working and fast-moving with lifting lugs.

If you have any demand for a mud mixing hopper unit? Or you are interested in any other mud equipment. Please contact AIPU Solids freely. Trust you will get the true cost-effective solution at the best rate.
