    20 Ton Construction SSR200AC-8 Vibratory Road Roller

    Ask Lasest Price
    Brand Name : SANY
    Model Number : SSR200AC-8
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 set/ sets per month
    Delivery Time : 30-35 work days
    • Product Details
    • Company Profile

    20 Ton Construction SSR200AC-8 Vibratory Road Roller

    SANY SSR200AC-8 20 ton Construction Road Roller Vibratory Road Roller In India Road Roller Specification


    Product Description of 20 ton Construction Road Roller Vibratory Road Roller


    vibratory road roller manufactured in India Benefits & Feature


    Vibratory road roller manufactured in India Hydraulic drive system

    • Stable and continuous operation in any jobsite, at high altitude or in 46℃ temperature
    • Automatic control of shifting and steering ensure quick maneuverability, improving efficiency
    • Full hydraulic drive system, stepless changing of speed

    Vibratory road roller manufactured in India Compaction performance

    • Dual frequency, double amplitude vibratory mode produces greater excitation force
    • No shock or indentation left when the roller starts, increasing road surface smoothness
    • Taking only 3 seconds to start vibration with large displacement vibration motor

    Vibratory road roller manufactured in India Safety first

    • Travel braking, parking braking and emergency braking all contribute to safe and stable operation
    • 1m×1m rear view and optimized structure design give you superb visibility
    • Safe and comfortable cab with noise lower than 84dB protect the operator

    Vibratory road roller manufactured in India Cost effective

    • Patented vibratory bearing with special lubrication structure extends the service life
    • Large displacement vibration pump and motor with low system pressure is highly reliable
    • No friction plate, main pump built in the rear, save maintenance costs

    Specification of 20 ton Construction Road Roller Vibratory Road Roller

    ItemSpecificationUnit
    Engine modelWP6
    Rated power147kW
    EmissionsNR3
    Dimension(LxWxH)6620×2270×3330mm
    Total weight(Standard)20000kg
    Travel speed0~8km/h
    Max. gradeability30%
    Vibration Frequency29/35Hz
    Min. turning radius12350mm
    Min. ground clearance410mm
    Compaction width2130mm
    Drum Diameter1600mm
    Wheelbase3185mm
    Tires20.5-25-16PR
    Swing Angle12°
    Steering Angle35°
    Fuel Tank300L
    Hydraulic Oil Tank100L

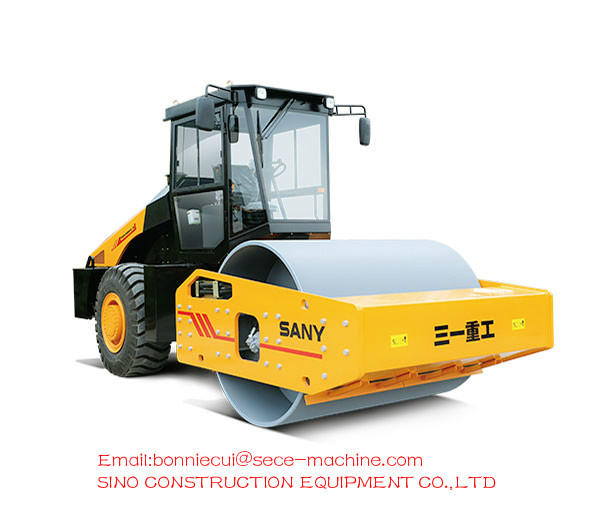

    The photo of 20 ton Construction Road Roller Vibratory Road Roller


    Extended Service Life

    The use of water wheel type lubrication on the vibratory bearing extends the bearing life up to 5,000 hours.

    The engine air filter is raised and the air is filtered twice to protect the engine.

    The hydraulic system contains three stage filtration.

    Higher Compaction Efficiency

    10% greater excitation force than other products in the same category resulting in 16.7% greater production.

    Safety First Design
    Rounded bumpers front and rear
    Large rear glass and sloped hood for greater visibility

    Comfortable Operation
    Cab mounted on vibration damping mounts
    Cab climate control
    Operator control forces have been reduced


    Advantages

    1. Heavy-duty Single drum vibratory roller.

    2. Low noise. Maximum visibility. Comfortable driving cabin .

    3. Adopt top brand engine, pump, vibratory bearing react compaction performance.


    FAQ


    1: What kind terms of payment can be accepted?

    A: For terms of payment, L/C, T/T, D/A, (can be) could accepted

    2: What certificates are available in Machinery?

    A: For the certificate, we have CE, ISO, EPA(USA)CCC,

    3: What about the delivery time?

    A: 7-20 days after receiving the deposit.

    4: What about the warranty time?

    A: 12 months after shipment or 2000 working hours, whichever occults first.

    5. What about the Minimum Order Quantity?

    A: The MOQ is 1 pcs

    6. Do you have official website about cheap road roller?

    A: Yes. Our Sany road roller website: www.road-constructionmachines.com
