    2200Hp SCEC 28 Ton Special Purpose Truck

    Ask Lasest Price
    Brand Name : SCEC
    Model Number : ZZ1257N4341W
    Certification : ISO CCC
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 units per month
    Delivery Time : Within 20 work days after receive order
    • Product Details
    • Company Profile

    2200Hp SCEC 28 Ton Special Purpose Truck

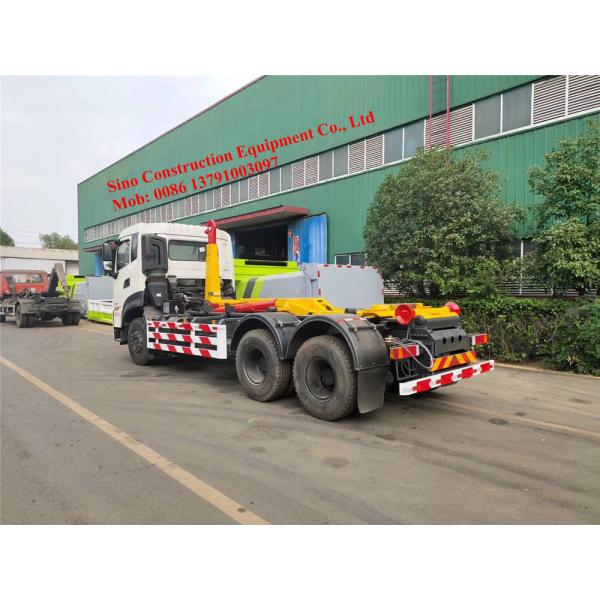

    SCEC Special Purpose Truck 28ton Hook-Arm Garbage truck LHD&RHD Euro III


    Introduction of SCEC Special Purpose Truck 28ton Hook-Arm Garbage truck LHD&RHD Euro III

    This car uses Sinotruk Howo 6x4 chassis, the cab is full-floating hydraulic shock absorber, airbag seat, comfortable driving; the gearbox is Sinotruk tenth gear, less failure, excellent performance. The rear axle is a double 10 ton reinforced type, with fast speed and strong bearing capacity; the pull arm is designed by our company independently and has the independent intellectual property rights of the ovo brand 28 ton telescopic sleeve arm. The company is patented to produce hydraulic double cylinders ( Bore 170), Hydfly electric control multi-way valve, Italy PZB (Interpapp) high-pressure plunger pump, standard roller rear leg, wireless remote control + manual operation, reserved hydraulic quick connector for trash bin (Interway) interface, equipped with 28-30 square multifunctional bulk bins (hydraulic wingspan cover, hydraulic locking and sealing back door) or 18-21 square conjoined compression bins (mobile garbage station).


    Advantages of SCEC Special Purpose Truck 28ton Hook-Arm Garbage truck LHD&RHD Euro III


    1: Control system: wireless remote control + manual operation, convenient and fast, proprietary technology, industry leading.

    2: Hydraulic system: cylinder, pump and valve are specially designed by our company, produced by well-known domestic manufacturers, with reasonable matching, safe and reliable, and high cost performance; the key components adopt original imported seals, which have stable performance and reliable quality.

    3: Safety protection:

    (1) The main oil cylinder is specially equipped with a two-way unloading valve, which effectively reduces the system pressure at the end of the stroke and protects the entire hydraulic system and the pull arm for durability.

    (2) The lifting system is equipped with a balancing device, which can move at a constant speed without load or heavy load, to avoid damage to the vehicle or equipment caused by strong impact.

    (3) Two-way overload protection is set in the hydraulic system and each branch oil circuit, and the rated pressure is adjusted and set according to the actual working conditions of each moving part to effectively avoid the abnormal damage of the vehicle caused by system overload or improper use.

    (4) The hydraulic system is equipped with an explosion-proof locking device for the oil circuit to prevent potential safety hazards due to the burst of the oil pipe and ensure the safety of personnel and vehicles;

    (5) The hydraulic arm and mechanical box locking device are installed on the pull arm, which can be used correctly to ensure the safety of transportation.


    Parameters of SCEC Special Purpose Truck 28ton Hook-Arm Garbage truck LHD&RHD Euro III

    ModelZZ1257N4341W
    CabinHW76 Long Cabin, with two seats and one bed, with Air Conditioner and electric window.

    Engine

    ModelWD615.69
    Horse Power (Hp/rpm)336/2200, Euro II Emission Standard
    Max.Toruqe(Nm/rpm)1350/1100-1600
    Displacement L

    9.726


    Type6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke direct injection diesel engine
    TransmissionHW19710, 10 speeds forward and 2 speeds reverse.
    Front AxleHF9, Steering with double T-cross section beam, Loading Capacity: 9,000kgs
    Driving AxleHC16, Pressed axle housing, central reduction with hub reduction, with differential locks between wheels and axles. ratio: 4.8. Option: 4.42
    SuspensionFront suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer
    Steering SystemZF8118, Hydraulic steering with power assistance
    Brake SystemService brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake
    Tire12.00R20
    Fuel Tank Capacity (L)300L Diesel Tank
    Kurb Weight (kg)12,000
    Loading Capacity (kg)28,000
    Gross Vehicle Weight (kg)41,000
    Overall Dimension(L*W*H)(mm)9800×2500×3210
    Garbage Tank Capacity size7500x2300x1500
    Tank MaterialCarbon Steel, 3mm-5mm thickness
    Nos of Compartment1
    Wheelbase(mm)4325+1350
    Max. Speed (km/h)90


    Packing & Delivery:

    Nude package.

    This model truck crane shipped by roro or bulk ship.


    Pre-Sales Service
    * Inquiry and consulting support.
    * Sample testing support.
    * View our Factory.


    After-Sales Service
    * Training how to instal and use the machine.
    * Engineers available to service machinery overseas.
