Diesel Forklift truck3ton 3.5ton ISUZU Engine Container Forklifts
The specification forDiesel Forklift truck3ton 3.5ton ISUZU Engine
Container Forklifts
| Specifications | unit | FD30R(H) | FD35R(H) |
| Characteristics | Power | - | diesel | diesel |
| Rated Capacity | kg | 3000 | 3500 |
| Center of load | J(mm) | 500 | 500 |
| Lifting height | h1(mm) | 3000 | 3000 |
| Free lifting height | h3(mm) | 145 | 145 |
| Forks L×W×H | L5xWxT(mm) | 1070x125x45 | 1070x125x50 |
| Tilt Forward/Backward | º | 6/12 | 6/12 |
| Min.turning radius | R1(mm) | 2620 | 2660 |
| Min.ground clearance(Mast) | m(mm) | 115 | 115 |
| Overhead guard height | h4(mm) | 2200 | 2200 |
| Height from seat to overhead guard | L3(mm) | 480 | 485 |
| Front overhang | L4(mm) | 600 | 650 |
| Perf | Max.traveling speed(loaded) | km/h | 20 | 20 |
| Max.lifting speed(loaded/empty) | mm/s | 470/520 | 470/520 |
| Drawbar pull/Gradeability | kN/% | 18/20 | 18/20 |
| Dimensions | Overall length (without fork) | L1(mm) | 3850 | 3900 |
| Overall width | W1(mm) | 1230 | 1230 |
| Mast lowered height | h2(mm) | 2075 | 2075 |
| Mast extended height | mm | 4260 | 4260 |
| Chassis | Tire | Front | - | 28x9-15-12PR | 28x9-15-12PR |
| Rear | - | 6.50-10-10PR | 6.50-10-10PR |
| Wheelbase | L2(mm) | 1700 | 1700 |
| Tread width | Front/Rear | S/P(mm) | 1000/970 | 1000/970 |
| Curb weight | None-load | kg | 4350 | 4700 |
| Powertrain | Battery | Voltage/Capacity | V/Ah | 12/90 | 12/90 |
| Engine | Model | - | XC490BPG | XC490BPG |
| Rated power | kw/r.p.m | 37/2650 | 37/2650 |
| Rated torque | N.m/r.p.m | 148/2000 | 148/2000 |
| Cylinder amount | - | 4 | 4 |
| Bore×Stroke | mm | 90x100 | 90x100 |
| Displacement | L | 2.54 | 2.54 |
| Fuel tank | L | 66 | 66 |
| Transmission | - | 1/1 automatic transmission |
| Working pressure | MPa | 17 | 17 |
The photo for Diesel Forklift truck3ton 3.5ton ISUZU Engine
Container Forklifts
Optional Engine for Diesel Forklift truck3ton 3.5ton ISUZU Engine
Container Forklifts
| Manufacturer | Driver Type | Model | Displacement | Rated Power/Speed(kW/r.p.m) |
| XinChai | Diesel | C490 | 2.54 | 37/2650 |
| Nissan | LPG/Gasoline | K21/K25 | 2.488 | 37.4/2300 |
| Isuzu | Diesel | C240 | 2.369 | 34.3/2500 |
| Mitsubishi | Diesel | S4S | 3.331 | 38/2300 |
| PSI | LPG/Gasoline | PSI 2.4 | 2.351 | 47/2700 |
Optional Attachment for Diesel Forklift truck3ton 3.5ton ISUZU
Engine
Container Forklifts
| 1 | Sideshifter | 5 | Bale Clamp | 9 | Drum Clamp |
| 2 | Fork Positioner | 6 | Multi-Purpose Clamp | 10 | Single Duoble Pallet Handler |
| 3 | Paper Roll Clamp | 7 | Carton Clamp | 11 | Pusher and Push-pull |
| 4 | Rotator | 8 | Block Clamp | 12 | Carpet Boom |
Product packaging
About us
Our company was established in 2003 and is located in Jingshi Road,
Huaiyin District, Jinan City. The transportation is convenient.
Our business scope includes all kinds of heavy road construction
machinery, building machinery, heavy logistics vehicles and special
vehicles. Including road rollers, graders, wheel loaders,
excavators, etc. And tractor trucks, dump trucks, cargo trucks,
semi-trailers, cement mixers and large, medium and small brick
machine production lines, etc. Since its establishment 17 years
ago, we have won wide acclaim from customers at home and abroad for
our high-quality service concept, honest business attitude, and
high-quality mechanical products.
At present, we focus on large-scale earthwork, construction
engineering projects companies and large-scale logistics centers,
with providing customers with high-quality machinery and vehicles.
Jinan is the cradle of Chinese heavy vehicles and machinery.
Relying on Jinan's thick heavy equipment technology research and
development history and convenient transportation, we maintain good
long-term strategic cooperation with Sinotruk and Jiangsu XCMG.
Become the vanguard of China's heavy machinery export and overseas
market development.

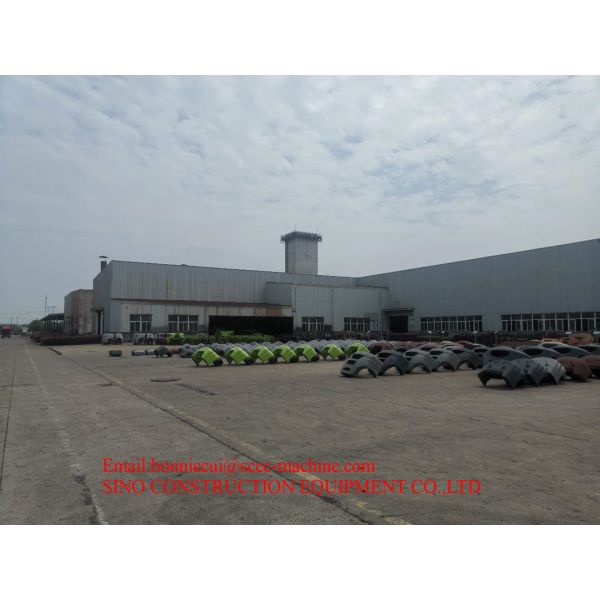

Our company's production line is located in Zhangqiu District,
Jinan City, Shandong Province. The transportation is convenient.
At present, our company has more than 500 employees. Among them,
there are more than 50 persons in technical R & D teams, most of
them have graduate degree or above. Marketing department have more
than 30 people. Has extensive sales and service experience. Provide
customers with one-stop product consultation, purchase and
after-sales service.
We have more than 10 years of overseas export experience. The
volume of exports increases every year. Mainly exported to African
countries like Ethiopia, Djibouti, Kenya, Tanzania, Sudan, Chad,
Angola, Burkina Faso, Uganda, Cameroon, Zambia, Algeria,
Mozambique, Botswana, etc .; South Asia, Southeast Asia, like
Pakistan, Bangladesh, Myanmar, Thailand, Philippines, Laos, etc .;
Latin America, like Colombia, Guyana, Peru, Chile, Uruguay,
Bolivia, etc.
Professional technical team and rich experience, treat customers as
friends sincerely, and provide strong support and
services for customers is our common business philosophy. Customers
are welcome to write or consult and cooperate.
