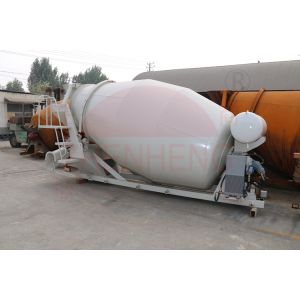

Construction Concrete Mixing Truck 6m3 / 8m3 Agitating Capacity Mobile

Construction Concrete Mixing Truck 6m3 / 8m3 Agitating Capacity Mobile

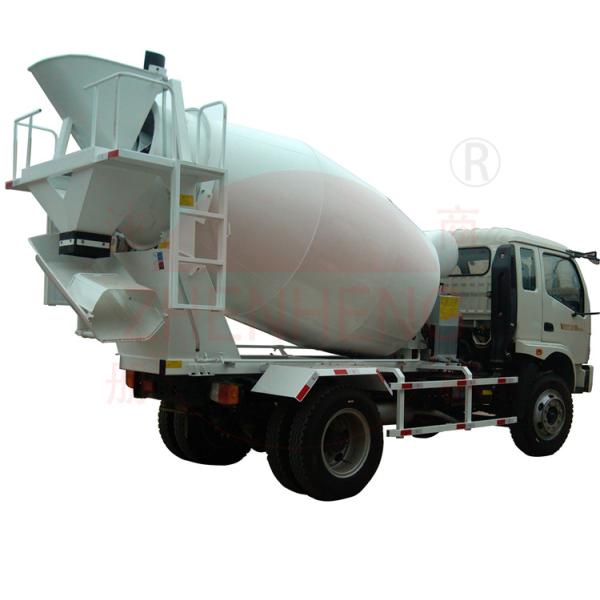

Introduction of concrete mixer truck with 6m3 and 8m3

Shacman 6x4 10 Wheels 8 Cubic Meters Concrete Mixer Trucks are mainly used for mixing and carrying concrete in long distance. Then can delay concrete primary concretion, avoid concrete stratification and separation, ensure the concrete can be normal at work site.

Our concrete truck mixers adopt European modern style, attractive appearance, rational structure and stable performance. We can provide trucks with different capacity, such as 8m³,9m³, 10m³,12m³,14m³,15m³,16m³,etc.

We can match upper mixer with different chassis truck according to customers’ request, such as DONGFENG, SINOTRUK, SHAMAN, AUAMN, FAW, JAC HONGYAN, BEIBEN, DAYUN, HINO, MISUBISHI, ISUZU chassis, etc.

Parameters of Self-loading Concrete Mixer Truck with 6m3 and 8m3

Factory Advantages of Conrete Mixer Truck 6CBM 8CBM

1. Factory export department directly sale

2. Export experience more than 12 years

3. Cheap / competitive price, high quality ,you get more than your paid

4. With CCC, ISO , BV approved

5. The heart of the service, rational design

Other Stipulates

1. During transportation, the concrete mixer drum rotates at the speed of 1-3 r/min. The maximum speed of the concrete mixer truck shall not exceed 50 km/h, while the maximum speed of the mixer drum shall not exceed 16 r/min.

2. The height of the hopper upper outlet should be no more than 3800mm from the ground; the feeding speed of the concrete mixer should be ≥ 2.7m³/min; and the discharging speed of the mixer should be ≥ 0.65 m³/min.

3. Water supply system: the capacity of water in the tank for cleaning the mixing drum shall be ≥ 180L, and the pressure in the tank shall be ≥ 0.4 Mpa.

4. When working, the temperature rise of hydraulic oil shall not exceed 40 ℃, and the highest temperature shall not exceed 80℃.

5. Discharge chute: It should be able to rotate 180 degrees horizontally to suit different unloading positions. In the vertical direction, it can adjust the tilt angle with the horizontal direction to adapt to different unloading height. An extended chute is arranged, and the assembly and disassembly are convenient.

Founded in 1982, Zhengzhou Zhenheng Construction Equipment Company Limited is a large high-tech enterprise, which integrates manufacturing, sales, service, research and development.Withthe continuous innovation, stable product quality and professional after-sales service, we have won the good reputation at home and abroad.Now we are the leading producer of concrete machinesindustry, and extend the production line including concrete batching plant, block making machine, concrete pump, concrete truck, self-loading concrete mixer etc.

All the construction machines or equipment produced by zhenheng enterprise are conformity with the standard of the state, and get the GB/T19001-2016/ISO9001:2015 quality certificate, CE certificate.We make our enterprise reputation with the quality and spread our reputation with professional service.

Zhenheng Company covers an area of more than 40000 square meters with the working area of 20000 square meters .Our company has more than 500 staffs ,among whom there are 10 engineers ,more than 50 technicians, and around 300 skilled workers .

Zhenheng enterprise is located in zhengzhou city, which is the important station on THE BELT THE ROAD ,the trains pass from zhengzhou to central Aisa and Europe everyday .The closed sea port is Qingdao port ,which is big port with rich sailings and shipping route .It can offer fast and low -cost transportation to all customers .

We already exported our construction machines to more than 60 countries and set up agent and service station in some important markets such as Pakistan and Bangladesh and Vietnam etc. The competition is high at market, and we will invest more on innovation, manage more strictly on quality control and offer more on service to benefit the established and new customers.
