| Brand Name : | XGCLED |

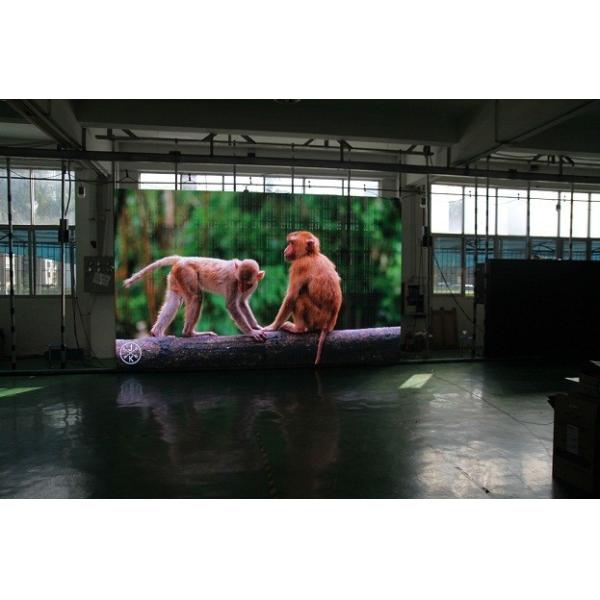

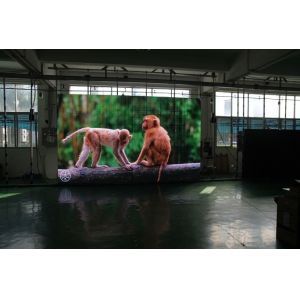

| Model Number : | P8 outdoor fixed LED display |
| Price : | $540~700USD/ ㎡ |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 5000 square meter per month |
| Delivery Time : | 7-20days |
| Module Specification | |||
| 1 | Pixel Pitch | 8mm | |
| 2 | Led Type | SMD3535 | |
| 3 | Module Size | 256x128mm | |
| 4 | Module Resolution | 32*16 pixels | |
| 5 | Driving IC | MBI5124 | |
| 6 | LED lamp | Kinglight | |
Cabinet Specification
| |||
| 1 | Cabinet Size | 1024mmX1024mm | |
| 2 | Cabinet Resolution | 128*128pixels | |
| 3 | Module Qty. | 4X8pcs | |
| 4 | Cabinet Materials | Standard Steel Cabinet | |
| 5 | Cabinet Weight | < 40Kg | |
Screen Parameters
| |||
| 1 | Screen Size | Costom Size | |
| 2 | Brightness | 5500 cd/m2 | |
| 3 | Scanning Mode | 1/4scan | |
| 4 | Viewing Angle | H:140°;V:140° | |
| 5 | Viewing Distance | >8m | |
| 6 | Gray Level | 14 Bit | |
| 7 | Refresh Frequency | 1920 Hz | |
| 8 | Power Input | AC 220-240V | |
| 9 | Power Comsuption | Max: 800W/㎡ Average: 250W/㎡ | |
| 10 | MTBF--hours | >10,000 hours | |
| 11 | Life--hours | ≥100,000 hours | |
| 12 | IP Grade | IP65 | |
| 13 | Operating Temperature | -30℃~ 60℃ | |
| 14 | Storage Humidity | 10℃~90℃RH | |
| 15 | Control Syetem | Novastar | |
| 16 | Operating System | Windows98/2000/NT/XP | |
| 17 | Power Supply | G-ENERGY | |
| 18 | Maintance Access | Back service | |
|
