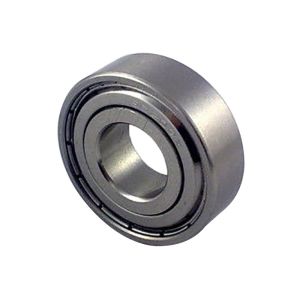

Single Row Deep Groove Ball Bearings with SUS440C stainless steel
Open/Seals/Shields Type - Anti-Corrosion
Materials: AISI440C Stainless Steel
Hardness: HRC58-62
Preccision Grade: ABEC-1, ABEC-3
Vibration: Z1,Z1, Z3
Bore Size: 10mm - 75 mm
OD: 30 mm - 130 mm
Width: 9 mm - 25 mm
Applications:
The bearings are widely used on ocean engineering equipment and
ship, food processing machinery, medical equipment, cryogenic
engineering, automobile, motorcycle, electric tools, high-speed
motor, household appliances and other industries.
Features and Benefits
• The seals are made from an oil and wear-resistant synthetic
rubber with a steel reinforcement
• Operating temperature from -40°C to +120°C
• Accepts radial and axial loads
• Both standard and C3 clearance available
• Versatile
Application Information
Deep groove ball bearings are suitable for high speeds and are
robust in operation.
Lubrications:
Before SGC bearings leave factory,the open bearing is filled with
meter anti-rust oil only;while the shielded bearing has been filled
with general bearing grease,which makes it suitable for light and
medium load as well as low and medium speed applications, with a
working temperature ranging from -30℃～100℃.If the bearings are
applied beyond the above conditions, other special grease or
lubricating methods shall be employed.
| Bearing No. | Boundary dimensions | Load Rating | Limiting Speed(rpm) | Weight |
| Open | Shields | Seals | d | D | B | Rmin | Cr | Cor | Grease | 2RS | Oil | Open |
| Open |
| SS6200 | SS6200-ZZ | SS6200-2RS | 10 | 30 | 9 | 0.6 | 5.11 | 2.39 | 24000 | 16000 | 29000 | 0.03 |
| SS6201 | SS6201-ZZ | SS6201-2RS | 12 | 32 | 10 | 0.6 | 6.82 | 3.06 | 22000 | 15000 | 27000 | 0.03 |
| SS6202 | SS6202-ZZ | SS6202-2RS | 15 | 35 | 11 | 0.6 | 7.64 | 3.72 | 20000 | 13000 | 24000 | 0.04 |
| SS6203 | SS6203-ZZ | SS6203-2RS | 17 | 40 | 12 | 0.6 | 9.57 | 4.79 | 17000 | 12000 | 21000 | 0.06 |
| SS6204 | SS6204-ZZ | SS6204-2RS | 20 | 47 | 14 | 1 | 12.84 | 6.65 | 14000 | 9000 | 18000 | 0.1 |
| SS6205 | SS6205-ZZ | SS6205-2RS | 25 | 52 | 15 | 1 | 14 | 7.88 | 12000 | 8000 | 16000 | 0.12 |
| SS6206 | SS6206-ZZ | SS6206-2RS | 30 | 62 | 16 | 1 | 19.46 | 11.31 | 9500 | 6700 | 13000 | 0.2 |
| SS6207 | SS6207-ZZ | SS6207-2RS | 35 | 72 | 17 | 1.1 | 25.5 | 15.2 | 8500 | 6000 | 11000 | 0.27 |
| SS6208 | SS6208-ZZ | SS6208-2RS | 40 | 80 | 18 | 1.1 | 29.5 | 18 | 8500 | 6000 | 10000 | 0.36 |
| SS6209 | SS6209-ZZ | SS6209-2RS | 45 | 85 | 19 | 1.1 | 31.5 | 20.5 | 7000 | 5000 | 9000 | 0.42 |
| SS6210 | SS6210-ZZ | SS6210-2RS | 50 | 90 | 20 | 1.1 | 35 | 23.2 | 6700 | 4800 | 8500 | 0.47 |
| SS6211 | SS6211-ZZ | SS6211-2RS | 55 | 100 | 21 | 1.5 | 43.2 | 29.2 | 6000 | 4300 | 7500 | 0.58 |
|
| SS6212 | SS6212-ZZ | SS6212-2RS | 60 | 110 | 22 | 1.5 | 47.8 | 32.8 | 5600 | 4000 | 7000 | 0.77 |
| SS6213 | SS6213-ZZ | SS6213-2RS | 65 | 120 | 23 | 1.5 | 57.2 | 40 | 5000 | 3600 | 6300 | 0.98 |
| SS6214 | SS6214-ZZ | SS6214-2RS | 70 | 125 | 24 | 1.5 | 60.8 | 45 | 4800 | 3400 | 6000 | 1.07 |
| SS6215 | SS6215-ZZ | SS6215-2RS | 75 | 130 | 25 | 1.5 | 66 | 49.5 | 4500 | 3200 | 5600 | 1.18 |
Company Brand | Designation | Dropping tem. | Penetration | Woring Tem. | Remarks |
| Shell | Alivania RL2 | 185 | 265-295 | -35~120 | General purpose |
| Alivania RL3 | 185 | 220-250 | -35~135 |
| Alivania RA | 180 | 250-275 | -25~100 |
| Alivania EP1 | 180 | 310-340 | -25~110 |
| Alivania EP2 | 185 | 265-295 | -25~110 |
| Darina 2 | 250 | 265-295 | -25~150 | high Tem. service |
| Darina EP2 | 250 | 265-295 | -25~150 |
| Dolium R2 | 250 | 265-295 | -35~150 | corrosion resistnat |
| Esso | Andok C | 260 | 190-210 | -30~120 | General purpose |
| Andok 260 | 190 | 204-260 | -40~120 |
| Beacon 325 | 190 | 255-280 | -54~120 | low Tem. service |
| Chevron | SRI-2 | 240 | 255-280 | -30~120 | water resistnat |
| Mobil | Moilux 2 | 190 | 265-290 | -10~110 | General purpose |
| Mobil 22 | 192 | 260-274 | -40~120 |
| Mobil 28 | 260 | 265-295 | -55~175 | wide range Tem. service |
| Mobil 48 | 260 | 240-270 | -60~170 | high Tem. service |
| Kluber | Isoflex LDS 18 | 190 | 255-280 | -50~110 | low Tem. service |
| Isoflex NBU 15 | 250 | 255-280 | -30~120 | General purpose |
| Kyodo Yushi | Multemp SRL | 185 | 225-245 | -40~145 | low torque service |
| Multemp PS2 | 190 | 250-275 | -50~110 | low Tem. service |
| Multemp ET150 | 260 | 255-280 | -10~160 | |
| China Hangu | Hangu 2 | 198 | 265-295 | -10~130 | low noise service |
