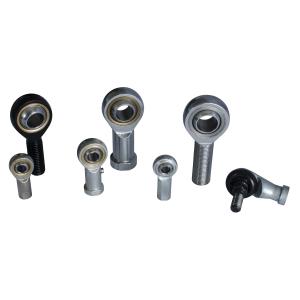

Carbon Steel Zinc Coated CF Series Spherical Rod End

    Buy cheap Carbon Steel Zinc Coated CF Series Spherical Rod End from wholesalers

    Buy cheap Carbon Steel Zinc Coated CF Series Spherical Rod End from wholesalers
    • Buy cheap Carbon Steel Zinc Coated CF Series Spherical Rod End from wholesalers
    • Buy cheap Carbon Steel Zinc Coated CF Series Spherical Rod End from wholesalers

    Carbon Steel Zinc Coated CF Series Spherical Rod End

    Ask Lasest Price
    Brand Name : SGC
    Model Number : CF Series
    Price : Get the latest price
    Payment Terms : D/P, L/C, T/T, Western Union
    Supply Ability : 200000PCS per month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    Carbon Steel Zinc Coated CF Series Spherical Rod End

    Two-Piece Carbon Steel Female Rod End with Carbon Steel Body Zinc Coated for Corrosion Resistance CF Series

    Metal-to-Metal Type-Inch


    Body: Carbon Steel Zinc Coated for Corrosion Resistance
    Ball: 52100 Bearing Steel Heat-Treated, Hard Chrome Plated, Precision Ground
    Liner: Metal-to-Metal, Optional PTFE Lined, Self-lubrication


    Applications:

    Low-load applications, such as alternator brackets, shifter rods, lift arm braces, throttle and clutch linkages, etc.


    Rod end bearings are used on the ends of cylinders or linkages to take up misalignment between two connected parts. Both male and female configurations are available and offer optional lubricator fittings. Two-piece and four-piece Commercial and precision spherical bearings are offered as well. Spherical bearings are design to handle high radial loads.
    The bearing's spherical outer housing minimizes friction and its a good solution to provide self lubrication



    Part Number

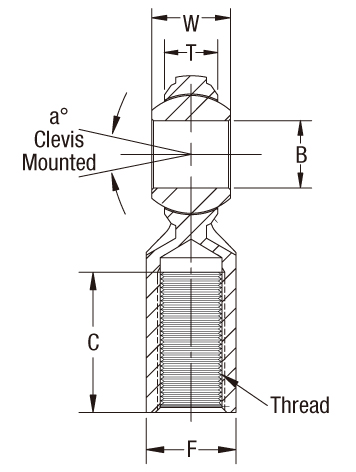

    Boundary Dimensions
    (inch)


    Thread

    UNF-2B


    Misalign Angle


    Radial

    Static Load
    (lbs)


    Net Weight
    (lbs)
    Left HandRight HandB
    +0.0025 -0.0005
    W
    ±0.005
    A
    ±0.015
    D Ref.E
    ±0.010
    F
    ±0.010
    Ball Dia. Ref.C
    +0.062 -0.031
    CFL2CFR20.1250.250.8120.50.3120.250.3120.4376-32 UNC2215100.02
    CFL3CFR30.190.3121.0620.6250.4060.3120.4370.510-322020790.04
     CFR3-40.190.3121.3120.750.4690.3750.4370.6871/4-282041970.05
    CFL4CFR40.250.3751.3120.750.4690.3750.50.6871/4-282741970.05
    CFL5CFR50.31250.4371.3750.8750.50.4370.6250.6875/16-242251100.08
     CFR5-60.31250.4371.62510.6870.5620.6250.8123/8-242263230.1
    CFL6CFR60.3750.51.62510.6870.5620.7190.8123/8-242263230.13
    CFL7CFR70.43750.5621.8121.1250.750.6250.8120.9377/16-202178970.18
    CFL8CFR80.50.6252.1251.3120.8750.750.9371.0621/2-2026100460.29
    CFL10CFR100.6250.752.51.510.8751.1251.3755/8-1826113850.43
    CFL12CFR120.750.8752.8751.751.12511.3121.5623/4-1624158940.65
    CFL3TCFR3T0.190.3121.0620.6250.4060.3120.4370.510-32209350.04
    CFL4TCFR4T0.250.3751.3120.750.4690.3750.50.6871/4-282718420.05
    CFL5TCFR5T0.31250.4371.3750.8750.50.4370.6250.6875/16-242232970.08
    CFL6TCFR6T0.3750.51.62510.6870.5620.7190.8123/8-242245520.13
    CFL7TCFR7T0.43750.5621.8121.1250.750.6250.8120.9377/16-202155270.18
    CFL8TCFR8T0.50.6252.1251.3120.8750.750.9371.0621/2-202087400.29
    CFL10TCFR10T0.6250.752.51.510.8751.1251.3755/8-182695630.43
    CFL12TCFR12T0.750.8752.8751.751.12511.3121.5623/4-1624136680.65
