Mini Refrigerator PCB SMT Assembly Control Board PCBA OEM

    Buy cheap Mini Refrigerator PCB SMT Assembly Control Board PCBA OEM from wholesalers

    Buy cheap Mini Refrigerator PCB SMT Assembly Control Board PCBA OEM from wholesalers
    • Buy cheap Mini Refrigerator PCB SMT Assembly Control Board PCBA OEM from wholesalers

    Mini Refrigerator PCB SMT Assembly Control Board PCBA OEM

    Ask Lasest Price
    Brand Name : JIETENG
    Model Number : Electrical circuit board
    Certification : ISO/TS16949/RoHS/TS16949
    Price : Negotiable
    Payment Terms : Negotiable
    Supply Ability : 100000 Piece/Pieces per Month
    Delivery Time : 5-10 days for delivery
    • Product Details
    • Company Profile

    Mini Refrigerator PCB SMT Assembly Control Board PCBA OEM

    Manufacturer direct sale mini refrigerator PCB circuit board main board control board PCBA electronic processing board


    Essential details
    Model Number:
    F-PCBA-033
    Type:
    bms pcba
    Place of Origin:
    Guangdong, China
    Brand Name:
    JIETENG
    Supplier Type:
    Custom/OEM
    Copper Thickness:
    1 oz
    Aspect ratio:
    8:1
    Max layer:
    16 layers
    Min. hole size:
    10mil
    Min. line width/space:
    0.1mm
    Max. Board size:
    59in*22in
    Hole position tolerance:
    +/-0.076mm
    Routing outline tolerance:
    +/-0.13mm
    Punching outline tolerance:
    +/-0.05mm
    Production
    40,000 s.q.m/month

    Specification:
    PCB layers:
    1-24layers
    PCB materials:
    CEM1, CEM3, Teflon, Rogers, FR-4, High Tg FR-4, Aluminum Base, Halogen Free
    PCB max. board size:
    620*1100mm (Custom)
    PCB certificate:
    RoHS Directive-Compliant
    PCB Thickness:
    1.6 ±0.1mm
    Out Layer Copper Thickness:
    0.5-5oz
    Inner Layer Copper Thickness:
    0.5-4oz
    PCB max. board thickness:
    6.0mm
    Minimum Hole Size:
    0.20mm
    Minimum Line Width/Space:
    3/3mil
    Min. S/M Pitch:
    0.1mm(4mil)
    Plate Thickness and Aperture Ratio :
    30:1
    Minimum Hole Copper:
    20µm
    Hole Dia. Tolerance(PTH):
    ±0.075mm(3mil)
    Hole dia. Tolerance(NPTH):
    ±0.05mm (2mil)
    Hole Position Deviation:
    ±0.05mm (2mil)
    Outline Tolerance:
    ±0.05mm (2mil)
    PCB solder mask:
    Black, white, yellow
    PCB surface finished:
    HASL Leadfree,Immersion ENIG,Chem Tin,Flash Gold,OSP,Gold finger,Peelable,Immersion Silver
    Legend:
    White
    E-test:
    100% AOI, X-ray, Flying probe test.
    Outline:
    Rout and Score/V-cut
    Inspection Standard:
    IPC-A-610CCLASSII
    Certificates:
    UL (E503048),ISO9001/ISO14001/IATF16949
    Outgoing Reports:
    Final Inspection, E-test, Solderability Test, Micro Section and More

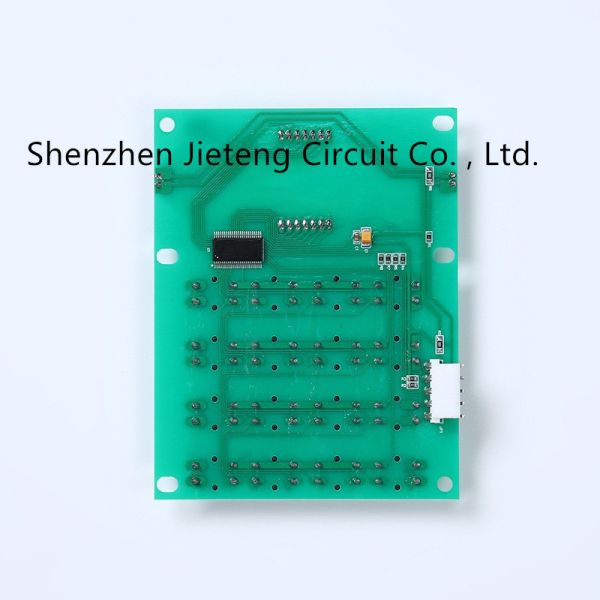

    Quality Mini Refrigerator PCB SMT Assembly Control Board PCBA OEM for sale
