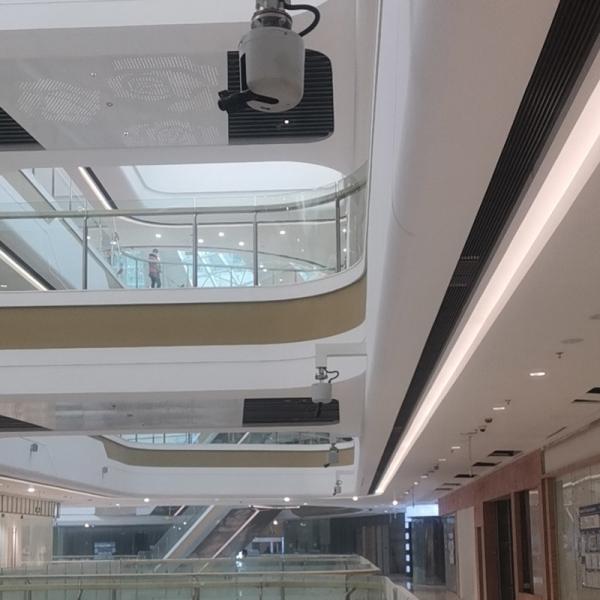

Popular Auto Fire Fighting Monitor System IR Sensor Remote Fire Monitor 5L/S

Popular automatic fire suppression system automatic fire fighting equipment for large space fire safety

Product Overview

INTELLIGENT FIRE MONITOR AUTOMATIC FIRE SPRINKLER SYSTEM

Our intelligent fire monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.

FEATURES AT A GLANCE

DIMENSION:480×360mm

NET WEIGHT:8.1KG

MODEL: ZDMS0.6/5S-LZ II

SENSOR:IR SENSOR

VOLTAGE:220V

COMMUNICATION METHOD:CAN

KEYWORD:INTELLIGENT FIRE MONITOR

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

No	Item	Standard &Requirements	Inspection results
1	Rated working pressure (MPa)	≤0.8	0.6	/
2	Rated flow (L / s)	5×(1±8%)	5.05	/
3	Maximum protection radius(m)	≥30	30	/
4	Jet radius (m)	≥34	34	/
5	Monitoring radius(m)	≥40	40	/
6	Positioning time(s)	≤30	29.5	29.9
7	Installation height (m)	6~15	6	15
8	Horizontal swing angle(°)	≥180	360
9	Minimum pitch profile(°)	-90~+30	-90~+30
10	Diameter of water-inlet(mm)	Φ 34.5 ± 0.5	Φ 34.5 ± 0.5
11	Diameter of water-outlet(mm)	Φ 15.5 ± 0.5	Φ 15.5 ± 0.5

PRODUCT CONFIGURATION

Control host

Electric control box

Field operation panel

SALES AND SERVICE NETWORK

Successful Project

Project in Malaysia

Project in Azerbaijan

Project in Singapore

FAQ

Q1:*****

A1:**

@linkzonefire

The most shocking test of Intelligent Fire Monitor|Fire-fighting Monitor in Zhengzhou Civic Center.Any interests please contact by: linkzonefire@

♬ original sound - Jackie Fan856

We are a National Standard high-tech firefighting equipment manufacturing Enterprise from China and we do technology researching,structural designing,production, sales and service all by ourself.We have the most advanced technology for automatic fire targeting technology.We are the member of China Fire Protection Association.We have obtained 23 utility model patents, 8 invention patents and 35 computer software copyright rights for our fire monitors.Our main product is automatic fire monitors which have been used in thousands of projects in China and overseas.We have small water cannons,large normal water cannons,large explosion proof water/foam cannon,large explosion proof and waterproofing water/foam cannon.Our products are very popular with the Chinese government.

Our products are widely used in Industrial,commercial and residential fields.Such as airport, high-speed railway station, bus station, power plants,industrial plants,chemical plant, warehouses,gas station, oil port,hotel atrium, museum,cinema, library, TV studio, gymnasium, science and technology museum, exhibition hall, convention center, theater, cinema, civic activity center, helicopter hangar,  logistics centers, hospitals, large shopping malls, commercial complexes, colleges and universities, coal mines and other places with large space.
